30mm Coreless BLDC Motor 448.9W 162.6N.m 26349RPM 24V 48V
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | PM3050C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | MoneyGram, Western Union, , T/T |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Electric Motor | Motor Diameter: | 30mm |
|---|---|---|---|
| Motor Body Length: | 50mm | Rated Voltage: | 24V, 48V Or Customized |
| No Load Speed: | 35730rpm Or Customized | Number Of Pole Pair Of Motor Rotor: | 1 |
| Bearing Type: | Silent Ball Bearing-low Current Type | Magnet Material: | NdfeB |
| Rated Output Power: | 448.9W | ||
| Highlight: | 26349RPM Coreless BLDC Motor,162.6N.m Coreless BLDC Motor,448.9W Coreless BLDC Motor |
||
Product Description

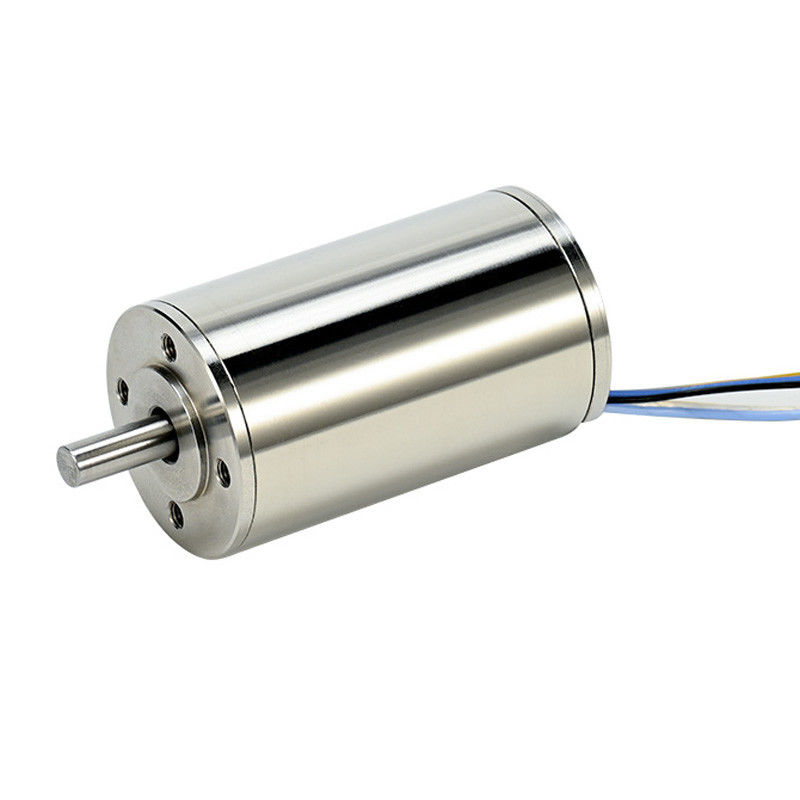

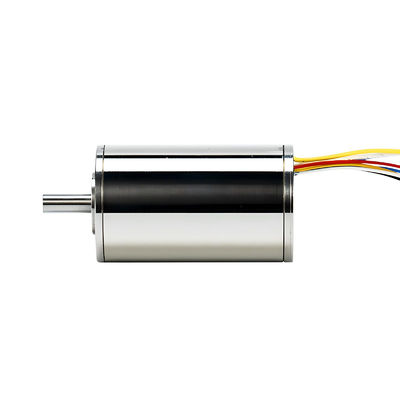

Model: PM3050C 30mm Coreless BLDC Motor 448.9W 162.6N.m 26349RPM 24V 48V
Typical Applications:
1. Aerospace and Defense Applications:
- Satellites and Spacecraft: Slotless brushless motors play a crucial role in performing diverse functions. For instance, they are employed in antenna pointing systems, enabling accurate orientation of antennas in space.
- Unmanned Aerial Vehicles (UAVs): These motors are frequently integrated into the propulsion systems of UAVs, facilitating efficient flight and maneuverability.
2. Medical Equipment:
- Surgical Robots: Slotless brushless motors are essential for controlling the movement of robotic arms in surgical robots. This allows for highly precise and delicate operations during surgeries.
- Diagnostic Equipment: In medical imaging devices such as MRI machines, slotless brushless motors are utilized in the motion control systems of components like the patient table. This ensures smooth and accurate positioning of patients during imaging procedures.
3. Industrial Automation:
- High-Precision Positioning Systems: In CNC (Computer Numerical Control) machines, slotless brushless motors are responsible for the precise movement of cutting tools or workpieces. This enables the production of high-quality parts with tight tolerances.
- Packaging Machinery: In packaging lines, these motors power conveyor belts, filling machines, and labeling machines. Their reliable performance ensures the efficient operation of the entire packaging process.
4. Robotics:
- Humanoid Robots: Slotless brushless motors are installed in the joints of humanoid robots to provide the necessary motion and flexibility. This allows the robots to mimic human movements more realistically.
- Service Robots: For service robots like cleaning robots or delivery robots, slotless brushless motors are used in the drive systems. They enable these robots to move around effectively and perform their tasks with ease.
Motor Technical Data:
| PM3050C Series | Unit | 001 | ||
| 1 | Rated Voltage | V | 24 | |
| 2 | Stall Torque | mNm | 613 | |
| 3 | Stall Current | A | 96 | |

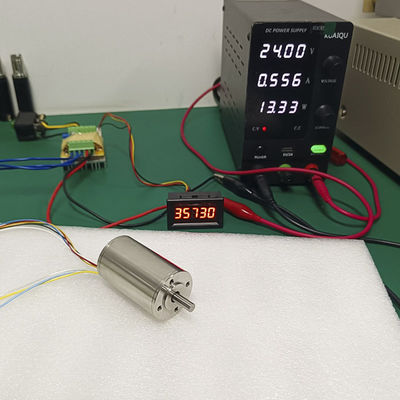

| 4 | No load speed | rpm | 35730 | |
| 5 | No load current | A | 0.552 | |
| 6 | Rated Speed | RPM | 26349 | |
| 7 | Rated Current | A | 25.84 | |
| 8 | Rated Torque | mNm | 162.65 | |
| 9 | Rated Output Power | W | 448.9 | |
| 10 | Efficiency at Rated Load | % | 72.5 | |
| 11 | Terminal resistance | Ohm | 0.25 | |
| 12 | Back –EMF Constant | mV/rpm | 0.669 | |
| 13 | Max Efficiency | % | 86.4 | |
| 14 | Torque coefficient | mNm/A | 6.39 | |
| 15 | Speed Constant | rpm/V | 1493 | |
| 16 | Max Power Output | W | 576 | |
| 17 | Angular velocity | rad/s | 3753 | |
| Additional information | ||
| ● | number of pole pairs of the rotor | 1 |
| ● | Number of phases | 3 |
| ● | Operating temperature range | -40℃... +150℃ |
| ● | Insulation calss | Class F |
| ● | Motor parameters and shaft size can be made according to the request of customer. | |
| ● | Options: gearbox | |
Motor Outline Drawing (mm)
