High Speed 22mm Slotless Brushless Motor 48V Coreless BLDC Motor 22W 13641rpm
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC22*48 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Slotless BLDC Motor | No Load Speed: | 13641rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 40W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | High Speed Slotless Brushless Motor,48V Slotless Brushless Motor,High Speed Coreless BLDC Motor |
||
Product Description
22mm Slotless BLDC Motor 12V to 48V Brushless Coreless Motor 12W 22W 13641rpm Customizable
Product Tag: 22mm Coreless Motor , 22mm Ironless Motor , 22mm Slotless Motor , 22mm Slotless Brushless Motor , 22mm Slotless BLDC Motor , 22mm Coreless Brushless Motor , 22mm Brushless Coreless Motor , 22mm Brushless Slotless Motor , 22mm Brushless Coreless Motor , 22mm Brushless Motor , 22mm Brushless DC Motor, 22mm DC Brushless Motor , 22mm Brushless Electric Motor , 22mm BLDC Motor , 22mm Brushless DC Electric Motor , 22mm Sensored Brushless Motor , 22mm Sensorless Brushless Motor
Discover our compact Ø 22mm Coreless Motor, designed for versatility! Available in both sensorless and sensored configurations, this motor can be fully customized to align with your specific needs and dimensions.
What sets the 22mm Ironless Motor apart is its innovative design that eliminates the traditional iron core, making it a standout choice.
This approach greatly enhances both efficiency and performance, perfect for a range of applications!
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 22mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

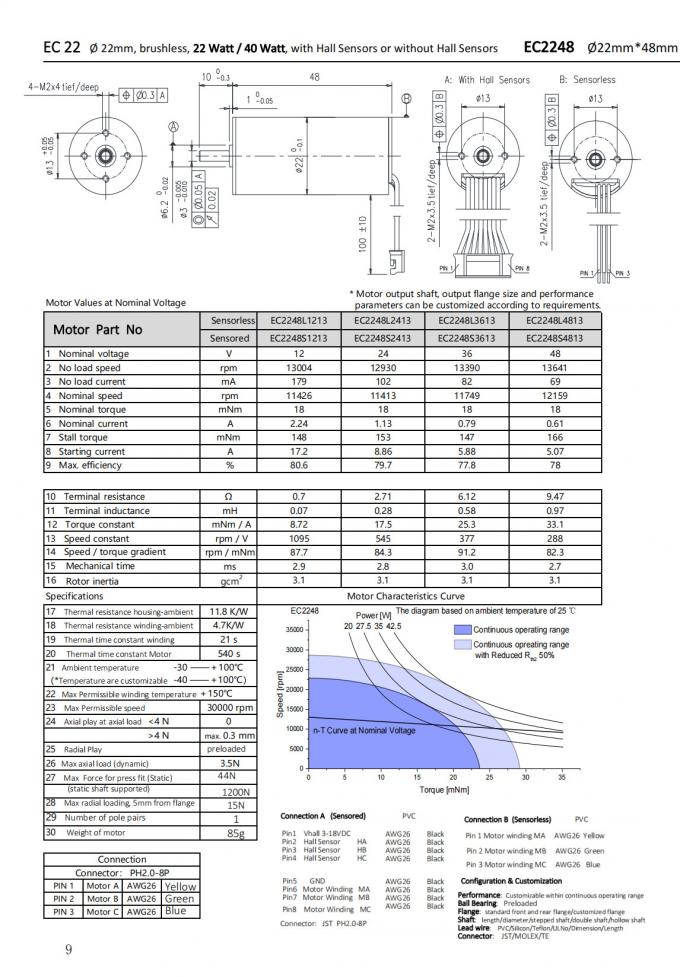

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
