Energy Saving 20mm Slotless BLDC Motor 12V 18880rpm Low Noise And Vibration
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC20*40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Slotless BLDC Motor | No Load Speed: | 18880rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 13W, 20W Or Customized | Rated Voltage: | 12V To 36V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | 20mm Slotless BLDC Motor,Low Noise Slotless BLDC Motor,Low Noise Brushless Coreless Motor |
||
Product Description
20mm Brushless Coreless Motor Slotless BLDC Motor 12V to 36V 13W 20W 18880rpm Customizable
Product Tag: 20mm Coreless Motor , 20mm Ironless Motor , 20mm Slotless Motor , 20mm Slotless Brushless Motor , 20mm Slotless BLDC Motor , 20mm Coreless Brushless Motor , 20mm Brushless Coreless Motor , 20mm Brushless Slotless Motor , 20mm Brushless Coreless Motor , 20mm Brushless Motor , 20mm Brushless DC Motor, 20mm DC Brushless Motor, 20mm Brushless Electric Motor , 20mm BLDC Motor , 20mm Brushless DC Electric Motor , 20mm Sensored Brushless Motor , 20mm Sensorless Brushless Motor

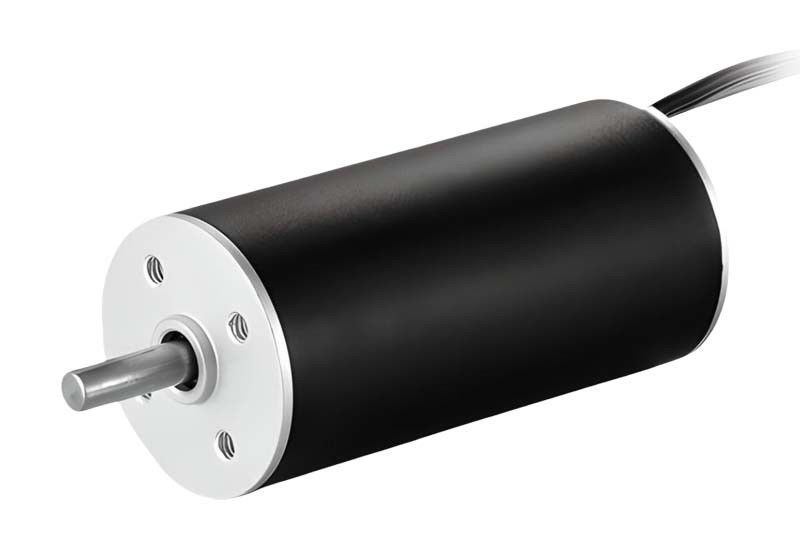

Introducing our compact Ø 20mm Slotless Brushless Motor, available in both sensorless and sensored configurations. Customization options are plentiful; we tailor the motor precisely to your specifications and dimensions.
Unlike traditional iron core brushless motors, this slotless brushless motor boasts a unique design without an iron core.
This innovative approach enhances efficiency and performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 20mm diameter Ironless brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please
Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
