24mm Coreless Brushless DC Motor 48V 40W 14150rpm Long Lasting High Capability
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC24*46 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Slotless Brushless Motor | No Load Speed: | 14150rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 40W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | 24mm Coreless Brushless DC Motor,Long Lasting Coreless Brushless DC Motor,Long Lasting Slotless BLDC Motor |
||
Product Description
24mm Coreless Brushless Motor 12V to 48V Slotless BLDC Motor 40W 14150rpm Customizable
Product Tag: 24mm Coreless Motor , 24mm Ironless Motor , 24mm Slotless Motor , 24mm Slotless Brushless Motor , 24mm Slotless BLDC Motor , 24mm Coreless Brushless Motor , 24mm Brushless Coreless Motor , 24mm Brushless Slotless Motor , 24mm Brushless Coreless Motor , 24mm Brushless Motor , 24mm Brushless DC Motor , 24mm DC Brushless Motor , 24mm Brushless Electric Motor , 24mm BLDC Motor , 24mm Brushless DC Electric Motor , 24mm Sensored Brushless Motor , 24mm Sensorless Brushless Motor

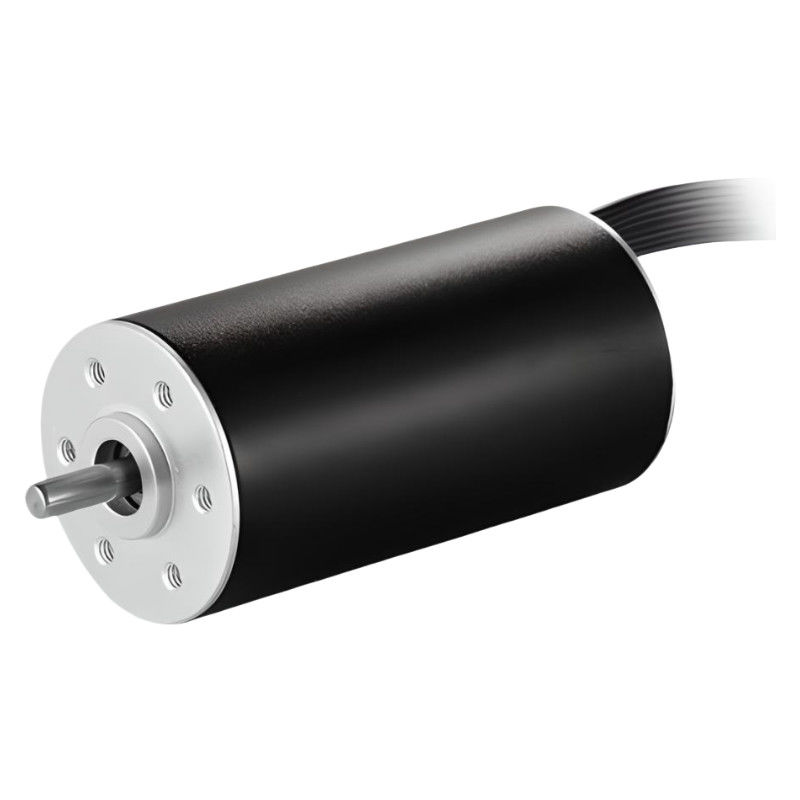

Discover our compact Ø 24mm Coreless Brushless Motor, perfect for a range of applications! Available in both sensorless and sensored versions, it offers extensive customization options tailored to your needs.
What makes this Brushless DC Electric Motor stand out is its innovative design that avoids the traditional iron core found in other motors.
This unique approach leads to significant improvements in efficiency and performance!
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 24mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

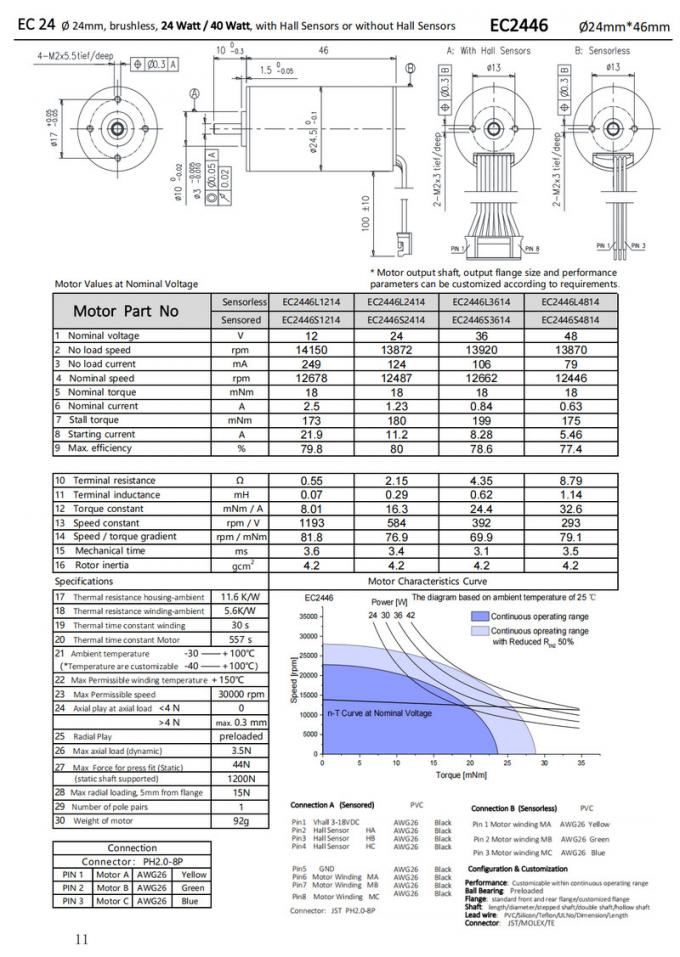

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
