Slotless Brushless DC Motor 22mm 48V 43W 16360rpm Customizable Energy Saving
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC22*60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Brushless Slotless Motor | No Load Speed: | 16360rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 43W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | Slotless Brushless DC Motor,Customizable Brushless DC Motor,Customizable Custom DC Motors |
||
Product Description
22mm Coreless Motor Slotless Brushless Motor 12V to 48V 43W 16360rpm Customizable
Product Tag: 22mm Coreless Motor , 22mm Ironless Motor , 22mm Slotless Motor , 22mm Slotless Brushless Motor , 22mm Slotless BLDC Motor , 22mm Coreless Brushless Motor , 22mm Brushless Coreless Motor , 22mm Brushless Slotless Motor , 22mm Brushless Coreless Motor , 22mm Brushless Motor , 22mm Brushless DC Motor, 22mm DC Brushless Motor , 22mm Brushless Electric Motor , 22mm BLDC Motor , 22mm Brushless DC Electric Motor , 22mm Sensored Brushless Motor , 22mm Sensorless Brushless Motor

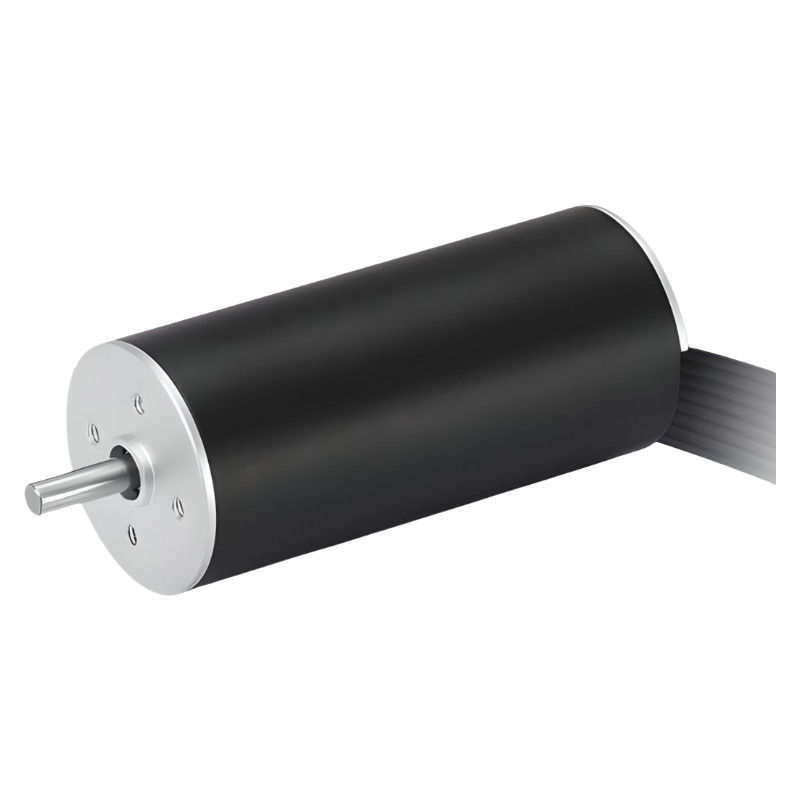

Presenting our Ø 22mm Coreless Motor, offered in both sensorless and sensored configurations. This compact motor provides extensive customization options, allowing us to tailor it precisely to your specifications.
This 22mm Ironless Motor stands apart from traditional iron core brushless motors by featuring a unique design without an iron core.
This advancement leads to improved efficiency and performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 22mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

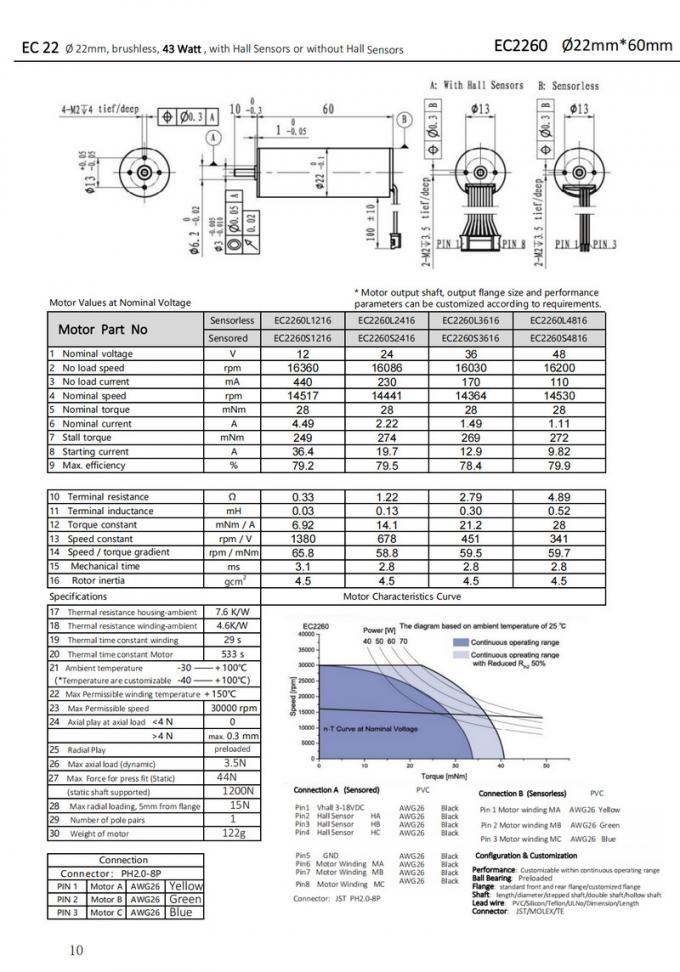

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
