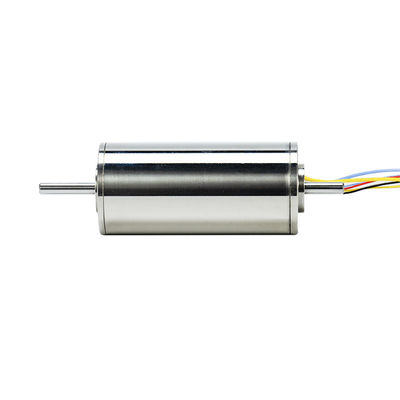

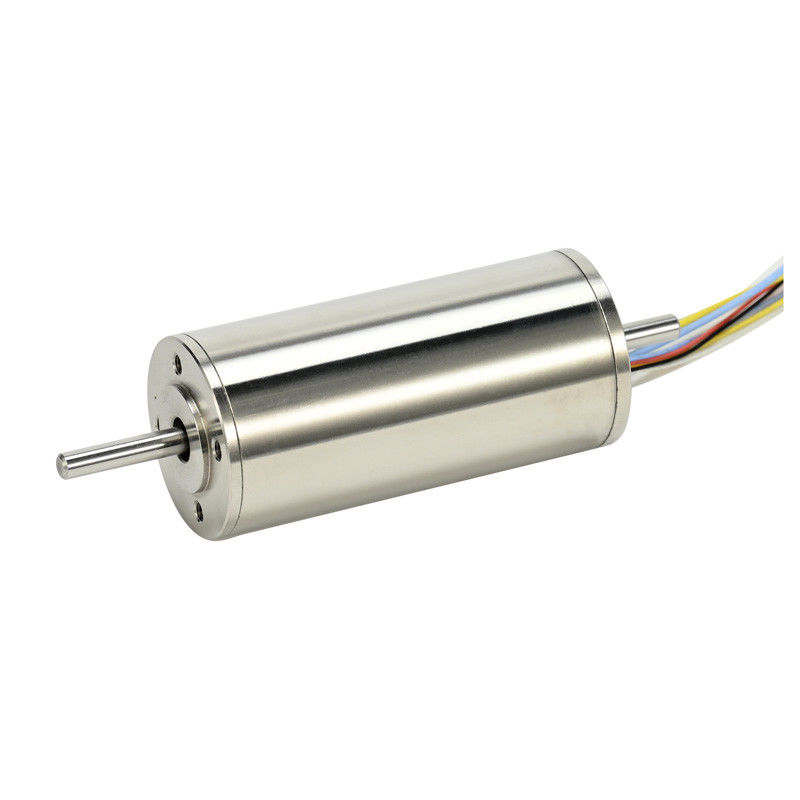

High Power 30mm Slotless Brushless DC Motor 105W 0.52N.m 7536RPM 24V 48V
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | PM3064C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | MoneyGram, Western Union, , T/T |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Zero Cogging Motor-Slotless BLDC Motor | Motor Diameter: | 30mm |
|---|---|---|---|
| Motor Body Length: | 64mm | Rated Voltage: | 24V, 48V Or Customized |
| No Load Speed: | 10116rpm Or Customized | Number Of Pole Pair Of Motor Rotor: | 1 |
| Bearing Type: | Silent Ball Bearing-low Current Type | Magnet Material: | NdfeB |
| Rated Output Power: | 105.8W | ||
| Highlight: | 7536RPM Slotless Brushless Motor,High Power Slotless Brushless Motor,0.52N.m Slotless Brushless Motor |
||
Product Description
Model: PM3064C High Power 30mm Slotless Brushless DC Motor 105W 0.52N.m
Typical Applications:
1. Aerospace and Defense:
- Satellites and Spacecraft- slotless brushless motors are used for various functions like antenna pointing systems.
- Unmanned Aerial Vehicles (UAVs)- slotless brushless motors are often used in the propulsion systems.
2. Medical Equipment:
- Surgical Robots- slotless brushless motors are used to control the movement of the robotic arms.
- Diagnostic Equipment: In medical imaging devices such as MRI machines, slotless brushless motors are used in the motion control systems for components like the patient table.
3. Industrial Automation:
- High-Precision Positioning Systems: In CNC (Computer Numerical Control) machines, slotless brushless motors are used for the precise movement of the cutting tools or workpieces.
- Packaging Machinery: In packaging lines, these motors are used to drive conveyor belts, filling machines, and labeling machines.
4. Robotics:
- Humanoid Robots: In humanoid robots, slotless brushless motors are used in the joints to provide the necessary movement.
- Service Robots: For service robots like cleaning robots or delivery robots, slotless brushless motors are used in the drive systems.
Motor Technical Data:
| PM3064C Series | Unit | 001 | ||
| 1 | Rated Voltage | V | 24 | |
| 2 | Stall Torque | mNm | 525 | |
| 3 | Stall Current | A | 23.2 | |
| 4 | No load speed | rpm | 10116 | |
| 5 | No load current | A | 0.214 | |
| 6 | Rated Speed | RPM | 7536 | |
| 7 | Rated Current | A | 6.07 | |
| 8 | Rated Torque | mNm | 134 | |
| 9 | Rated Output Power | W | 105.8 | |
| 10 | Efficiency at Rated Load | % | 72.5 | |
| 11 | Terminal resistance | Ohm | 1.03 | |
| 12 | Back –EMF Constant | mV/rpm | 2.37 | |
| 13 | Max Efficiency | % | 83.2 | |
| 14 | Torque coefficient | mNm/A | 22.64 | |
| 15 | Speed Constant | rpm/V | 421.5 | |
| 16 | Max Power Output | W | 139.3 | |
| 17 | Angular velocity | rad/s | 1059.2 | |
| Additional information | ||
| ● | number of pole pairs of the rotor | 1 |
| ● | Number of phases | 3 |
| ● | Operating temperature range | -40℃... +150℃ |
| ● | Insulation calss | Class F |
| ● | Motor parameters and shaft size can be made according to the request of customer. | |
| ● | Options: gearbox | |
Motor Outline Drawing (mm)
