Heat Dissipation Brushless Electric Motor 28mm 48v 46W 13786rpm Space Saving
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC28*45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Sensorless Brushless Motor | No Load Speed: | 13786rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 46W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | Heat Dissipation Brushless Electric Motor,Space Saving Brushless Electric Motor,Heat Dissipation Coreless Brushless Motor |
||
Product Description

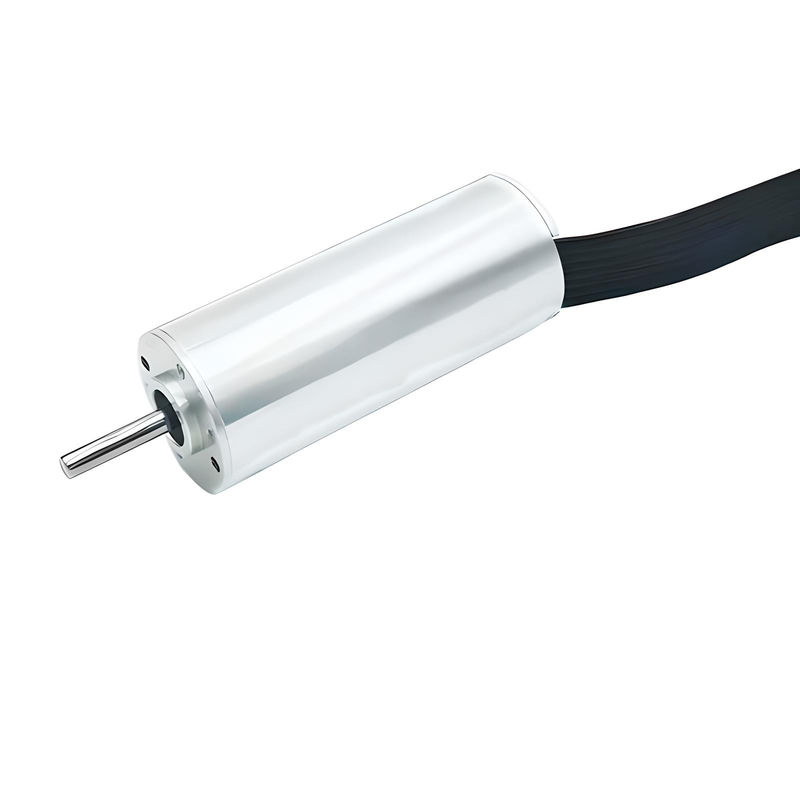

28mm Brushless DC Electric Motor 12v to 48v Coreless Motor 46W 13786rpm Customizable
Product Tag: 28mm Coreless Motor , 28mm Ironless Motor , 28mm Slotless Motor , 28mm Slotless Brushless Motor , 28mm Slotless BLDC Motor , 28mm Coreless Brushless Motor , 28mm Brushless Coreless Motor , 28mm Brushless Slotless Motor , 28mm Brushless Coreless Motor , 28mm Brushless Motor , 28mm Brushless DC Motor , 28mm DC Brushless Motor , 28mm Brushless Electric Motor , 28mm BLDC Motor , 28mm Brushless DC Electric Motor , 28mm Sensored Brushless Motor , 28mm Sensorless Brushless Motor
Introducing our Ø 28mm DC Brushless Motor, designed in a compact form and available in both sensorless and sensored variants. We provide a variety of customization choices to meet your exact specifications.
Differing from standard iron core brushless motors, this Coreless Brushless Motor utilizes a special design that lacks an iron core.
This cutting-edge approach improves both efficiency and performance levels.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 28mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please
Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
