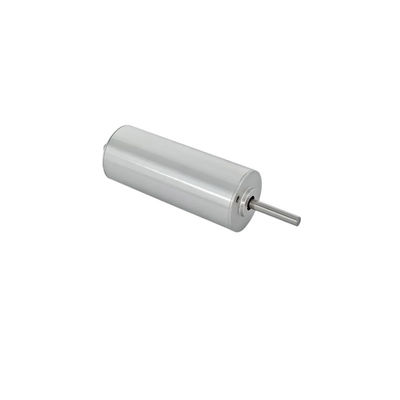

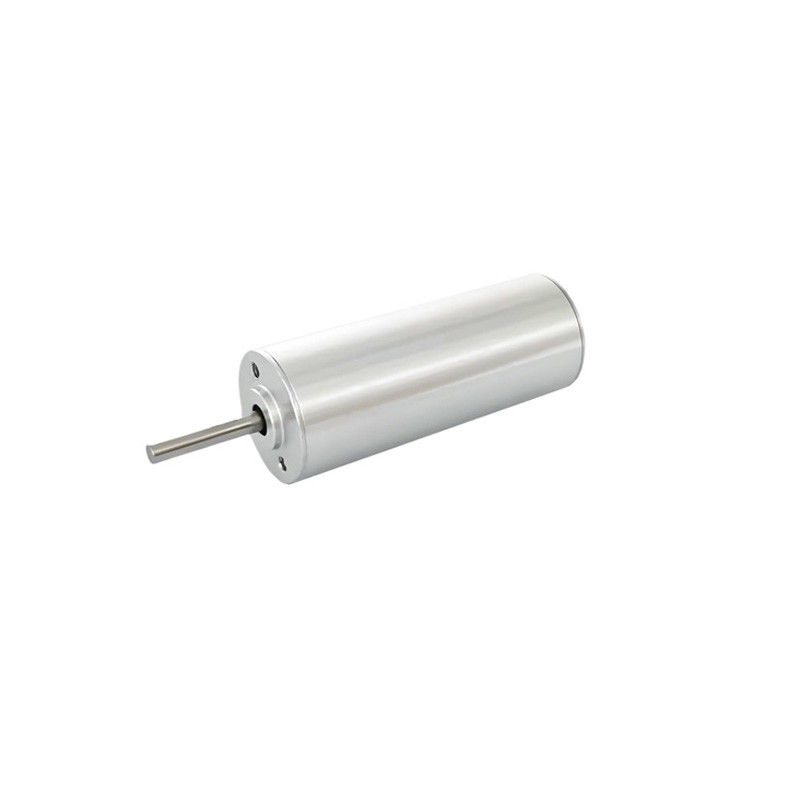

12mm Sensored Brushless Motor Electric Micromotor 6.5W 25310rpm Customizable for Medical Pumps
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC12*30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | BLDC Motor | No Load Speed: | 24930RPM-25310rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 6.5W Or Customized | Rated Voltage: | 6V To 12 V DC Or Customized |
| Applicaiton Field: | Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | 12mm Brushless Motor,6.5W Brushless Motor,25310rpm Brushless Motor |
||
Product Description
12mm Sensored Brushless Motor Electric Micromotor 6.5W 25310rpm Customizable for Medical Pumps
Product Tag: 12mm Coreless Motor , 12mm Ironless Motor , 12mm Slotless Motor , 12mm Slotless Brushless Motor , 12mm Slotless BLDC Motor , 12mm Coreless Brushless Motor , 12mm Brushless Coreless Motor , 12mm Brushless Slotless Motor , 12mm Brushless Coreless Motor , 12mm Brushless Motor , 12mm Brushless DC Motor, 12mm DC Brushless Motor, 12mm Brushless Electric Motor , 12mm BLDC Motor , 12mm Brushless DC Electric Motor , 12mm Sensored Brushless Motor , 12mm Sensorless Brushless Motor
Introducing our sleek 12mm diameter Brushless DC Motor with Coreless Windings, offered in both sensorless and sensored options. We provide extensive customization to ensure the motor aligns perfectly with your specific requirements and dimensions.
Unlike standard iron core brushless motors, this Slotless Type BLDC Motor features a unique construction that does not include an iron core.
This cutting-edge design enhances both efficiency and performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 12mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps and robotic prosthetic fingers.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Coreless Brushless Motor Φ12-40mm , please
Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
