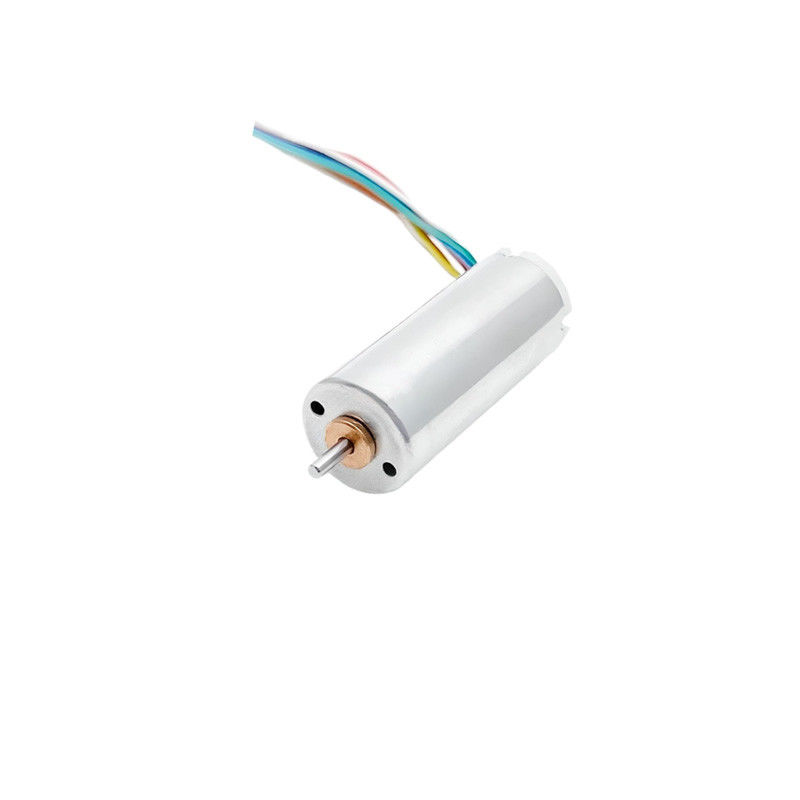

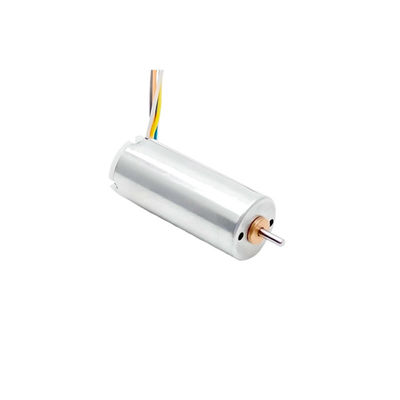

12mm Slotless Brushless Motor Sensored Micromotor 6.5W 25310rpm Customizable for Medical Pumps
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC12*30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Brushless Motor | No Load Speed: | 24930RPM-25310rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 6.5W Or Customized | Rated Voltage: | 6V To 12 V DC Or Customized |
| Applicaiton Field: | Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | Micromotor Slotless Brushless Motor,25310rpm Slotless Brushless Motor |
||
Product Description
12mm Slotless Brushless Motor Sensored Micromotor 6.5W 25310rpm Customizable for Medical Pumps
Product Tag: 12mm Coreless Motor , 12mm Ironless Motor , 12mm Slotless Motor , 12mm Slotless Brushless Motor , 12mm Slotless BLDC Motor , 12mm Coreless Brushless Motor , 12mm Brushless Coreless Motor , 12mm Brushless Slotless Motor , 12mm Brushless Coreless Motor , 12mm Brushless Motor , 12mm Brushless DC Motor, 12mm DC Brushless Motor, 12mm Brushless Electric Motor , 12mm BLDC Motor , 12mm Brushless DC Electric Motor , 12mm Sensored Brushless Motor , 12mm Sensorless Brushless Motor
Presenting our compact Brushless DC Motor with a diameter of 12mm and Coreless Windings, available in sensorless and sensored configurations. We offer a wide range of customization options, allowing us to tailor the motor to your precise specifications and dimensions.
This Slotless Type BLDC Motor stands out from traditional iron core brushless motors by featuring a unique design that eliminates the iron core.
This innovative approach leads to improved efficiency and performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 12mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps and robotic prosthetic fingers.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Coreless Brushless Motor Φ12-40mm , please
Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
