16mm DC Brushless Motor Sensored Brushless Motor 24V 10W 20W 18900rpm Customizable
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC16*36 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Motor | No Load Speed: | 18900rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 10W, 20W Or Customized | Rated Voltage: | 6V To 24 V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | 10W Brushless Motor,16mm Brushless Motor,24V Brushless Motor |
||
Product Description
16mm DC Brushless Motor Sensored Brushless Motor 24V 10W 20W 18900rpm Customizable
Product Tag: 16mm Coreless Motor , 16mm Ironless Motor , 16mm Slotless Motor , 16mm Slotless Brushless Motor , 16mm Slotless BLDC Motor , 16mm Coreless Brushless Motor , 16mm Brushless Coreless Motor , 16mm Brushless Slotless Motor , 16mm Coreless Brushless Motor , 16mm Brushless Motor , 16mm Brushless DC Motor, 16mm DC Brushless Motor, 16mm Brushless Electric Motor , 16mm BLDC Motor , 16mm Brushless DC Electric Motor , 16mm Sensored Brushless Motor , 16mm Sensorless Brushless Motor

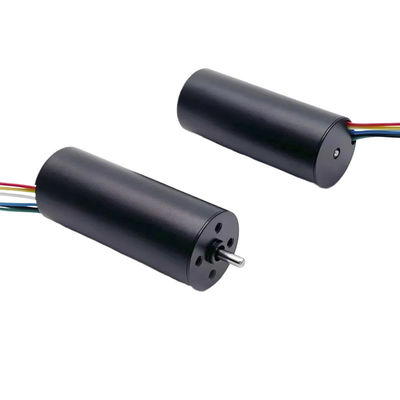

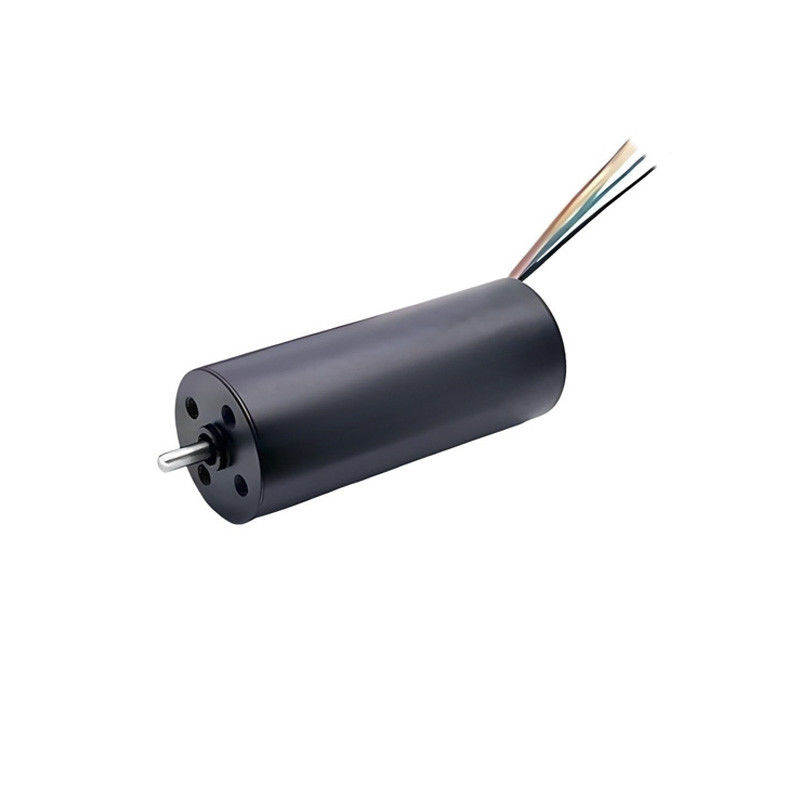

Introducing our compact Ø 16mm Coreless Brushless Motor, offered in both sensorless and sensored versions. With extensive customization options, we can adapt the motor to your specific requirements and dimensions.
This 16mm Brushless Slotless Motor features a distinctive design that eliminates the iron core, unlike traditional iron core brushless motors.
This innovative design enhances both efficiency and performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 16mm Ironless Motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please
Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
