24mm Ironless DC Motor 12V 40W 14150rpm Customizable for Portable Electronics
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC24*46 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | BLDC Motor | No Load Speed: | 14150rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 40W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | 24mm Ironless DC Motor,Portable Electronics Ironless DC Motor,Portable Electronics Custom DC Motors |
||
Product Description

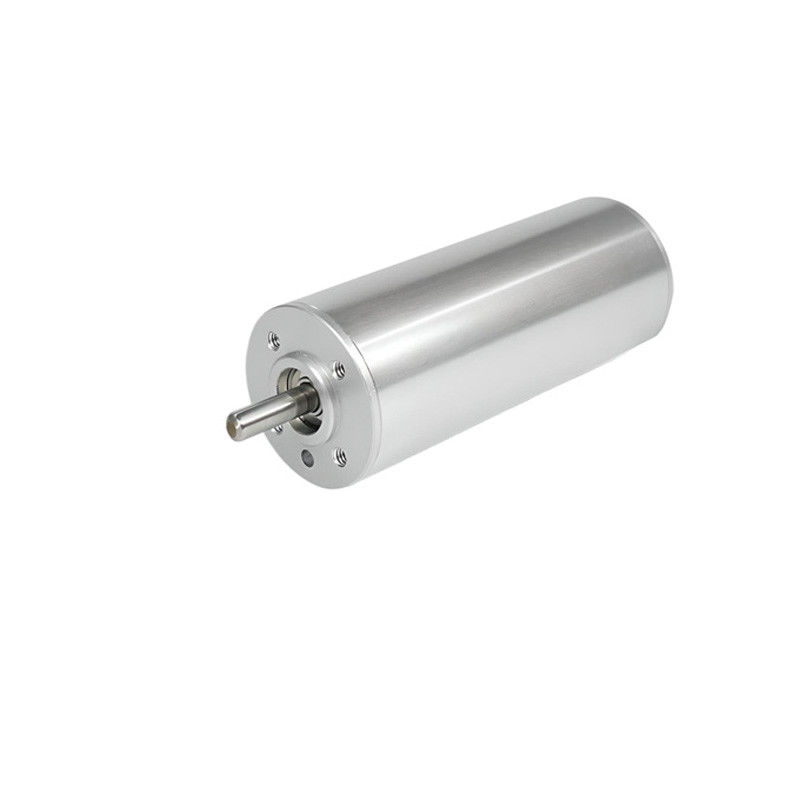

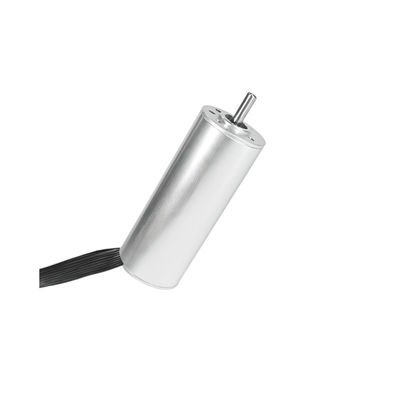

24mm Ironless Motor 12V to 48V Slotless Brushless Motor 40W 14150rpm Customizable
Product Tag: 24mm Coreless Motor , 24mm Ironless Motor , 24mm Slotless Motor , 24mm Slotless Brushless Motor , 24mm Slotless BLDC Motor , 24mm Coreless Brushless Motor , 24mm Brushless Coreless Motor , 24mm Brushless Slotless Motor , 24mm Brushless Coreless Motor , 24mm Brushless Motor , 24mm Brushless DC Motor , 24mm DC Brushless Motor , 24mm Brushless Electric Motor , 24mm BLDC Motor , 24mm Brushless DC Electric Motor , 24mm Sensored Brushless Motor , 24mm Sensorless Brushless Motor
Introducing our sleek Ø 24mm Coreless Brushless Motor! You can choose from sensorless or sensored versions, and we offer plenty of customization to make sure it fits your needs perfectly.
What sets this Brushless DC Electric Motor apart from traditional iron core models is its unique iron-free design.
This means you’ll get improved efficiency and performance!
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 24mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please
Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
