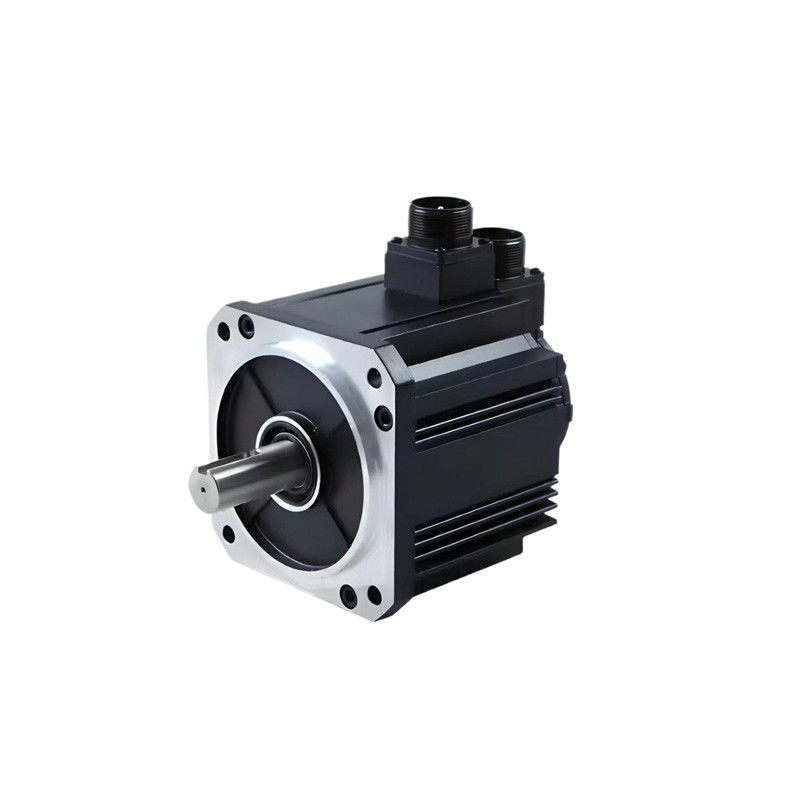

Stable Operation Brushless Servo Motor 1200W 7.2N.M 110mm AC Servo Motor

Flange 110mm Servomotor with encoder 1200W 1500W 1800W 2000W 2500W 7.2N.m Custom brushless servo motors

Product Tag: 110mm Servo Motor , 110mm Servomotor , 110mm AC Servo Motor , 750W Servo Motor, 1000W Servo Motor , 1200W Servo Motor , 1300W Servo Motor , 1500W Servo Motor , 1800W Servo Motor , 2000W Servo Motor , 2500W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

• Special Slot Design: This motor is engineered with an exceptionally low mutual inductance, effectively approaching zero.
• Optimized Heat Dissipation: The advanced thermal management system allows for rapid heat dissipation and a uniform temperature profile.
• Structural Optimization: The motor's architecture is meticulously designed for enhanced performance, boosting both durability and reliability.
• Special Core Design: It operates with minimal noise, vibration, and torque ripple, ensuring a smooth operational experience.
• High Slot Fill Factor: Featuring a larger wire diameter, this motor achieves lower resistance and generates 20% less heat, thanks to its higher slot fill factor.
• Open-Ended Shaft Design: This innovative design accommodates various encoders, expanding customization options for users.
• Optimized Permanent Magnet Design: Advanced rare-earth magnets with high intrinsic coercivity provide robust resistance to demagnetization.
• High-Resolution Encoder: Equipped with a high-resolution encoder, the motor improves positional accuracy by 64 times.
• Advanced Manufacturing Techniques: Proudly manufactured in Japan, this motor ensures exceptional reliability, stability, and consistent performance.
• High-Performance Core: The core is designed for high magnetic load and minimal iron loss, achieving a compact and lightweight form with over 20% size reduction.
• New Magnetic Field Analysis Technology: Featuring a ten-level optimized rotor design, this motor significantly enhances output and supports overloads of 3 to 4 times.
• Supporting Customization: Available in diameters from 40 mm to 180 mm, our Brushless Servo Motors are highly versatile, with customization options to suit various specifications.

Applications of Brushless Servo Motors:

Industrial Automation:

• Robotics (robot arms, pick and place)
• CNC machines
• Assembly lines

Aerospace:

• Flight control systems
• Positioning systems for aircraft

Automotive:

• Power steering systems
• Electric throttle control
• Automatic transmission systems

Consumer Electronics:

• Printers (particularly 3D printers)
• Cameras (autofocus and image stabilization)
• Drones (control of flight dynamics)

Medical Equipment:

• Surgical robots
• MRI machines
• Prosthetic devices

HVAC Systems:

• Control of dampers and valves for heating and air conditioning systems

Textile Industry:

• Sewing machines
• Weaving and knitting machines

Entertainment:

• Animatronics and robotics in films
• Motion control in stage shows

Telecommunications:

• Antenna position control
• Fiber optic alignment systems

Food and Beverage:

• Automated packaging machines
• Food processing equipment

Key Specifications for this Flange Ø110mm Brushless Servo Motor :

• Motor Flange: 111mm
• Rated Voltage:  48V to 220V or customized
• Rated Torque:  3.8N.m to 7.2N.m or customized or Customized
• Rated Speed:  3000rpm or Customized
• Rated Power: 1200W to 1800W or Customized
• Brake or without brake

Remark:

• We offer design and production services for customized servo motors (OEM & ODM).

To see the product catalogue on our Brushless Servo Motors  Φ40-180 mm , please

                         Check Here and download.
