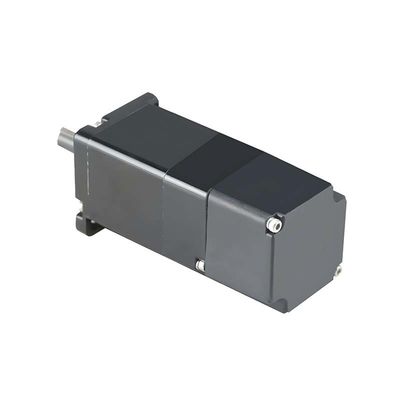

• Flange 40mm Brushless AC Servo Motor With Encoder Feedback 50W 0.3N.M 3000rpm

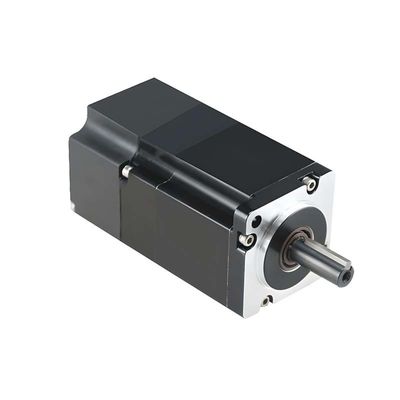

  • Flange 40mm Brushless AC Servo Motor With Encoder Feedback 50W 0.3N.M 3000rpm

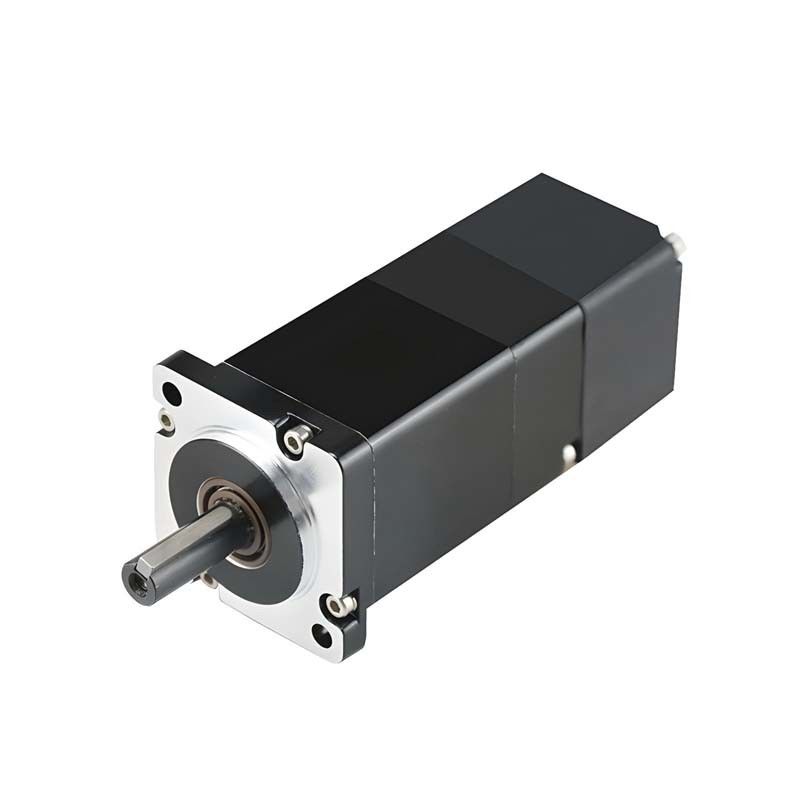

  • Flange 40mm Brushless AC Servo Motor With Encoder Feedback 50W 0.3N.M 3000rpm

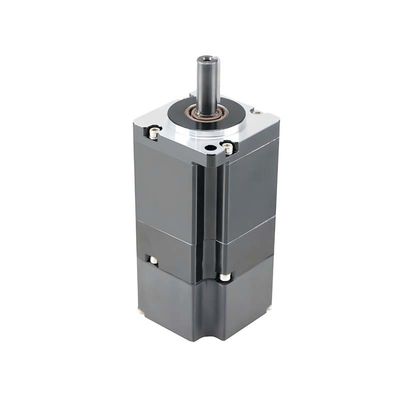

  • Flange 40mm Brushless AC Servo Motor With Encoder Feedback 50W 0.3N.M 3000rpm
Flange 40mm Brushless AC Servo Motor With Encoder Feedback 50W 0.3N.M 3000rpm

Flange 40mm Brushless AC Servo Motor With Encoder Feedback 50W 0.3N.M 3000rpm

Product Details:

Place of Origin: China
Brand Name: PM
Certification: REACH & CE
Model Number: PM7-M04

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: strong export carton box outside,Poly foam inside
Delivery Time: 20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50000PCS per Month
Get Best Price Contact Now

Detail Information

Product Type: Brushless Servo Motor Rated Speed: 3000rpm Or Customized
Rated Torque: 0.2N.m To 0.3 N.m Or Customized Rated Voltage: 24V 48V 220V Or Customized
Applicaiton Field: Robotics, CNC Machines, Assembly Lines, 3D Printers, Cameras, Drones, Textile Industry, Automated Packaging Machines, Food Processing Equipment, Antenna Position Control Warranty: 3 Years
Highlight:

40mm Brushless AC Servo Motor

,

Encoder Feedback Brushless AC Servo Motor

,

Encoder Feedback Brushless Servo Driver

Product Description

Flange 40mm Servo Motor with Encoder Feedback 50W 100W 200W 0.3N.m 3000rpm Customizable

Product Tag:  40mm Servo Motor , 40mm Servomotor , 40mm AC Servo Motor , 50W Servo Motor , 100W Servo Motor , 200W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

  • Special Slot Design: The motor has an exceptionally low mutual inductance, effectively close to zero.
  • Optimized Heat Dissipation: The motor features enhanced thermal management, allowing for faster heat dissipation and a more uniform temperature distribution.
  • Structural Optimization: The motor's structure is designed for robust performance, increasing durability and reliability.
  • Special Core Design: The motor operates with low noise, low vibration, and minimal torque ripple, resulting in smoother operation.
  • High Slot Fill Factor: With a larger wire diameter, the motor has lower resistance and generates 20% less heat due to a higher slot fill factor.
  • Open-Ended Shaft Design: This design allows for the installation of various encoders, providing customers with more options.
  • Optimized Permanent Magnet Design: Utilizing advanced rare-earth permanent magnet materials with exceptionally high intrinsic coercivity, the motor exhibits strong demagnetization resistance.
  • High-Resolution Encoder: Equipped with a high-resolution encoder that increases resolution by 64 times, the motor achieves higher and more precise positioning.
  • Advanced Manufacturing Techniques: Manufactured in Japan using cutting-edge technology, the motor boasts high reliability, stability, and consistent performance.
  • High-Performance Core: The core is designed for high magnetic load, minimal iron loss, and is compact and lightweight, with a size reduction of over 20%.
  • New Magnetic Field Analysis Technology: The motor features a ten-level optimized rotor design, delivering significantly increased output and an overload capacity of 3 to 4 times.
  • Supporting Customization: Covering diameters ranging from 40 mm to 180 mm, our Brushless Servo Motors offer versatility, we readily accommodate customization for varying dimensions and specifications.



Applications of Brushless Servo Motors:

Industrial Automation:

  • Robotics (robot arms, pick and place)
  • CNC machines
  • Assembly lines



Aerospace:

  • Flight control systems
  • Positioning systems for aircraft



Automotive:

  • Power steering systems
  • Electric throttle control
  • Automatic transmission systems



Consumer Electronics:

  • Printers (particularly 3D printers)
  • Cameras (autofocus and image stabilization)
  • Drones (control of flight dynamics)



Medical Equipment:

  • Surgical robots
  • MRI machines
  • Prosthetic devices



HVAC Systems:

  • Control of dampers and valves for heating and air conditioning systems



Textile Industry:

  • Sewing machines
  • Weaving and knitting machines



Entertainment:

  • Animatronics and robotics in films
  • Motion control in stage shows



Telecommunications:

  • Antenna position control
  • Fiber optic alignment systems



Food and Beverage:

  • Automated packaging machines
  • Food processing equipment



Key Specifications for this Flange Ø 40mm Brushless Servo Motor :

  • Motor Flange: 42.5 mm
  • Rated Voltage: 24V DC to 48V  to 220V or customized
  • Rated Torque:  0.2N.m to 0.3N.m or Customized
  • Rated Speed:  3000rpm or Customized
  • Rated Power: 50W to 200W or Customized
  • Brake or without brake

Remark:

  • We offer design and production services for customized servo motors (OEM & ODM).



To see the product catalogue on our Brushless Servo Motors  Φ40-180 mm , please



                                     Check Here and download.
