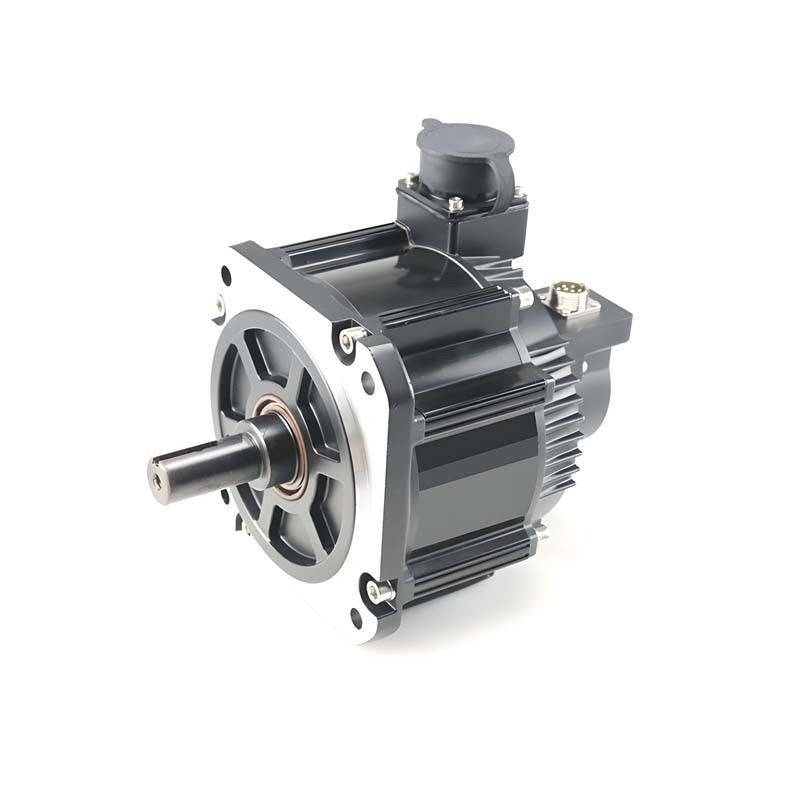

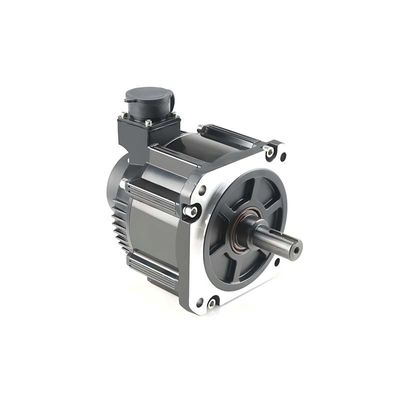

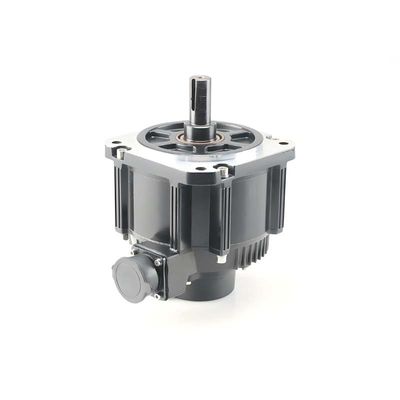

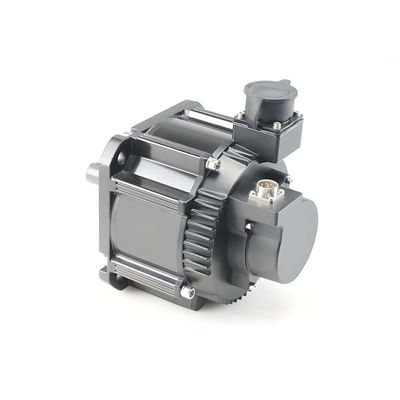

• High Density 130mm Servo Motor Flange 2500W 24.2N.M 3000rpm Energy Saving
  • High Density 130mm Servo Motor Flange 2500W 24.2N.M 3000rpm Energy Saving
  • High Density 130mm Servo Motor Flange 2500W 24.2N.M 3000rpm Energy Saving
  • High Density 130mm Servo Motor Flange 2500W 24.2N.M 3000rpm Energy Saving
High Density 130mm Servo Motor Flange 2500W 24.2N.M 3000rpm Energy Saving

High Density 130mm Servo Motor Flange 2500W 24.2N.M 3000rpm Energy Saving

Product Details:

Place of Origin: China
Brand Name: PM
Certification: REACH & CE
Model Number: PM7-M13

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: strong export carton box outside,Poly foam inside
Delivery Time: 20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50000PCS per Month
Get Best Price Contact Now

Detail Information

Product Type: Brushless Servo Motor Rated Speed: 3000rpm Or Customized
Rated Torque: 2.7N.m To 24.2N.m Or Customized Rated Voltage: 48V To 220V Or Customized
Applicaiton Field: Robotics, CNC Machines, Assembly Lines, 3D Printers, Cameras, Drones, Textile Industry, Automated Packaging Machines, Food Processing Equipment, Antenna Position Control Warranty: 3 Years
Highlight:

High Density130mm Servo Motor

,

Energy Saving 130mm Servo Motor

,

High Density Brushless Servo Driver

Product Description

Flange 130mm Servo Motor high density Servomotor 2500W 3000W 3800W 24.2N.m 3000rpm

Product Tag:  130mm Servo Motor , 130mm Servomotor , 130mm AC Servo Motor , 1200W Servo Motor , 1300W Servo Motor , 1500W Servo Motor , 1800W Servo Motor , 2000W Servo Motor , 2500W Servo Motor , 3000W Servo Motor , 3800W Servo Motor



The Brushless Servo Motors from Panda Electronics feature the following characteristics:

  • Special Slot Design: This motor exhibits an extremely low mutual inductance, approaching zero.
  • Optimized Heat Dissipation: Enhanced thermal management allows for rapid heat dissipation and uniform temperature distribution.
  • Structural Optimization: The design ensures robust performance, contributing to increased durability and reliability.
  • Special Core Design: Low noise, low vibration, and minimal torque ripple result in smooth operation.
  • High Slot Fill Factor: A larger wire diameter decreases resistance and generates 20% less heat due to a higher slot fill factor.
  • Open-Ended Shaft Design: This feature facilitates the installation of various encoders, offering greater flexibility.
  • Optimized Permanent Magnet Design: Advanced rare-earth permanent magnets with high intrinsic coercivity enhance demagnetization resistance.
  • High-Resolution Encoder: A high-resolution encoder increases positioning precision by 64 times.
  • Advanced Manufacturing Techniques: Manufactured in Japan, this motor promises high reliability, stability, and consistent performance.
  • High-Performance Core: Designed for high magnetic load and minimal iron loss, this core is compact and lightweight, achieving over 20% size reduction.
  • New Magnetic Field Analysis Technology: A ten-level optimized rotor design significantly boosts output and provides 3 to 4 times overload capacity.
  • Supporting Customization: Our Brushless Servo Motors range from 40 mm to 180 mm in diameter, with customization readily available for diverse specifications.



Applications of Brushless Servo Motors:

Industrial Automation:

  • Robotics (robot arms, pick and place)
  • CNC machines
  • Assembly lines



Aerospace:

  • Flight control systems
  • Positioning systems for aircraft



Automotive:

  • Power steering systems
  • Electric throttle control
  • Automatic transmission systems



Consumer Electronics:

  • Printers (particularly 3D printers)
  • Cameras (autofocus and image stabilization)
  • Drones (control of flight dynamics)



Medical Equipment:

  • Surgical robots
  • MRI machines
  • Prosthetic devices



HVAC Systems:

  • Control of dampers and valves for heating and air conditioning systems



Textile Industry:

  • Sewing machines
  • Weaving and knitting machines



Entertainment:

  • Animatronics and robotics in films
  • Motion control in stage shows



Telecommunications:

  • Antenna position control
  • Fiber optic alignment systems



Food and Beverage:

  • Automated packaging machines
  • Food processing equipment



Key Specifications for this Flange Ø130mm Brushless Servo Motor :

  • Motor Flange: 131mm
  • Rated Voltage: 48V DC to 220V or 48V to 380V or customized
  • Rated Torque:  2.7N.m to 24.2N.m or Customized
  • Rated Speed:  3000rpm or Customized
  • Rated Power: 850W to 3800W or Customized
  • Brake or without brake

Remark:

  • We offer design and production services for customized servo motors (OEM & ODM).



To see the product catalogue on our Brushless Servo Motors  Φ40-180 mm , please



                         Check Here and download.
