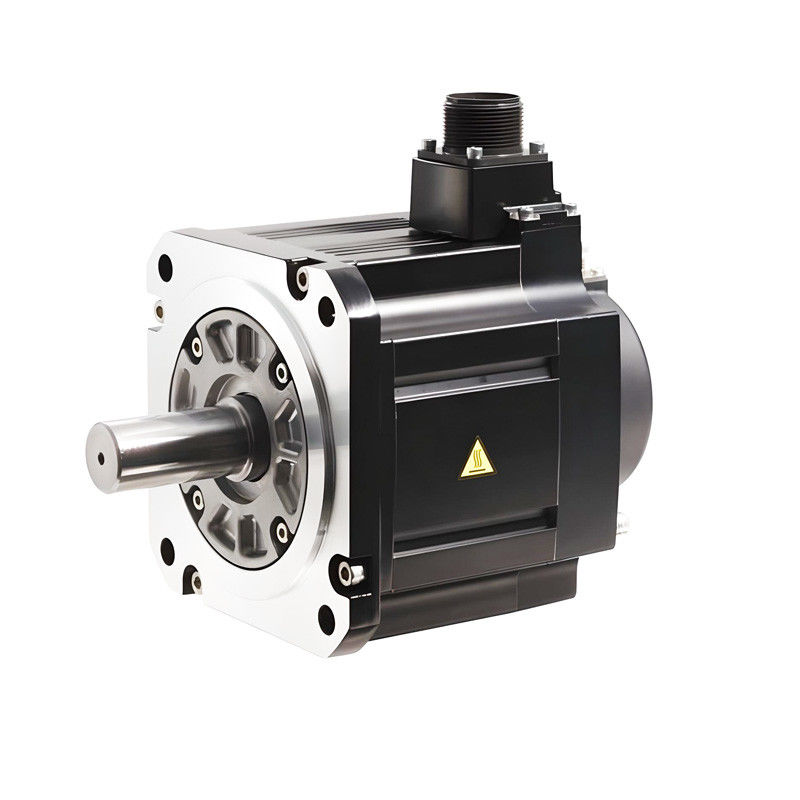

180mm Brushless Servo Motor Flange Custom Encoder Servo Motor 5500W 48N.M 1500rpm
Product Details:
Place of Origin: | China |
Brand Name: | PM |
Certification: | REACH & CE |
Model Number: | PM7-M18 |
Payment & Shipping Terms:
Minimum Order Quantity: | 5 Pieces |
---|---|
Price: | Negotiable |
Packaging Details: | strong export carton box outside,Poly foam inside |
Delivery Time: | 20 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 50000PCS per Month |
Detail Information |
|||
Product Type: | AC/DC Encoder Servo Motor | Rated Speed: | 1500rpm Or Customized |
---|---|---|---|
Rated Torque: | 18.5N.m To 48N.m Or Customized | Rated Voltage: | 48V To 380V Or Customized |
Applicaiton Field: | Robotics, CNC Machines, Assembly Lines, 3D Printers, Cameras, Drones, Textile Industry, Automated Packaging Machines, Food Processing Equipment, Antenna Position Control | Warranty: | 3 Years |
Highlight: | 180mm Brushless Servo Motor,Custom Brushless Servo Motor,Custom Encoder Servo Motor |
Product Description
Flange 180mm Brushless Servo Motors Customizable encoder Servomotor 4000W 5500W 7500W 48N.m 1500rpm
Product Tag: 180mm Servo Motor , 180mm Servomotor , 180mm AC Servo Motor , 4000W Servo Motor , 4400W Servo Motor , 5000W Servo Motor , 5500W Servo Motor , 7500W Servo Motor
The Brushless Servo Motors from Panda Electronics feature the following characteristics:
- Special Slot Design: The motor has an exceptionally low mutual inductance, effectively close to zero.
- Optimized Heat Dissipation: The motor features enhanced thermal management, allowing for faster heat dissipation and a more uniform temperature distribution.
- Structural Optimization: The motor's structure is designed for robust performance, increasing durability and reliability.
- Special Core Design: The motor operates with low noise, low vibration, and minimal torque ripple, resulting in smoother operation.
- High Slot Fill Factor: With a larger wire diameter, the motor has lower resistance and generates 20% less heat due to a higher slot fill factor.
- Open-Ended Shaft Design: This design allows for the installation of various encoders, providing customers with more options.
- Optimized Permanent Magnet Design: Utilizing advanced rare-earth permanent magnet materials with exceptionally high intrinsic coercivity, the motor exhibits strong demagnetization resistance.
- High-Resolution Encoder: Equipped with a high-resolution encoder that increases resolution by 64 times, the motor achieves higher and more precise positioning.
- Advanced Manufacturing Techniques: Manufactured in Japan using cutting-edge technology, the motor boasts high reliability, stability, and consistent performance.
- High-Performance Core: The core is designed for high magnetic load, minimal iron loss, and is compact and lightweight, with a size reduction of over 20%.
- New Magnetic Field Analysis Technology: The motor features a ten-level optimized rotor design, delivering significantly increased output and an overload capacity of 3 to 4 times.
- Supporting Customization: Covering diameters ranging from 40 mm to 180 mm, our Brushless Servo Motors offer versatility, we readily accommodate customization for varying dimensions and specifications.
Applications of Brushless Servo Motors:
Industrial Automation:
- Robotics (robot arms, pick and place)
- CNC machines
- Assembly lines
Aerospace:
- Flight control systems
- Positioning systems for aircraft
Automotive:
- Power steering systems
- Electric throttle control
- Automatic transmission systems
Consumer Electronics:
- Printers (particularly 3D printers)
- Cameras (autofocus and image stabilization)
- Drones (control of flight dynamics)
Medical Equipment:
- Surgical robots
- MRI machines
- Prosthetic devices
HVAC Systems:
- Control of dampers and valves for heating and air conditioning systems
Textile Industry:
- Sewing machines
- Weaving and knitting machines
Entertainment:
- Animatronics and robotics in films
- Motion control in stage shows
Telecommunications:
- Antenna position control
- Fiber optic alignment systems
Food and Beverage:
- Automated packaging machines
- Food processing equipment
Key Specifications for this Flange Ø180mm Brushless Servo Motor :
- Motor Flange: 181mm
- Rated Voltage: 48V DC to 380V or customized
- Rated Torque: 18.5N.m to 48N.m or Customized
- Rated Speed: 1500rpm or Customized
- Rated Power: 2900W to 7500W or Customized
- Brake or without brake
Remark:
- We offer design and production services for customized servo motors (OEM & ODM).
To see the product catalogue on our Brushless Servo Motors Φ40-180 mm , please
