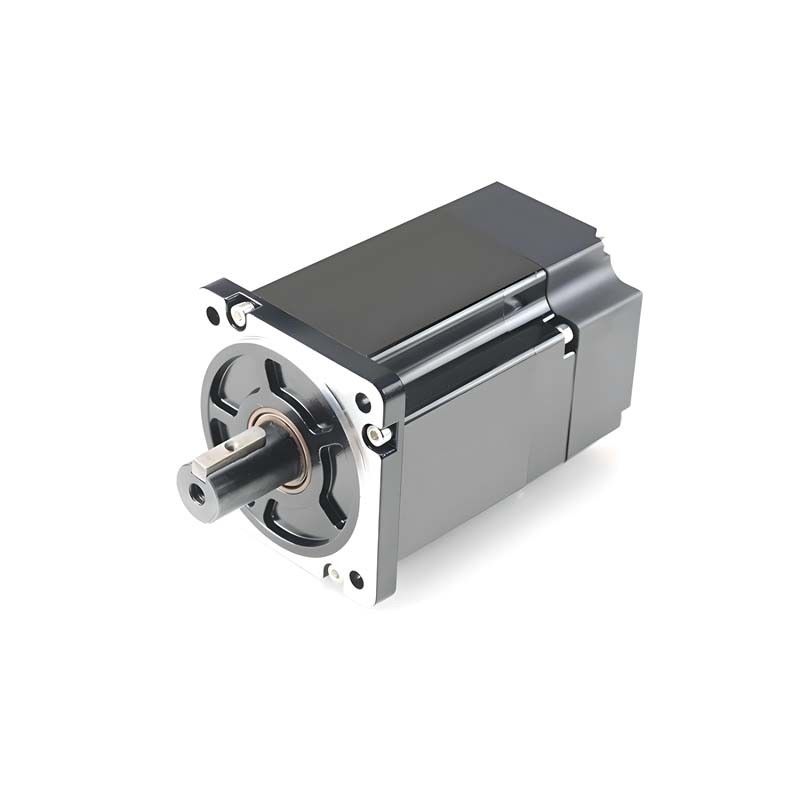

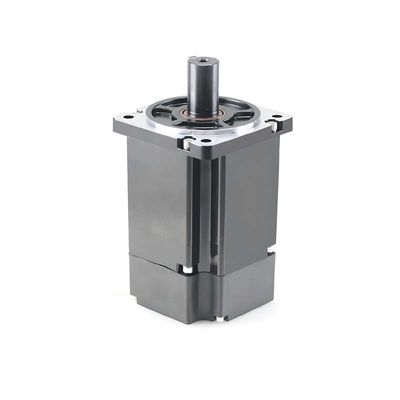

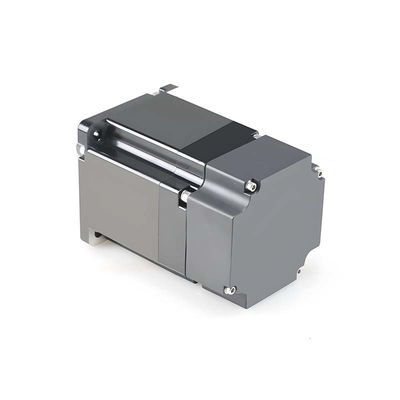

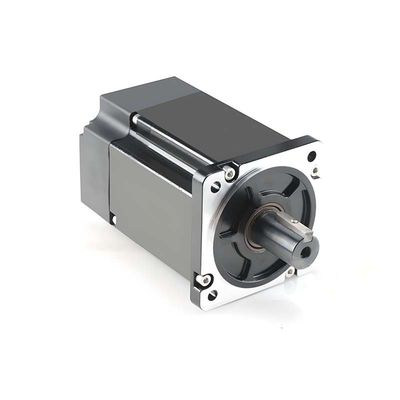

High Power 80mm Brushless AC Servo Motor 750W 3.2N.M 3000rpm Customized

High Power Density 80mm Servomotor 750W 1000W 3.2N.m 3000rpm Customizable

Product Tag: 80mm Servo Motor , 80mm Servomotor , 80mm AC Servo Motor , 50W Servo Motor , 100W Servo Motor , 200W Servo Motor , 400W Servo Motor, 600W Servo Motor ,  750W Servo Motor, 1000W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

• Innovative Slot Design: Experience a motor with an incredibly low mutual inductance—nearly zero!
• Superior Heat Management: Our advanced thermal management system ensures quick heat dissipation and consistent temperature throughout.
• Robust Structure: Designed for exceptional performance, this motor enhances durability and reliability.
• Smooth and Quiet Operation: Enjoy low noise, reduced vibration, and minimal torque ripple for a seamless user experience.
• Efficient Slot Fill Factor: Thanks to a larger wire diameter, this motor operates with lower resistance and generates 20% less heat.
• Versatile Shaft Design: The open-ended shaft allows for the easy installation of various encoders, increasing flexibility for users.
• Powerful Magnet Technology: Utilizing advanced rare-earth magnets, this motor offers outstanding resistance to demagnetization.
• Precision Engineering: The high-resolution encoder boosts positioning accuracy by 64 times, setting a new standard.
• Japanese Craftsmanship: Manufactured in Japan with cutting-edge technology, our motor delivers reliability, stability, and consistent performance.
• Compact Core Design: The core is optimized for high magnetic loads and minimal iron loss, achieving over 20% size reduction while remaining lightweight.
• Revolutionary Rotor Design: Featuring a ten-level optimized rotor, this motor significantly boosts output and can handle 3 to 4 times the overload.
• Custom Solutions Available: Our Brushless Servo Motors range from 40 mm to 180 mm in diameter, with customization options to suit your needs.

Applications of Brushless Servo Motors:

Industrial Automation:

• Robotics (robot arms, pick and place)
• CNC machines
• Assembly lines

Aerospace:

• Flight control systems
• Positioning systems for aircraft

Automotive:

• Power steering systems
• Electric throttle control
• Automatic transmission systems

Consumer Electronics:

• Printers (particularly 3D printers)
• Cameras (autofocus and image stabilization)
• Drones (control of flight dynamics)

Medical Equipment:

• Surgical robots
• MRI machines
• Prosthetic devices

HVAC Systems:

• Control of dampers and valves for heating and air conditioning systems

Textile Industry:

• Sewing machines
• Weaving and knitting machines

Entertainment:

• Animatronics and robotics in films
• Motion control in stage shows

Telecommunications:

• Antenna position control
• Fiber optic alignment systems

Food and Beverage:

• Automated packaging machines
• Food processing equipment

Key Specifications for this Flange Ø80mm Brushless Servo Motor :

• Motor Flange: 81mm
• Rated Voltage: 24V DC to 220V or 48V to 220V or customized
• Rated Torque:  2.4N.m to 3.2N.m or Customized
• Rated Speed:  3000rpm or Customized
• Rated Power: 7500W to 1000W or Customized
• Brake or without brake

Remark:

• We offer design and production services for customized servo motors (OEM & ODM).

To see the product catalogue on our Brushless Servo Motors  Φ40-180 mm , please

                         Check Here and download.
