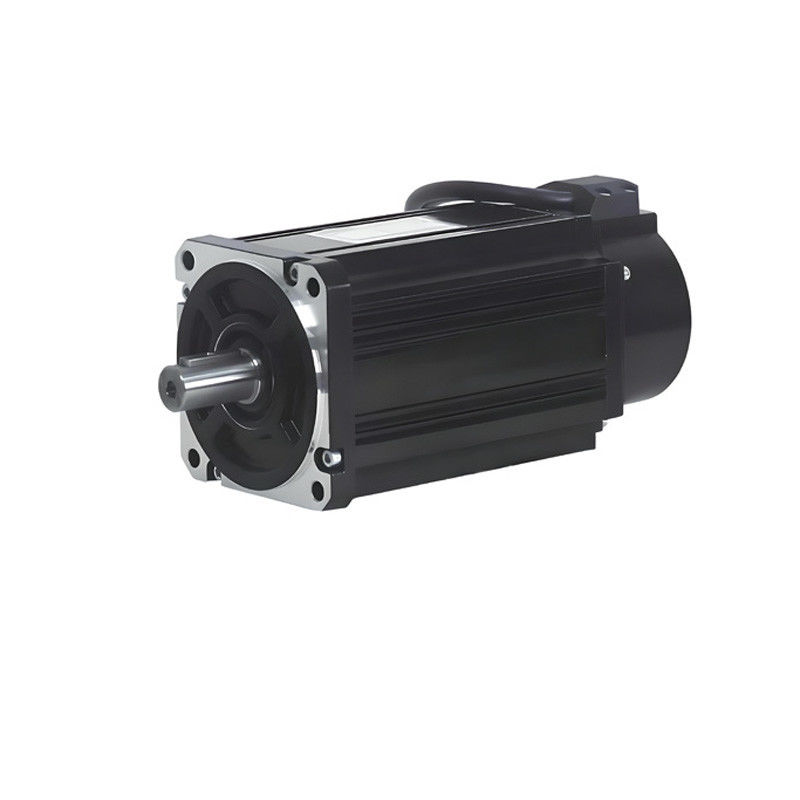

Flange 80mm Brushless Servo Motor With Encoder 3.2N.M 3000rpm 1000W Servo Motor

Flange 80mm brushless Servo motor with encoder 750W 1000W 3.2N.m 3000rpm Customizable

Product Tag: 80mm Servo Motor , 80mm Servomotor , 80mm AC Servo Motor , 50W Servo Motor , 100W Servo Motor , 200W Servo Motor , 400W Servo Motor, 600W Servo Motor ,  750W Servo Motor, 1000W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

• Special Slot Design: This motor features an exceptionally low mutual inductance, effectively approaching zero.
• Optimized Heat Dissipation: Enhanced thermal management facilitates rapid heat dissipation and maintains a uniform temperature distribution.
• Structural Optimization: The motor's architecture is engineered for robust performance, enhancing both durability and reliability.
• Special Core Design: It operates with low noise, minimal vibration, and reduced torque ripple, resulting in a smoother operation.
• High Slot Fill Factor: With a larger wire diameter, the motor reduces resistance and generates 20% less heat, thanks to an improved slot fill factor.
• Open-Ended Shaft Design: This configuration allows for the installation of various encoders, providing greater flexibility for users.
• Optimized Permanent Magnet Design: Utilizing advanced rare-earth permanent magnets with high intrinsic coercivity, the motor shows strong resistance to demagnetization.
• High-Resolution Encoder: Equipped with a high-resolution encoder, the motor increases positional accuracy by 64 times.
• Advanced Manufacturing Techniques: Manufactured in Japan using state-of-the-art technology, the motor ensures high reliability and consistent performance.
• High-Performance Core: Designed for high magnetic loads with minimal iron loss, the core is compact and lightweight, achieving over 20% size reduction.
• New Magnetic Field Analysis Technology: The motor features a ten-level optimized rotor design, significantly boosting output and allowing for overload capacities of 3 to 4 times.
• Supporting Customization: Our Brushless Servo Motors range from 40 mm to 180 mm in diameter, readily accommodating customization for various specifications.

Applications of Brushless Servo Motors:

Industrial Automation:

• Robotics (robot arms, pick and place)
• CNC machines
• Assembly lines

Aerospace:

• Flight control systems
• Positioning systems for aircraft

Automotive:

• Power steering systems
• Electric throttle control
• Automatic transmission systems

Consumer Electronics:

• Printers (particularly 3D printers)
• Cameras (autofocus and image stabilization)
• Drones (control of flight dynamics)

Medical Equipment:

• Surgical robots
• MRI machines
• Prosthetic devices

HVAC Systems:

• Control of dampers and valves for heating and air conditioning systems

Textile Industry:

• Sewing machines
• Weaving and knitting machines

Entertainment:

• Animatronics and robotics in films
• Motion control in stage shows

Telecommunications:

• Antenna position control
• Fiber optic alignment systems

Food and Beverage:

• Automated packaging machines
• Food processing equipment

Key Specifications for this Flange Ø80mm Brushless Servo Motor :

• Motor Flange: 81mm
• Rated Voltage: 24V DC to 220V or 48V to 220V or customized
• Rated Torque:  2.4N.m to 3.2N.m or Customized
• Rated Speed:  3000rpm or Customized
• Rated Power: 7500W to 1000W or Customized
• Brake or without brake

Remark:

• We offer design and production services for customized servo motors (OEM & ODM).
