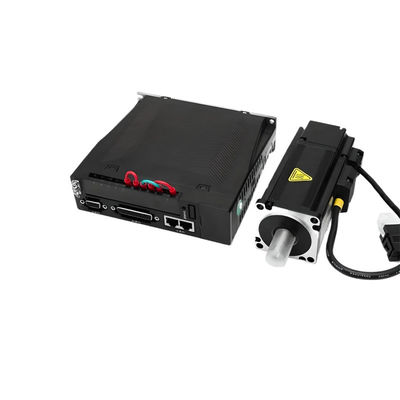

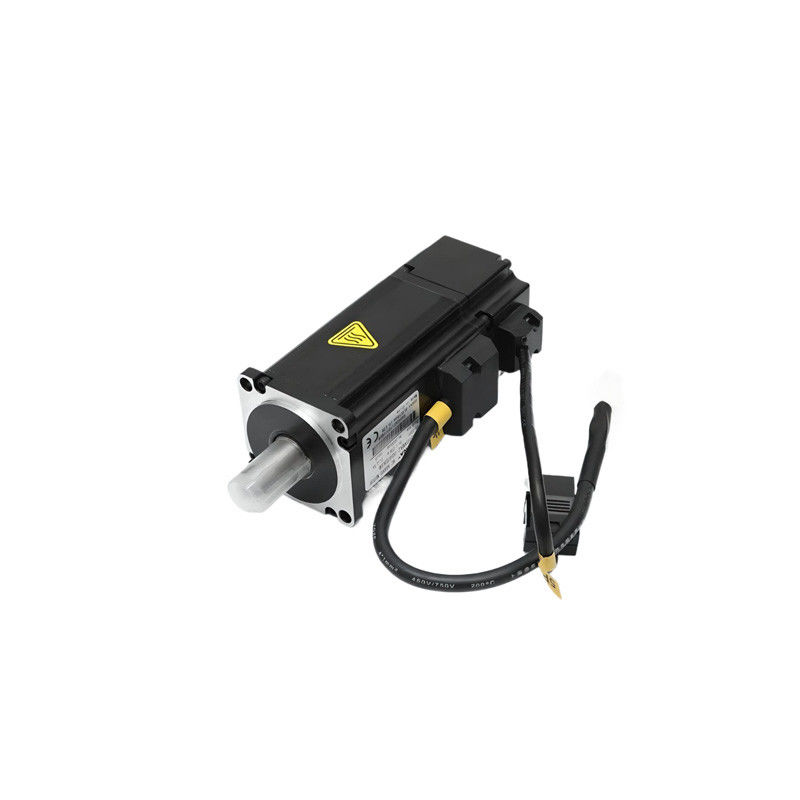

Automotive Flange 60mm Brushless Servo Motor 400W Encoder Servomotor 1.9N.M 3000rpm

Flange 60mm brushless servo motor with encoder 400W 600W 1.9N.m 3000rpm Customizable for Precision Control

Product Tag:  60mm Servo Motor , 60mm Servomotor , 60mm AC Servo Motor , 50W Servo Motor , 100W Servo Motor , 200W Servo Motor , 400W Servo Motor, 600W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

• Special Slot Design: The motor is engineered to exhibit exceptionally low mutual inductance, effectively approaching zero.
• Optimized Heat Dissipation: Enhanced thermal management allows for rapid heat dissipation and promotes uniform temperature distribution.
• Structural Optimization: The motor's design prioritizes robust performance, enhancing both durability and reliability.
• Special Core Design: This motor operates with minimal noise, low vibration, and reduced torque ripple, leading to smoother operation.
• High Slot Fill Factor: Featuring a larger wire diameter, the motor achieves lower resistance and generates 20% less heat through a higher slot fill factor.
• Open-Ended Shaft Design: This design facilitates the installation of various encoders, providing greater flexibility for users.
• Optimized Permanent Magnet Design: Advanced rare-earth permanent magnets with high intrinsic coercivity ensure strong resistance to demagnetization.
• High-Resolution Encoder: This motor is equipped with a high-resolution encoder that enhances resolution by a factor of 64, allowing for precise positioning.
• Advanced Manufacturing Techniques: Manufactured in Japan with state-of-the-art technology, the motor ensures high reliability and consistent performance.
• High-Performance Core: The core is optimized for high magnetic loads and minimal iron loss, achieving over 20% size reduction while remaining compact and lightweight.
• New Magnetic Field Analysis Technology: With a ten-level optimized rotor design, the motor significantly increases output and supports overload capacities of 3 to 4 times.
• Supporting Customization: Our Brushless Servo Motors, available in diameters from 40 mm to 180 mm, can be customized to meet a variety of specifications.

Applications of Brushless Servo Motors:

Industrial Automation:

• Robotics (robot arms, pick and place)
• CNC machines
• Assembly lines

Aerospace:

• Flight control systems
• Positioning systems for aircraft

Automotive:

• Power steering systems
• Electric throttle control
• Automatic transmission systems

Consumer Electronics:

• Printers (particularly 3D printers)
• Cameras (autofocus and image stabilization)
• Drones (control of flight dynamics)

Medical Equipment:

• Surgical robots
• MRI machines
• Prosthetic devices

HVAC Systems:

• Control of dampers and valves for heating and air conditioning systems

Textile Industry:

• Sewing machines
• Weaving and knitting machines

Entertainment:

• Animatronics and robotics in films
• Motion control in stage shows

Telecommunications:

• Antenna position control
• Fiber optic alignment systems

Food and Beverage:

• Automated packaging machines
• Food processing equipment

Key Specifications for this Flange Ø60mm Brushless Servo Motor :

• Motor Flange: 61.5 mm
• Rated Voltage: 24V DC to 48V  to 220V or customized
• Rated Torque:  0.6N.m to 1.9N.m or Customized
• Rated Speed:  3000rpm or Customized
• Rated Power: 200W to 600W or Customized
• Brake or without brake

Remark:

• We offer design and production services for customized servo motors (OEM & ODM).

To see the product catalogue on our Brushless Servo Motors  Φ40-180 mm , please

                         Check Here and download.
