Ø40mm Slotless Brushless Motor 24V Slotless BLDC Motor 170W 8016rpm Customizable
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC40*88 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Slotless BLDC Motor | No Load Speed: | 8016rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 170W Or Customized | Rated Voltage: | 24V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | 8016rpm Slotless Brushless Motor,Slotless Brushless Motor 24V,Customizable Slotless BLDC Motor |
||
Product Description
40mm Slotless BLDC Motor 24V to 48V 170W Zero Cogging Micromotor 8016rpm Customizable
Product Tag: 40mm Coreless Motor , 40mm Low Cogging Motor , 40mm Cogging Free Motor , 40mm Zero Cogging Motor , 40mm Ironless Motor , 40mm Slotless Motor , 40mm Slotless Brushless Motor , 40mm Slotless Brushless DC Motor , 40mm Brushless DC Slotless Motor , 40mm Slotless BLDC Motor , 40mm BLDC Slotless Motor , 40mm Coreless Brushless Motor , 40mm Brushless Coreless Motor , 40mm Brushless Slotless Motor , 40mm Brushless Coreless Motor , 40mm Brushless Motor , 40mm Brushless DC Motor, 40mm DC Brushless Motor, 36mm Brushless Electric Motor , 40mm BLDC Motor , 40mm Brushless DC Electric Motor , 40mm Sensored Brushless Motor , 40mm Sensorless Brushless Motor
We are delighted to present our compact Ø 40mm Slotless Brushless DC Motor, which is offered in both sensorless and sensored options. With a wide array of customization possibilities, we can adapt the motor to fit your specific requirements and dimensions.
In contrast to conventional iron core brushless motors, this slotless design features a distinctive construction that does not include an iron core.
This innovative design significantly improves both efficiency and performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 40mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

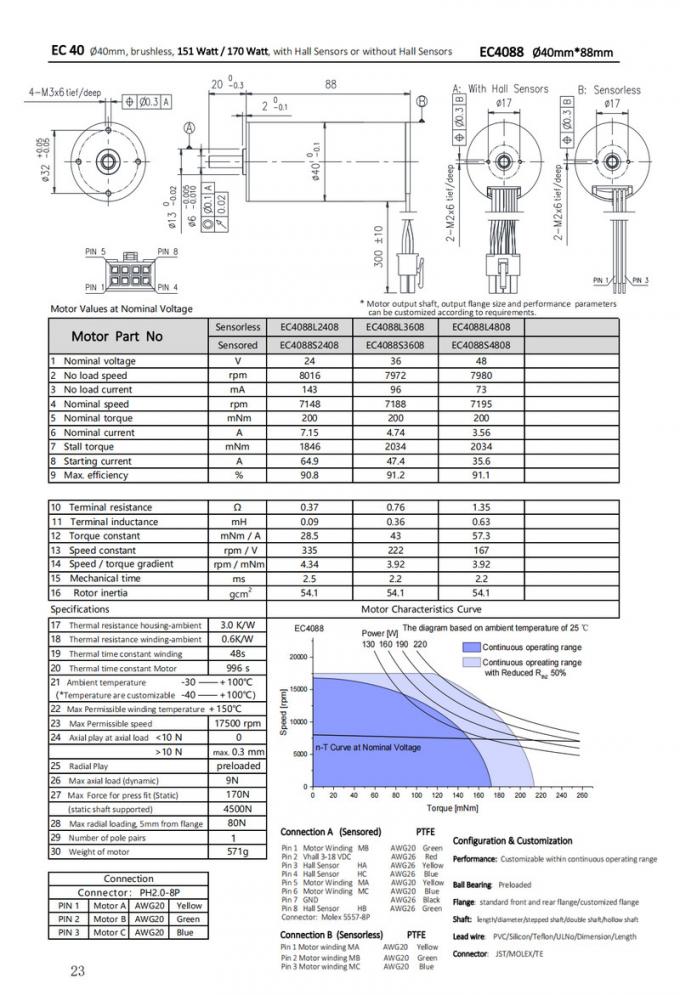

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
