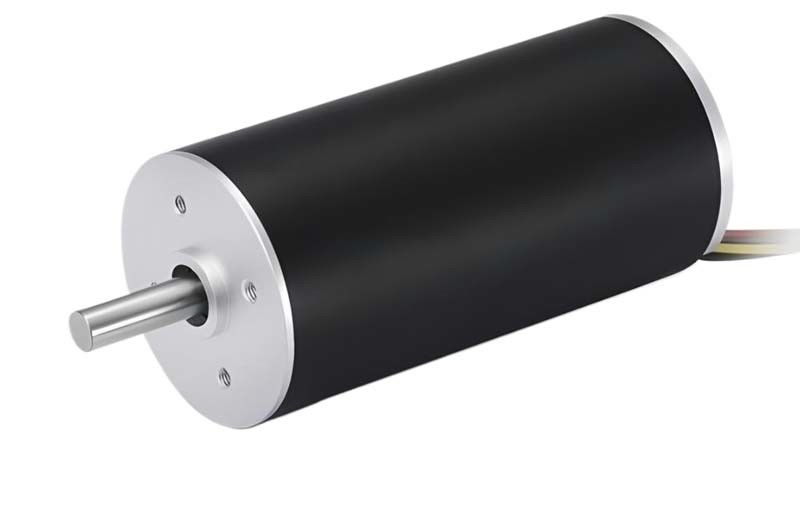

High Power Slotless Brushless DC Motor 40mm 48V 120W 6154rpm Easy Maintenance
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC40*70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Slotless Brushless DC Electric Motor | No Load Speed: | 6154rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 120W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | High Power Slotless Brushless DC Motor,Easy Maintenance Slotless Brushless DC Motor,High Power Sensored Brushless Motor |
||
Product Description
40mm Slotless Brushless DC Motor 12V to 48V Zero Cogging Micromotor 120W 6154rpm Customizable
Product Tag: 40mm Coreless Motor , 40mm Low Cogging Motor , 40mm Cogging Free Motor , 40mm Zero Cogging Motor , 40mm Ironless Motor , 40mm Slotless Motor , 40mm Slotless Brushless Motor , 40mm Slotless Brushless DC Motor , 40mm Brushless DC Slotless Motor , 40mm Slotless BLDC Motor , 40mm BLDC Slotless Motor , 40mm Coreless Brushless Motor , 40mm Brushless Coreless Motor , 40mm Brushless Slotless Motor , 40mm Brushless Coreless Motor , 40mm Brushless Motor , 40mm Brushless DC Motor, 40mm DC Brushless Motor, 36mm Brushless Electric Motor , 40mm BLDC Motor , 40mm Brushless DC Electric Motor , 40mm Sensored Brushless Motor , 40mm Sensorless Brushless Motor
Meet our compact Ø 40mm Slotless Brushless DC Motor, which comes in both sensorless and sensored variations. With a variety of customization options, we can tailor the motor precisely to your specifications and dimensions.
Unlike standard iron core brushless motors, this slotless design showcases a unique construction that lacks an iron core.
This innovative approach significantly improves efficiency and performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 40mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

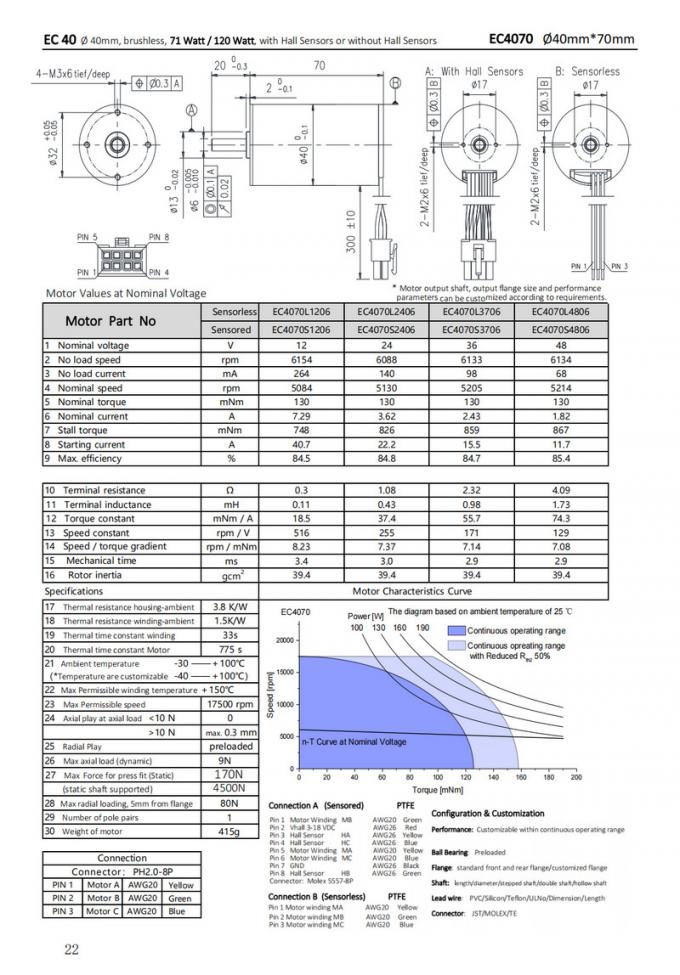

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
