36mm Slotless Brushless Motor Cogging Free 48V BLDC Motor 82W 6675rpm
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC36*70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | USD$30 - $159 PER Piece |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Brushless Motor | No Load Speed: | 6675rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 82W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | 36mm Slotless Brushless Motor,Cogging Free Slotless Brushless Motor,Cogging Free 48V BLDC Motor |
||
Product Description

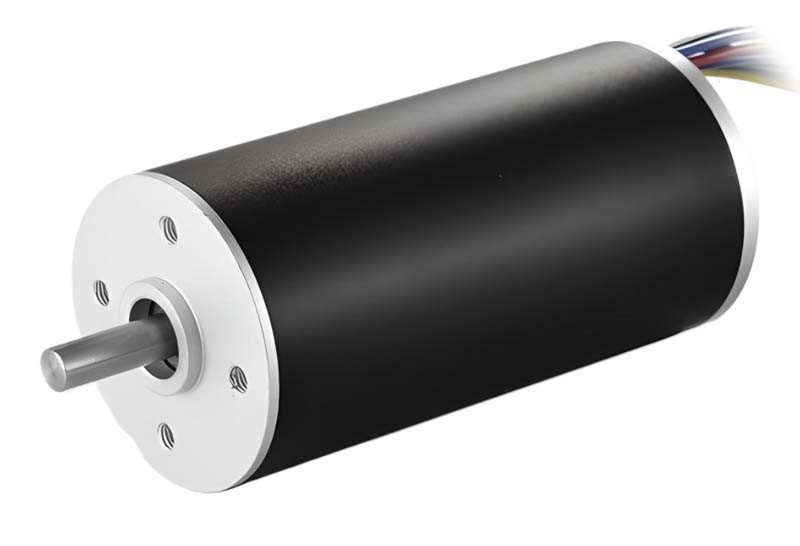

36mm BLDC Slotless Motor 12V to 48V Cogging Free Motor 82W 6675rpm Customizable
Product Tag: 36mm Coreless Motor , 36mm Low Cogging Motor , 36mm Cogging Free Motor , 36mm Zero Cogging Motor , 36mm Ironless Motor , 36mm Slotless Motor , 36mm Slotless Brushless Motor , 36mm Slotless Brushless DC Motor , 36mm Brushless DC Slotless Motor , 36mm Slotless BLDC Motor , 36mm BLDC Slotless Motor , 36mm Coreless Brushless Motor , 36mm Brushless Coreless Motor , 36mm Brushless Slotless Motor , 36mm Brushless Coreless Motor , 36mm Brushless Motor , 36mm Brushless DC Motor, 36mm DC Brushless Motor, 36mm Brushless Electric Motor , 36mm BLDC Motor , 36mm Brushless DC Electric Motor , 36mm Sensored Brushless Motor , 36mm Sensorless Brushless Motor
Introducing our Ø 36mm Slotless BLDC Motor in a compact size, available in sensorless and sensored configurations. We offer ample customization to ensure the motor aligns perfectly with your specifications and dimensions.
This Brushless Coreless Motor is unique in that it utilizes a design without an iron core, unlike standard iron core brushless motors.
This innovative approach significantly boosts efficiency and overall performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 36mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

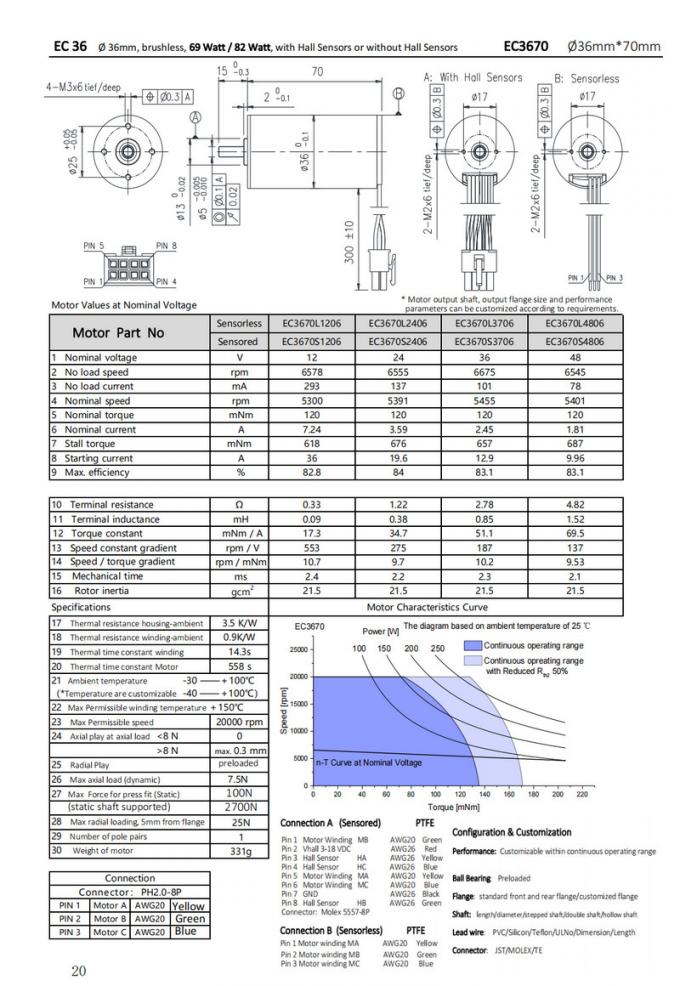

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
