Low Cogging 32mm Slotless Brushless Motor 12V 75W 6095rpm Space Saving
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC32*70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | USD$30 - $120 PER Piece |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Slotless Brushless Motor | No Load Speed: | 6095rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 75W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | 32mm Slotless Brushless Motor,Low Cogging Slotless Brushless Motor,Low Cogging Custom Brushless DC Motor |
||
Product Description
32mm Slotless Brushless DC Motor 12V to 48V Low Cogging Motor 75W 6095rpm Customizable
Product Tag: 32mm Coreless Motor , 32mm Low Cogging Motor , 32mm Cogging Free Motor , 32mm Zero Cogging Motor , 32mm Ironless Motor , 32mm Slotless Motor , 32mm Slotless Brushless Motor , 32mm Slotless Brushless DC Motor , 32mm Brushless DC Slotless Motor , 32mm Slotless BLDC Motor , 32mm BLDC Slotless Motor , 32mm Coreless Brushless Motor , 32mm Brushless Coreless Motor , 32mm Brushless Slotless Motor , 32mm Brushless Coreless Motor , 32mm Brushless Motor , 32mm Brushless DC Motor, 32mm DC Brushless Motor, 32mm Brushless Electric Motor , 32mm BLDC Motor , 32mm Brushless DC Electric Motor , 32mm Sensored Brushless Motor , 32mm Sensorless Brushless Motor

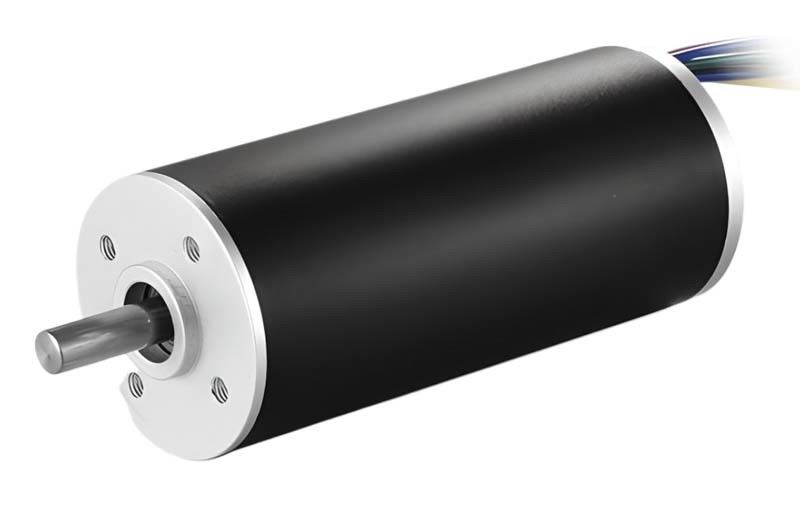

Presenting our compact Ø 32mm Slotless Brushless Motor, which comes in sensorless and sensored configurations. We offer a variety of customization options to tailor the motor to your exact specifications and dimensions.
This 32mm Coreless Motor stands out from standard iron core brushless motors due to its unique design that lacks an iron core.
This innovative approach boosts efficiency and overall performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 32mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

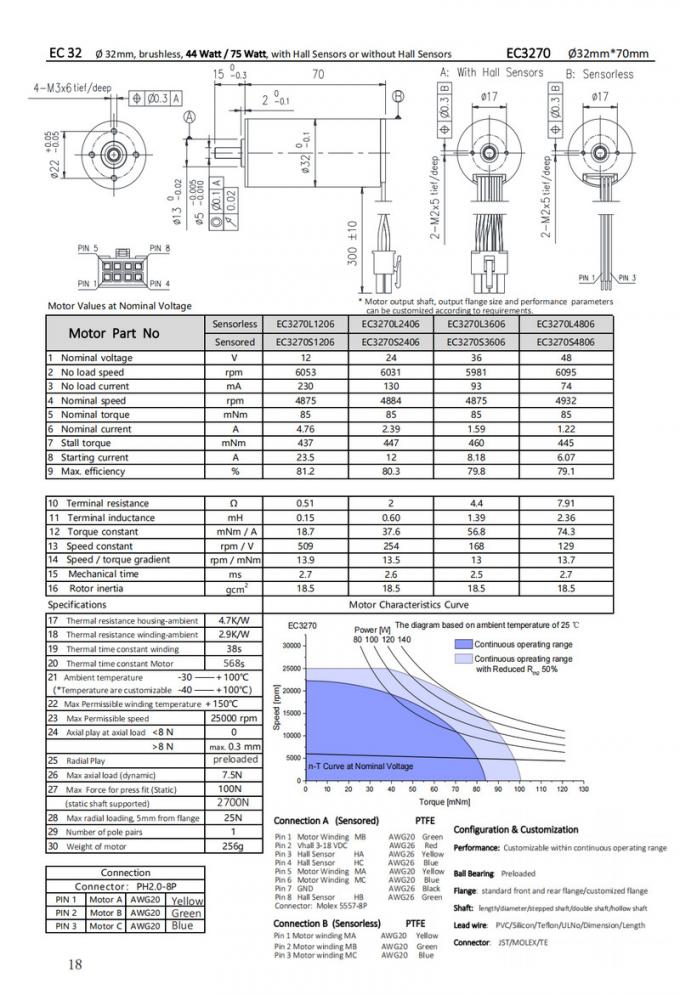

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
