Energy Efficiency Slotless Brushless DC Motor 18V 32mm 97W 14400rpm Zero Cogging Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC32*60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | USD$30 - $115 PER Piece |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Brushless Coreless Motor | No Load Speed: | 14400rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 97W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | Energy Efficiency Slotless Brushless DC Motor,18V Slotless Brushless DC Motor,Energy Efficiency Zero Cogging Motor |
||
Product Description
32mm Brushless DC Slotless Motor 18V to 48V Zero Cogging Motor 97W 14400rpm Customizable
Product Tag: 32mm Coreless Motor , 32mm Low Cogging Motor , 32mm Cogging Free Motor , 32mm Zero Cogging Motor , 32mm Ironless Motor , 32mm Slotless Motor , 32mm Slotless Brushless Motor , 32mm Slotless Brushless DC Motor , 32mm Brushless DC Slotless Motor , 32mm Slotless BLDC Motor , 32mm BLDC Slotless Motor , 32mm Coreless Brushless Motor , 32mm Brushless Coreless Motor , 32mm Brushless Slotless Motor , 32mm Brushless Coreless Motor , 32mm Brushless Motor , 32mm Brushless DC Motor, 32mm DC Brushless Motor, 32mm Brushless Electric Motor , 32mm BLDC Motor , 32mm Brushless DC Electric Motor , 32mm Sensored Brushless Motor , 32mm Sensorless Brushless Motor

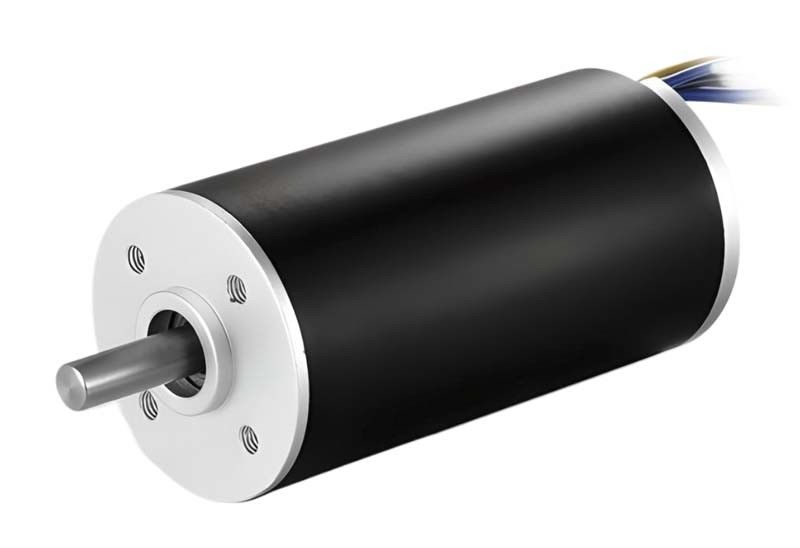

We are pleased to introduce our Ø 32mm Slotless Brushless Motor, designed in a compact size and available in sensorless or sensored options. Our customization capabilities allow us to meet your precise specifications and dimensions.
This Coreless Motor distinguishes itself from traditional iron core brushless motors by featuring a design without an iron core.
This innovative feature enhances both efficiency and performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 32mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

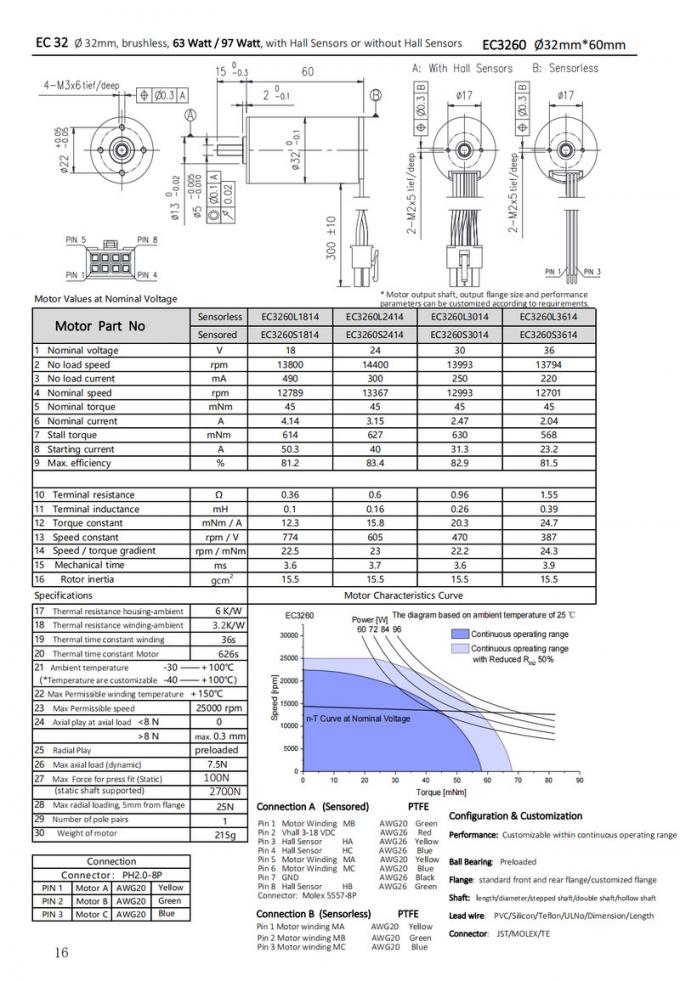

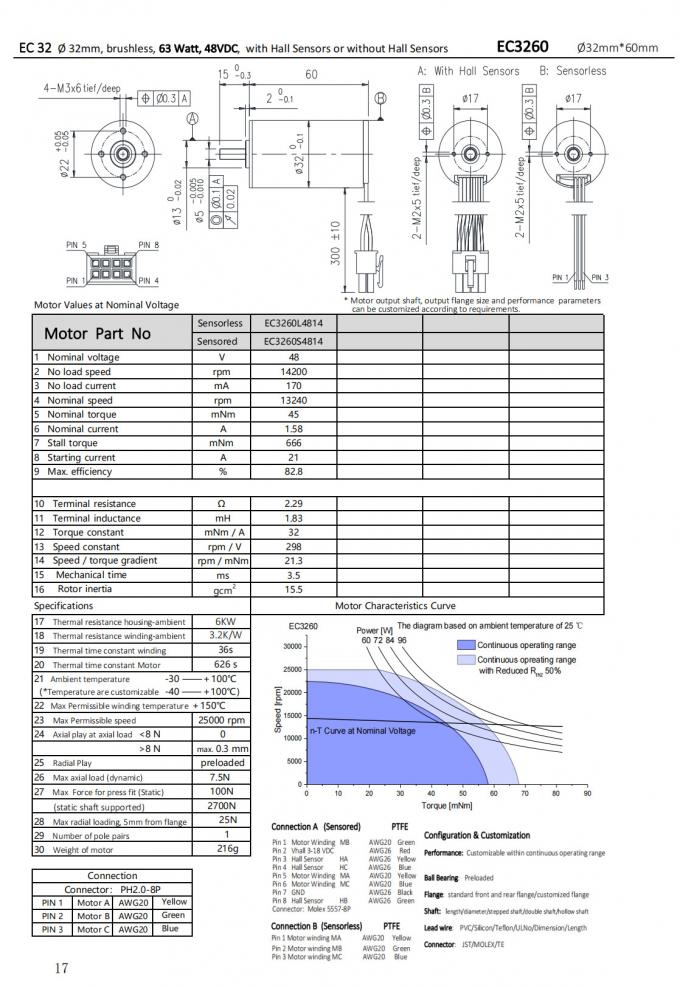

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
