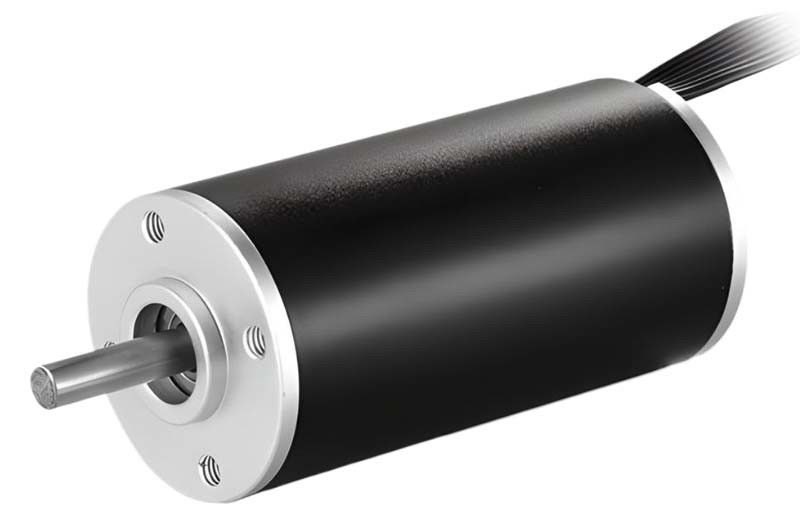

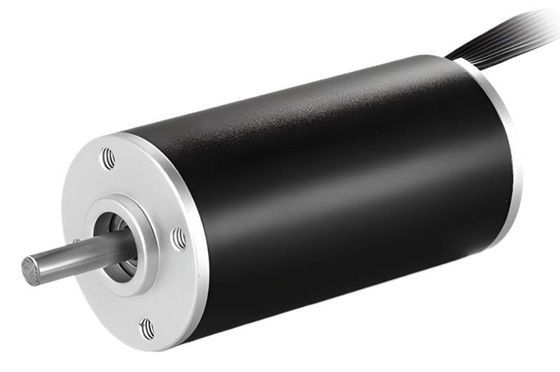

Ø28mm Slotless BLDC Motor 12V to 48V 52W 8336rpm Customizable
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC28*54 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | USD$30 - $101 PER Piece |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Slotless BLDC Motor | No Load Speed: | 8336rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 52W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | 28mm slotless BLDC motor 12V to 48V,52W slotless brushless motor 8336rpm,customizable slotless motor with warranty |
||
Product Description
Introducing our compact Ø28mm Slotless BLDC Motor, available in both sensorless and sensored configurations. Customization options are plentiful; we tailor the motor precisely to your specifications and dimensions.
Unlike traditional iron core brushless motors, this slotless brushless motor boasts a unique design without an iron core.
This innovative approach enhances efficiency and performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 28mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

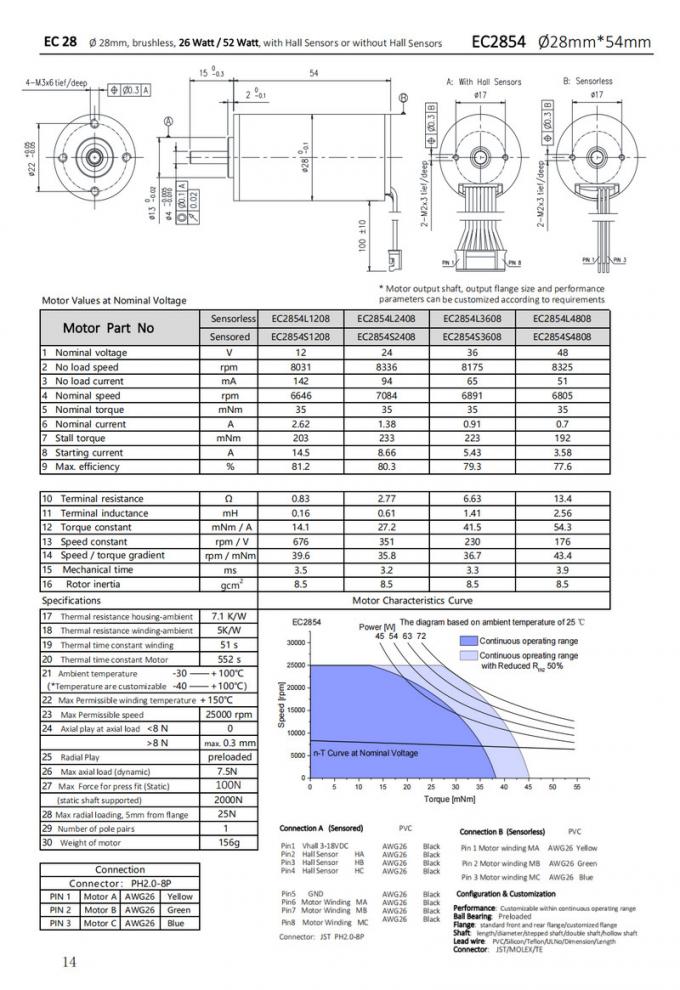

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
