Industrial 28mm Slotless Brushless Motor 48V 52W 8336rpm Brushless DC Electric Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | EC28*54 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Slotless BLDC Motor | No Load Speed: | 8336rpm Or Customized |
|---|---|---|---|
| Rated Output Power: | 52W Or Customized | Rated Voltage: | 12V To 48V DC Or Customized |
| Applicaiton Field: | Blowers, Fans, Power Tools, Medical Pumps, Robotic Prosthetic Fingers, Automation | Warranty: | 3 Years |
| Highlight: | Industrial Brushless DC Electric Motor,48V Brushless DC Electric Motor,Industrial Slotless Brushless Motor |
||
Product Description
28mm Brushless DC Motor 12V to 48V Ironless Motor 52W 8336rpm Customizable
Product Tag: 28mm Coreless Motor , 28mm Ironless Motor , 28mm Slotless Motor , 28mm Slotless Brushless Motor , 28mm Slotless BLDC Motor , 28mm Coreless Brushless Motor , 28mm Brushless Coreless Motor , 28mm Brushless Slotless Motor , 28mm Brushless Coreless Motor , 28mm Brushless Motor , 28mm Brushless DC Motor , 28mm DC Brushless Motor , 28mm Brushless Electric Motor , 28mm BLDC Motor , 28mm Brushless DC Electric Motor , 28mm Sensored Brushless Motor , 28mm Sensorless Brushless Motor

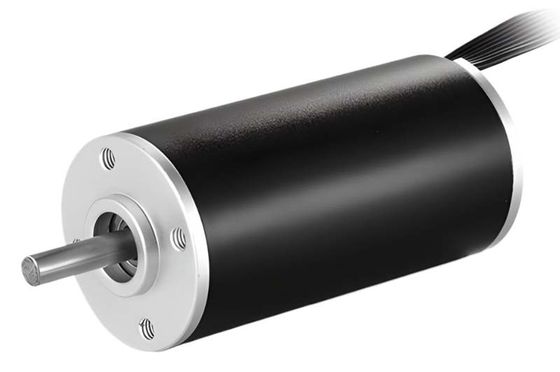

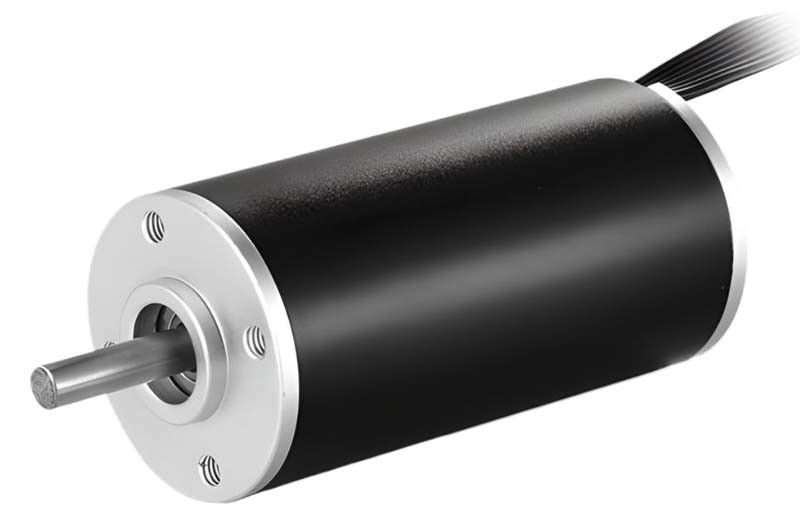

- Introducing our compact Ø 28mm Slotless BLDC Motor, available in both sensorless and sensored configurations. Customization options are plentiful; we tailor the motor precisely to your specifications and dimensions.
- Unlike traditional iron core brushless motors, this 28mm Brushless Coreless Motor boasts a unique design without an iron core. This innovative approach enhances efficiency and performance.
- Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
- These 28mm diameter 28mm Slotless Brushless Motor are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
- If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

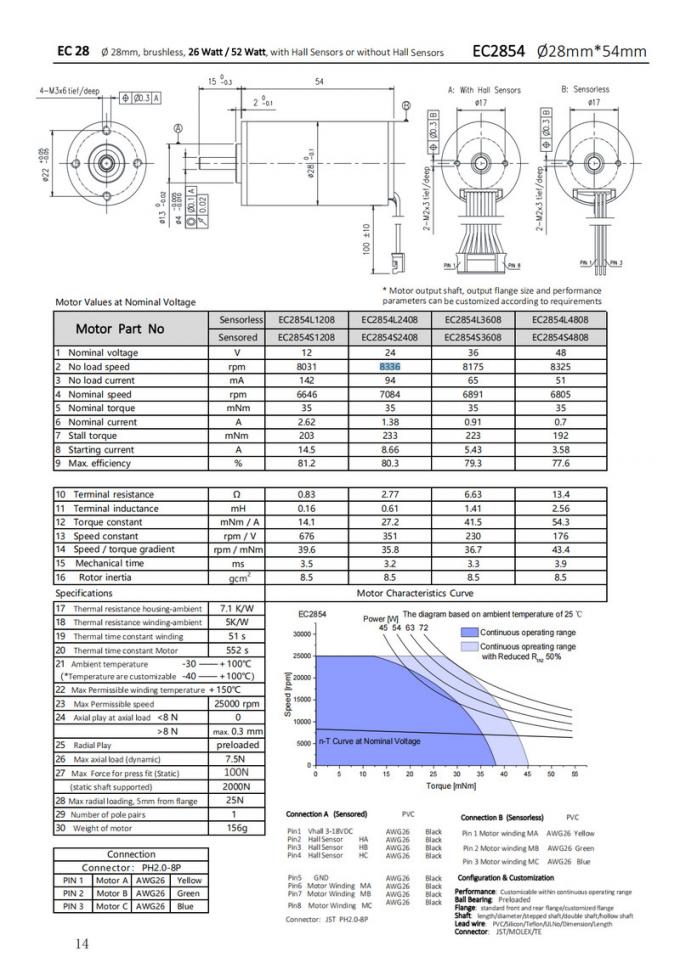

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
