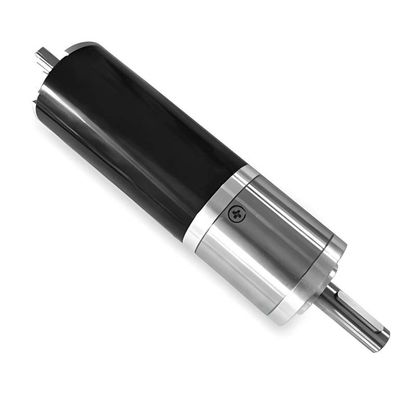

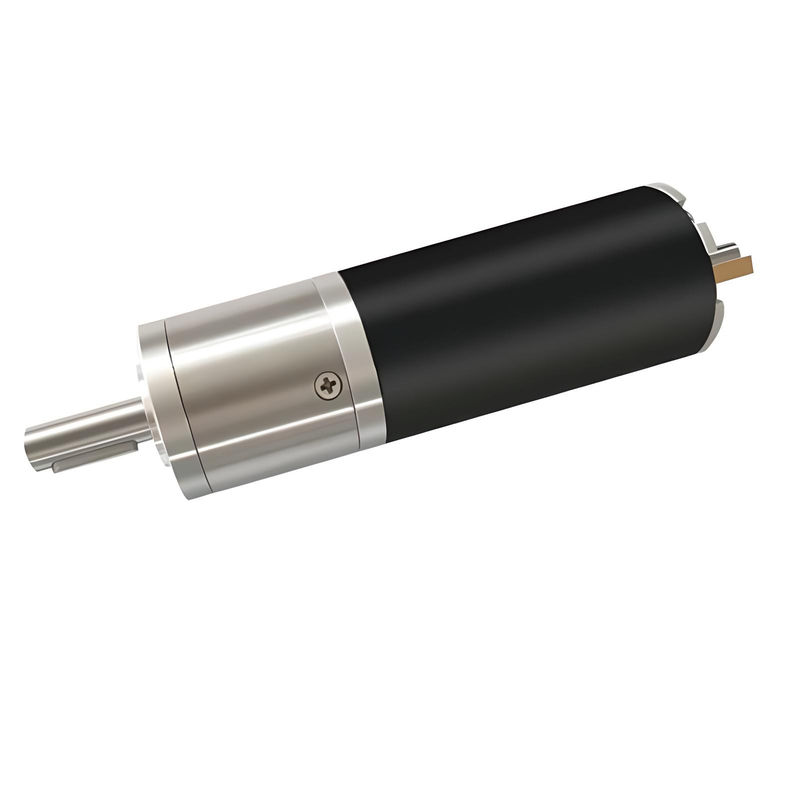

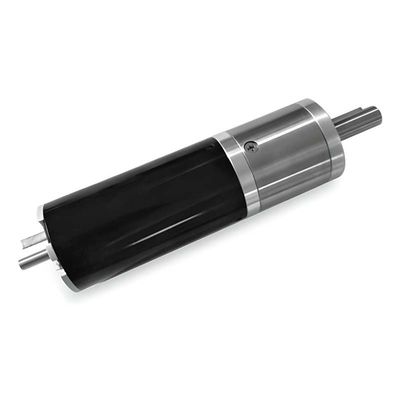

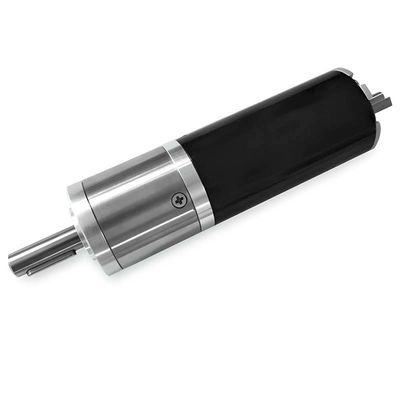

Custom 35mm Brush DC Gear Motor Low Rpm 12V 6000mNm 2075RPM High Speed

35mm Brush DC Gear Motor Planetary low rpm 12V to 30V 6000mNm 1.6RPM to 2075RPM Customizable

Product Tag:  35mm Gearbox Motor,  35mm DC Gear Motor ,  35mm Reduction Motor ,  35mm DC Geared Motor ,  35mm Gear Reduction Motor , 35mm Gear Reducer Motor ,  35mm Gearhead Motor ,  35mm DC Reduction Motor ,  35mm Planetary Gear Motor , 35mm Planetary Gearmotor , 35mm Brush DC Gear Motor

Coreless brush gear motors are a type of electric motor that features a coreless rotor and brush commutation.

• Instead of heavy iron cores, they feature a rotor made of lightweight wire coils, resulting in lower inertia and improved efficiency.
• The use of carbon brushes allows for smooth electrical transfer, and the integrated gear system effectively increases torque while controlling speed, making these motors ideal for precision applications.

Advantages of Coreless Gear Motors:

• Energy Efficiency: Coreless designs maximize energy usage, resulting in highly efficient motors.
• Lightweight Structure: The absence of a heavy core yields a motor that is easy to integrate into portable devices.
• Rapid Acceleration: Low inertia allows for exceptional responsiveness in speed changes.
• Compact Design: Small dimensions make these motors ideal for applications with space constraints.
• Increased Speed: The lightweight rotor contributes to higher rotational speeds, enhancing motion dynamics.
• Torque Improvement: Utilizing fine wire coils ensures that current distribution is optimized for superior torque.

Applications of Coreless Gear Motors:

• Robotics: Picture a robot arm moving gracefully; that’s the magic of micro coreless gear motors, providing the perfect blend of speed and torque for joint movements.
• Model Making: Imagine your model plane soaring through the air, powered by small coreless gear motors that give it the speed and strength to perform.
• Medical Devices: Visualize a surgical robot executing precise movements; these motors are key to achieving that level of accuracy in medical tools.
• Automation Equipment: Think of a tiny motor working behind the scenes to ensure your automatic door opens seamlessly—coreless gear motors make that possible.

Currently, our brush DC gear motors are available in a diverse range of sizes, from 12mm to 57mm in diameter.

Key Specifications for this Ø 35mm dc brushed gear motor:

• Gearbox Outer Diameter: 35 mm
• Motor Outer Diameter: 35mm
• Rated Voltage: 12V DC to 30V  or customized
• Gearbox Length: 31.3mm to 61.5mm
• Reduction Ratio: Wide range from 1: 3.47 to 1: 4156.43
• Rated Torque: wide range from 279mNm to 6000mNm or Customized
• Rated Speed: wide range from 1.6RPM to 2075RPM or Customized

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushed DC Gear Motors Φ12-57 mm , please

                         Check Here and download.

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.
