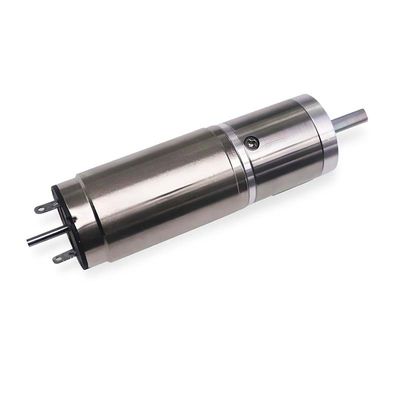

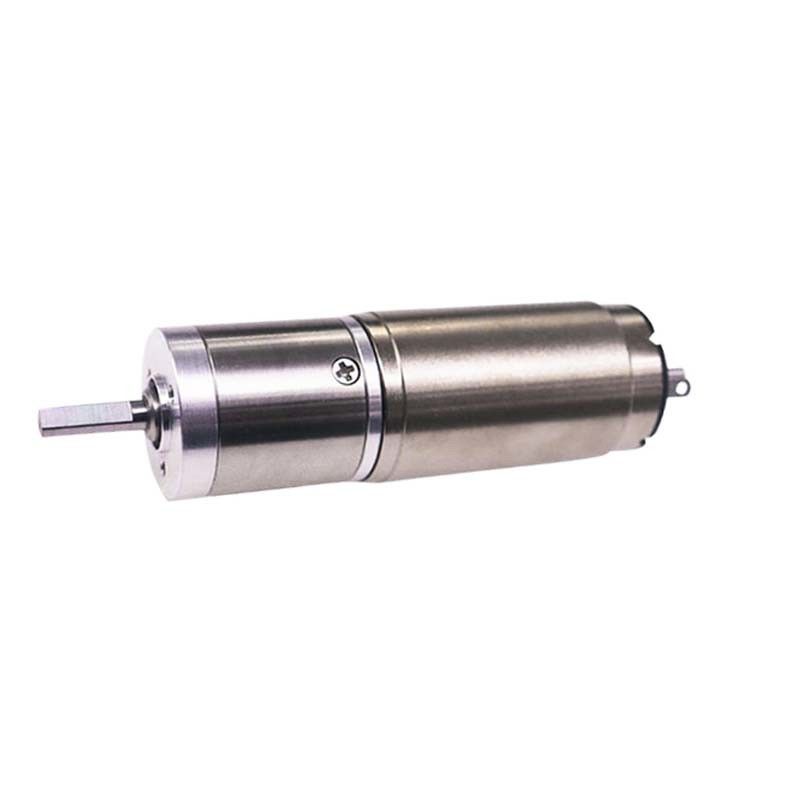

Energy Saving 22mm Brushed DC Gear Motor 48V 1500mNm 1.5RPM DC Gearbox Motor Low Noise

22mm Gearhead Motor 6V to 48V Brush DC Gear Motor 1500mNm 1.5RPM to 2526RPM Customizable

Product Tag:  22mm Gearbox Motor, 22mm DC Gear Motor , 22mm Reduction Motor , 22mm DC Geared Motor , 22mm Gear Reduction Motor , 22mm Gear Reducer Motor , 22mm Gearhead Motor , 22mm DC Reduction Motor , 22mm Planetary Gear Motor , 22mm Planetary Gearmotor , 22mm Brush DC Gear Motor

Coreless brush gear motors are a type of electric motor that features a coreless rotor and brush commutation.

• By utilizing a coreless rotor made from fine wire coils, these motors achieve a significant reduction in weight and inertia, resulting in enhanced efficiency and quick response times.
• The incorporation of carbon brushes facilitates seamless electrical transfer, while the gear reduction mechanism allows for optimized torque control, particularly in demanding applications.

Advantages of Coreless Gear Motors:

• Efficient: The coreless design helps save energy, making these motors very efficient.
• Lightweight: They’re lighter because there’s no heavy iron core, which is great for portability.
• Fast Reaction: They can speed up and slow down quickly due to low inertia.
• Compact: Their small size means you can use them in tight spots.
• Speedy Performance: A lighter rotor lets them spin faster, improving motion.
• Strong Torque: Fine wire coils help distribute current well, boosting torque.

Applications of Coreless Gear Motors:

• Robotics: When it comes to robotics, micro coreless gear motors are the go-to choice for achieving quick and powerful joint movements!
• Model Making: For model enthusiasts, these small motors are essential for making your aircraft and vehicles zoom around with impressive speed and torque.
• Medical Devices: In healthcare, precision is key, and these motors ensure that surgical robots and instruments can move exactly as needed.
• Automation Equipment: Tiny coreless gear motors are fantastic for automating everyday items, ensuring smooth operation of doors, curtains, and vending machines.

Currently, our brush DC gear motors are available in a diverse range of sizes, from 12mm to 57mm in diameter.

Key Specifications for this Ø22mm dc brushed gear motor:

• Gearbox Outer Diameter: 22 mm
• Motor Outer Diameter:  22mm
• Rated Voltage: 6V DC to 48V DC or customized
• Gearbox Length: 21.4mm to 38.4mm
• Reduction Ratio:  Wide range from 1: 3.5 to 1: 3061.3
• Rated Torque:  wide range from 12.8mNm to 1500mNm or Customized
• Rated Speed:  wide range from 1.5RPM to 2526RPM or Customized

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushed DC Gear Motors   Φ12-57 mm , please

                 Check Here and download.

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.
