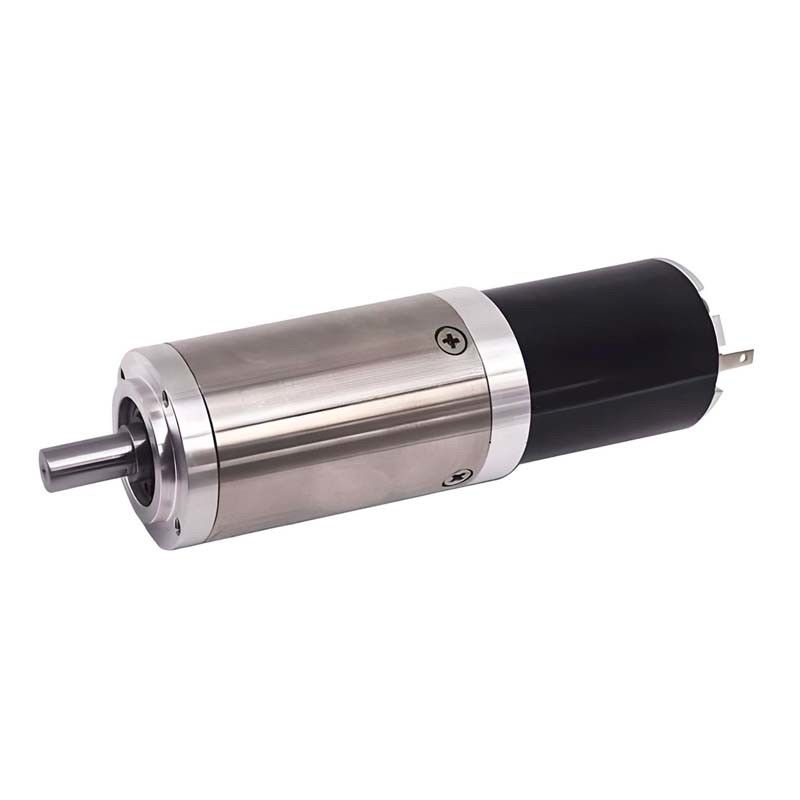

30mm Gear Motor With Encoder 12V 3000mNm 2240RPM Energy Efficiency

30mm Gearbox Motor with encoder 12V to 48V Planetary Gear Motor 3000mNm 2.5RPM to 2240RPM Customizable

Product Tag:  30mm Gearbox Motor, 30mm DC Gear Motor , 30mm Reduction Motor , 30mm DC Geared Motor , 30mm Gear Reduction Motor , 30mm Gear Reducer Motor , 30mm Gearhead Motor , 30mm DC Reduction Motor , 30mm Planetary Gear Motor , 30mm Planetary Gearmotor , 30mm Brush DC Gear Motor

Coreless brush gear motors are a type of electric motor that features a coreless rotor and brush commutation.

• Their coreless rotor, made from fine wire coils, leads to a significant reduction in both weight and moment of inertia, which translates to enhanced efficiency and responsiveness.
• Brush commutation, facilitated by carbon brushes, ensures smooth operation, while the gear reduction mechanism allows for precise control over torque and speed, particularly beneficial in applications requiring high torque at lower speeds.

Advantages of Coreless Gear Motors:

• Super Efficient: These motors are all about saving energy with their smart coreless design—really efficient!
• Lightweight: They’re way lighter without that heavy iron core, making them perfect for devices you carry around.
• Quick to React: They can speed up and slow down super fast, thanks to low inertia.
• Nice and Compact: Small enough to fit almost anywhere!
• Fast as Lightning: With a lighter rotor, these motors can spin really quickly.
• Strong Torque: Those fine wire coils help spread out the current evenly, giving you more torque power!

Applications of Coreless Gear Motors:

• Robotics: Micro coreless gear motors are perfect for robot joints, letting them move fast and strong.
• Model Making: These tiny motors help your model planes and cars zoom around with all the speed and power they need.
• Medical Devices: They’re super important for medical tools, helping things like surgical robots move exactly where they should.
• Automation Equipment: Little coreless gear motors are used to make things like automatic doors and vending machines work just right!

Currently, our brush DC gear motors are available in a diverse range of sizes, from 12mm to 57mm in diameter.

Key Specifications for this Ø30mm dc brushed gear motor:

• Gearbox Outer Diameter: 27 mm
• Motor Outer Diameter: 30mm
• Rated Voltage: 12V DC to 48V DC or customized
• Gearbox Length: 26.8mm to 50.5mm
• Reduction Ratio: Wide range from 1: 3.5 to 1: 3061.3
• Rated Torque: wide range from 163mNm to 3000mNm or Customized
• Rated Speed: wide range from 2.5RPM to 2240RPM or Customized

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushed DC Gear Motors Φ12-57 mm , please

                         Check Here and download.

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.
