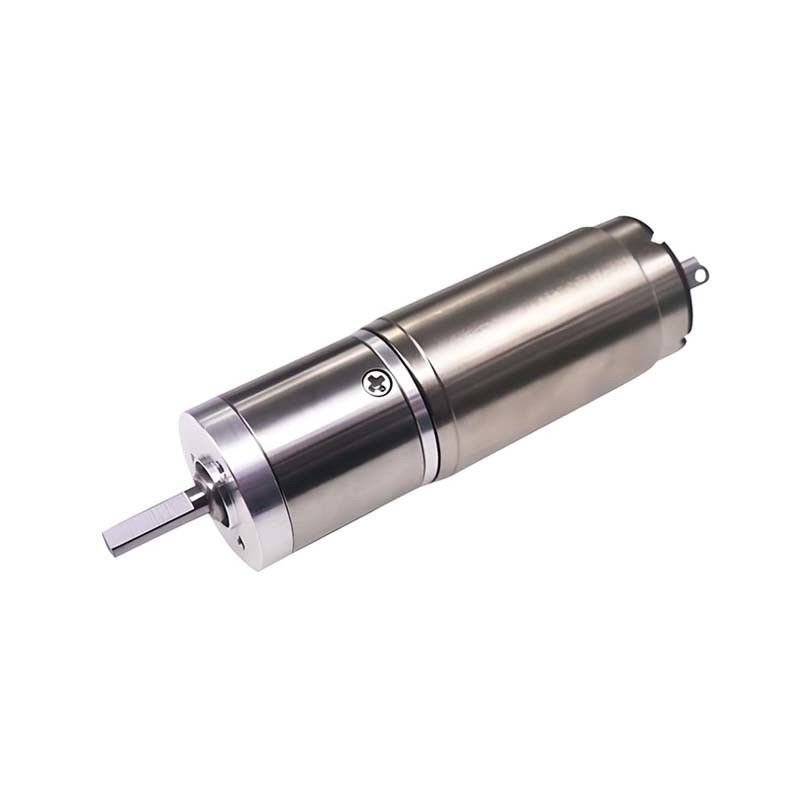

Customized DC Gear Motor 22mm Coreless 9V 1500mNm 2.0RPM Low Noise
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | PM22-Gear Ratio--RE2353BL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Product Type: | Dc Brushed Gear Motor | Rated Speed: | 2.0RPM To 2651RPM Or Customized |
|---|---|---|---|
| Rated Torque: | 54mNm To 1500mNm Or Customized | Rated Voltage: | 9V To 24V DC Or Customized |
| Applicaiton Field: | Medical Appliance, Robotics, Industrial Automation, Semiconductor Industry, Electric Power Tools Industry Automation | Warranty: | 3 Years |
| Highlight: | Customized DC Gear Motor,Coreless DC Gear Motor,Customized Brush DC Gear Motor |
||
Product Description
22mm DC Gear Motor Coreless Planetary Gearmotor 9V to 24V 1500mNm 2.0RPM to 2651RPM Customizable
Product Tag: 22mm Gearbox Motor, 22mm DC Gear Motor , 22mm Reduction Motor , 22mm DC Geared Motor , 22mm Gear Reduction Motor , 22mm Gear Reducer Motor , 22mm Gearhead Motor , 22mm DC Reduction Motor , 22mm Planetary Gear Motor , 22mm Planetary Gearmotor , 22mm Brush DC Gear Motor
Coreless brush gear motors are a type of electric motor that features a coreless rotor and brush commutation.
- With a rotor crafted from delicate wire coils instead of heavy iron, they reduce inertia, allowing for swift and efficient operation.
- Carbon brushes bring electricity to life in the rotor, while a clever gear system fine-tunes speed and torque for precise control.
Advantages of Coreless Gear Motors:
- Efficiency Champion: The coreless design means less energy wasted, leading to super-efficient motors.
- Lightweight Advantage: Without that heavy iron core, these motors are much easier to handle—perfect for portable devices.
- Quick Reaction Time: They accelerate and decelerate rapidly because of their low moment of inertia.
- Compact Fit: Their small size allows for installation in tight quarters where space is limited.
- High-Speed Capability: A lighter rotor means they can spin faster, achieving quicker motion.
- Enhanced Torque: Thanks to fine wire coils, the rotor manages current distribution well, resulting in better torque.
Applications of Coreless Gear Motors:
- Robotics: Micro coreless gear motors outperform traditional motors in providing rapid and robust joint movements in robotic systems.
- Model Making: In model making, small coreless gear motors deliver superior speed and torque compared to standard motors, enhancing performance.
- Medical Devices: These motors offer unparalleled precision for position control in medical equipment, surpassing the capabilities of older designs.
- Automation Equipment: When it comes to automation, tiny coreless gear motors provide better control and reliability than conventional options in devices like automatic doors and vending machines.
Key Specifications for this Ø22mm dc brushed gear motor:
- Gearbox Outer Diameter: 22 mm
- Motor Outer Diameter: 23mm
- Rated Voltage: 9V DC to 24V DC or customized
- Gearbox Length: 21.4mm to 38.4mm
- Reduction Ratio: Wide range from 1: 3.5 to 1: 3061.3
- Rated Torque: wide range from 54mNm to 1500mNm or Customized
- Rated Speed: wide range from 2.0RPM to 2651RPM or Customized
Remark:
- Please contact us for detailed specifications and drawings of the geared motor you need.
- We offer design and production services for customized geared motors (OEM & ODM).
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing
products at a more economical price point.
