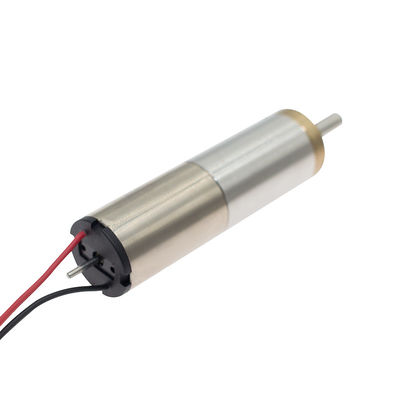

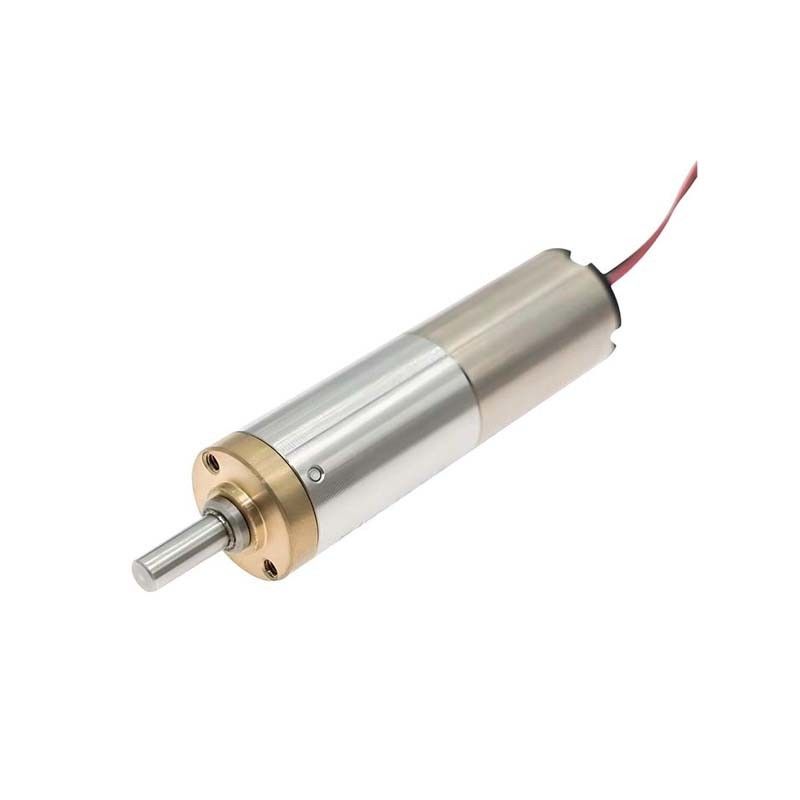

12mm Brush DC Gear Motor Slotless 24V 400mNm 3343RPM Customizable

12mm Brush DC Gear Motor Slotless Gearhead Motor 3V to 24V 400mNm 5.0RPM to 3343RPM Customizable

Product Tag: 12mm Gearbox Motor, 12mm DC Gear Motor , 12mm Reduction Motor , 12mm DC Geared Motor , 12mm Gear Reduction Motor , 12mm Gear Reducer Motor , 12mm Gearhead Motor , 12mm DC Reduction Motor , 12mm Planetary Gear Motor , 12mm Planetary Gearmotor , 12mm Brush DC Gear Motor

Coreless brush gear motors are electric motors that utilize a coreless rotor and brush commutation. Here are their key characteristics:

• Coreless brush gear motors are electric motors that utilize a coreless rotor and brush commutation. Their rotor, constructed from fine wire coils, minimizes weight and inertia, enhancing both efficiency and responsiveness.
• The use of carbon brushes allows for smooth electrical transfer, while the gear reduction system provides improved torque control at lower speeds.ticularly in applications requiring high torque at lower speeds.

Advantages of Coreless Gear Motors:

• High Efficiency: The coreless architecture significantly reduces energy dissipation, resulting in exceptional efficiency.
• Lightweight: By eliminating the heavy iron core, these motors achieve a lighter build, ideal for portable applications.
• Rapid Response: A reduced moment of inertia enables swift acceleration and deceleration.
• Compact Size: Their small dimensions allow for installation in tight spaces.
• High Speed: The lightweight rotor facilitates high rotational speeds, leading to quicker motion.
• High Torque: Utilizing fine wire coils ensures a consistent current distribution, enhancing torque performance.

Applications of Coreless Gear Motors:

• Robotics: Micro coreless gear motors serve as optimal components for joint drives in robotic systems, facilitating both high-speed and high-torque movements.
• Model Making: Small coreless gear motors efficiently power model aircraft and vehicles, providing the essential support for high-speed and high-torque operations.
• Medical Devices: These motors are crucial for achieving precise positional control in medical equipment, including surgical robots and various instruments.
• Automation Equipment: Compact coreless gear motors are employed for accurate control in automation applications, such as automatic doors, curtains, and vending machines.

Currently, our brush DC gear motors are available in a diverse range of sizes, from 12mm to 57mm in diameter.

Key Specifications for this Ø12mm dc brushed gear motor:

• Gearbox Outer Diameter: 12 mm
• Motor Outer Diameter:  13mm
• Rated Voltage: 3V DC to 24V DC or customized
• Gearbox Length: 14.3mm to 25.5mm
• Reduction Ratio:  Wide range from 1: 3.5 to 1: 2036.2
• Rated Torque:  wide range from 6.3mNm to 400mNm or Customized
• Rated Speed:  wide range from 5.0 RPM to 3343 RPM or Customized

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushed DC Gear Motors   Φ12-57 mm , please

                 Check Here and download.

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.
