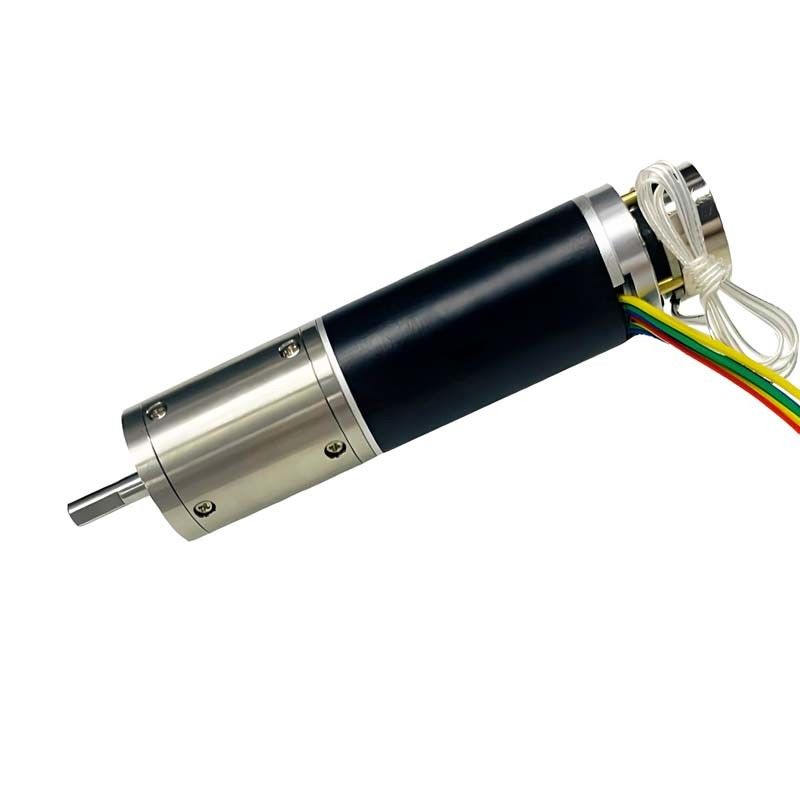

Lightweight Brushed DC Gear Motor 12V 32mm High Torque Geared Motor 3000mNm 2240RPM

32mm Gearbox Motor High Torque Planetary DC Geared Motor 12V to 48V 3000mNm 2.5RPM to 2240RPM

Product Tag:  32mm Gearbox Motor,  32mm DC Gear Motor ,  32mm Reduction Motor ,  32mm DC Geared Motor ,  32mm Gear Reduction Motor , 32mm Gear Reducer Motor ,  32mm Gearhead Motor ,  32mm DC Reduction Motor ,  32mm Planetary Gear Motor ,  32mm Planetary Gearmotor , 32mm Brush DC Gear Motor

Coreless brush gear motors are a type of electric motor that features a coreless rotor and brush commutation. Here are their key characteristics:

• Coreless Rotor: Unlike traditional motors with an iron core, coreless motors use a rotor made from fine wire coils. This design reduces weight and moment of inertia, enhancing efficiency and response times.
• Brush Commutation: These motors employ carbon brushes to transfer electrical current to the rotor windings, enabling smooth operation through effective commutation.
• Gear Reduction: Coreless brush gear motors typically incorporate a gear train that reduces speed while increasing torque, allowing for precise rotational control, particularly in applications requiring high torque at lower speeds.

Advantages of Coreless Gear Motors:

• High Efficiency: The coreless design minimizes energy loss, making these motors very efficient.
• Lightweight: The absence of a heavy iron core contributes to a lighter motor, which is advantageous in portable applications.
• Rapid Response: The low moment of inertia allows for quick acceleration and deceleration.
• Compact Size: Their small form factor enables use in constrained spaces.
• High Speed: With a lighter rotor, coreless gear motors can reach elevated rotational speeds, facilitating faster motion.
• High Torque: By employing fine wire coils, the rotor achieves a more uniform current distribution, resulting in enhanced torque capabilities.

Applications of Coreless Gear Motors:

• Robotics: Micro coreless gear motors are ideal for joint drives in robotic systems, providing high-speed and high-torque motion capabilities.
• Model Making: Small coreless gear motors power model aircraft and vehicles, delivering the necessary high-speed and high-torque support.
• Medical Devices: These motors enable precise position control in medical equipment, such as surgical robots and various medical instruments.
• Automation Equipment: Tiny coreless gear motors are utilized for precise control in automation applications, including automatic doors, curtains, and vending machines.

Currently, our brush DC gear motors are available in a diverse range of sizes, from 12mm to 57mm in diameter.

Key Specifications for this Ø32mm dc brushed gear motor:

• Gearbox Outer Diameter: 32 mm
• Motor Outer Diameter: 30mm
• Rated Voltage: 12V DC to 48V DC or customized
• Gearbox Length: 26.8mm to 50.5mm
• Reduction Ratio: Wide range from 1: 3.5 to 1: 3061.3
• Rated Torque: wide range from 163mNm to 3000mNm or Customized
• Rated Speed: wide range from 2.5RPM to 2240RPM or Customized

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushed DC Gear Motors Φ12-57 mm , please

                         Check Here and download.

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.
