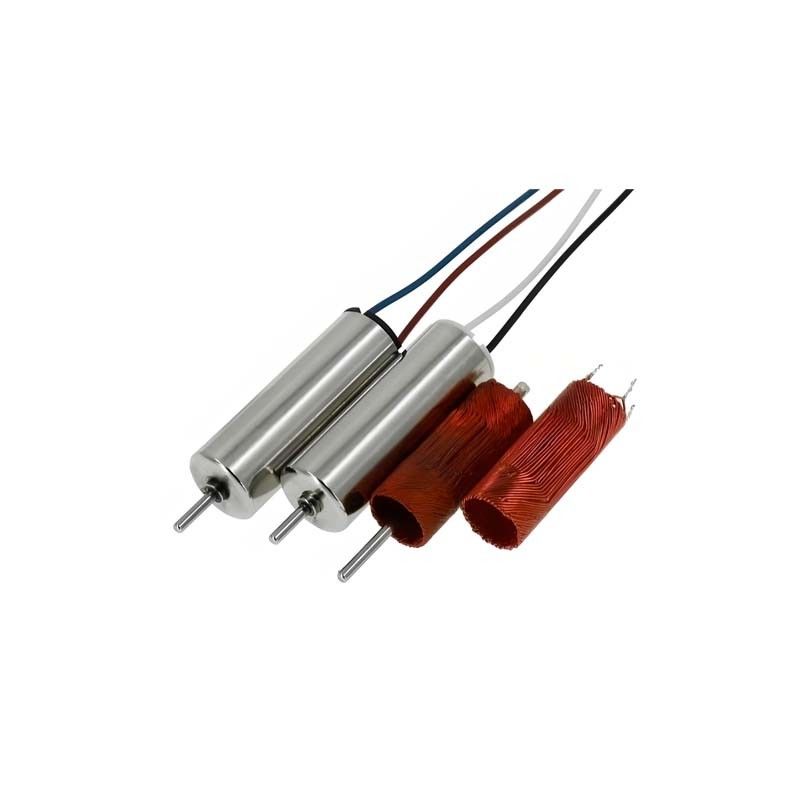

Industrial 8mm Coreless Micro DC Motor 0.3mNm 8620rpm 12V Customizable
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE0816 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | 8mm Coreless DC Motor | Rated Torque:: | 0.3mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 2.4V To 12V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment, Industrial Automation Fields. |
| Warranty: | 2 Years | Motor Dimension: | 8mm (motor Diameter)*16mm (body Length) |
| Highlight: | Industrial Coreless Micro DC Motor,Customizable Coreless Micro DC Motor,Industrial High Torque Brushed Motor |
||
Product Description
8mm Micro Motor Brush type DC Motor 0.3mNm 8620rpm 2.4V to 12V Customizable
Product Tag: 8mm Electric Motor, 8mm Brush Motor, 8mm Micro Motor, 8mm Micromotor, 8mm Brushed Motor, 8mm DC Motor, 8mm Coreless Motor, 8mm Brush DC Motor, 8mm Coreless DC Motor, 8mm DC Coreless Motor, 8mm Brushed DC Motor
- Coreless windings represent a fundamental aspect of our precision DC coreless motors, which are classified as micro electric motors.
- The integrated architecture, featuring a symmetrical winding, commutator, and motor shaft, guarantees smooth and stable operation while minimizing vibration.
- These Brush Motors present multiple benefits, including low inertia for rapid acceleration, high efficiency, absence of cogging, and consistent linear output.
- Furthermore, they demonstrate superior speed regulation and servo performance.
- Our Coreless Motor lineup ranges from 8mm to 40mm in diameter, with the capability to customize dimensions and specifications as needed.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø8mm Brushed Coreless DC Motor
- Motor Dimension: 8mm (motor diameter)*16mm (body length)
- Rated Voltage: 2.4V to 12V DC or Customized
- Rated Torque: 0.3mNm or Customized
- Rated Speed: 8620rpm to 10500rpm or Customized
- Rated Power: 0.33W or Customized
- Brushed DC Motor can be assembled with gearboxes.
To see the product catalogue on our Brush Coreless Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
