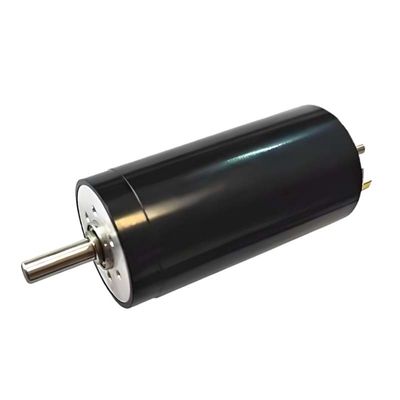

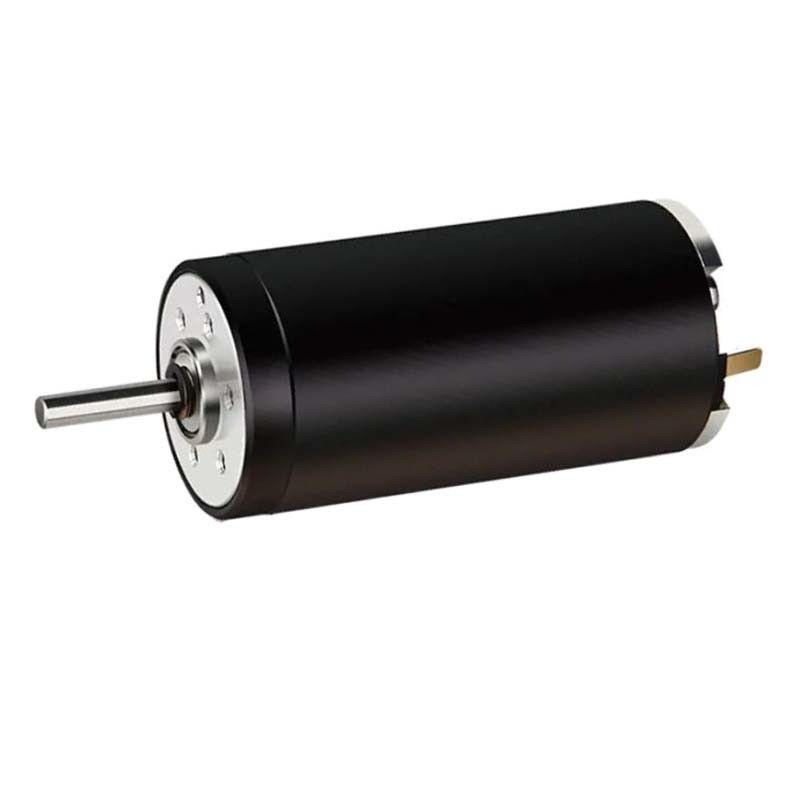

Customizable 35mm Brush DC Motors Coreless 92 Watt 4640rpm 12V High Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE3571 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | Coreless Brush Motor | Rated Torque:: | 190mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 12V To 48V DC Or Customized | Applicaiton Field: | Motorized Golf Caddy, Electric Shawarma Knife, Turkish Kebab Knife, Doner Kebab Meat Slicer, Electric Strapping Machine |
| Warranty: | 2 Years | Motor Dimension: | 35mm (motor Diameter)*71mm (body Length) |
| Highlight: | Customizable Brush DC Motors,Coreless Brush DC Motors,Customizable DC Brushed Motor |
||
Product Description
35mm Brush DC Motors Alternative to MAXON RE35 Coreless motor 92 Watt 4640rpm 12V to 48V Customizable
Product Tag: 35mm Electric Motor, 35mm Brush Motor, 35mm Micro Motor, 35mm Micromotor, 35mm Brushed Motor, 35mm DC Motor, 35mm Coreless Motor, 35mm Brush DC Motor, 35mm Coreless DC Motor, 35mm DC Coreless Motor, 35mm Brushed DC Motor
- Slotless or coreless windings are key features in our precision coreless brush motors (micro motors).
- The design includes a symmetrical winding, commutator, and motor shaft, which help them operate smoothly with less vibration.
- These brush motors offer great benefits like low inertia for fast acceleration, high efficiency, no cogging, and steady linear output. They’re also great for speed control and servos.
- Our range of slotless brushed motors comes in sizes from 8 mm to 40 mm in diameter, and we can easily customize them to your needs!
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø35mm Coreless motor
- Motor Dimension: 35mm (motor diameter)*71mm (body length)
- Rated Voltage: 12V to 48V DC or Customized
- Rated Torque: 190mNm or Customized
- Rated Speed: 4640rpm to 6800rpm or Customized
- Rated Power: 92W or Customized
- Can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Slotless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
