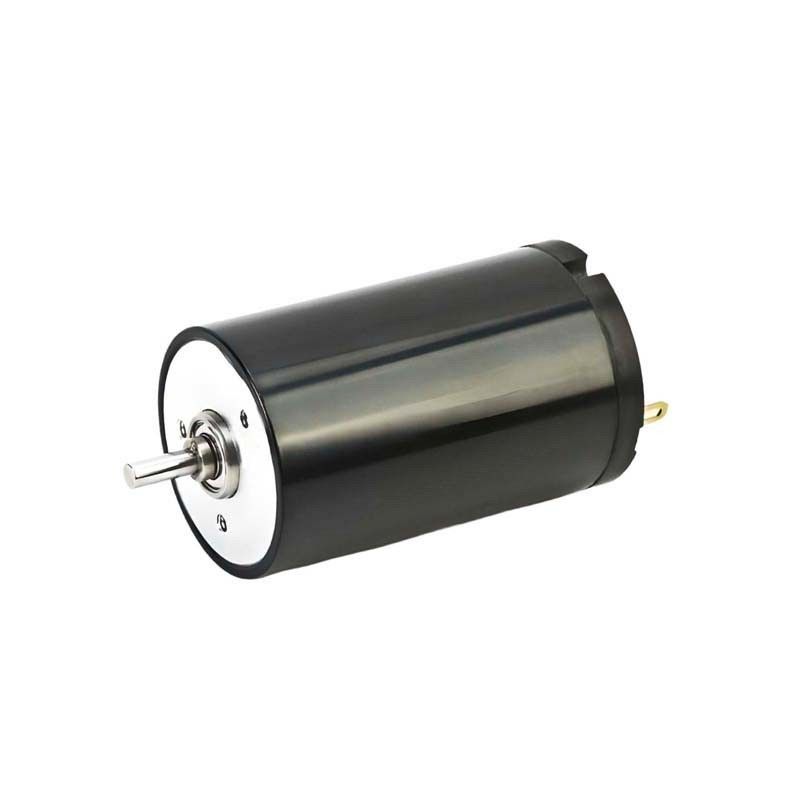

23mm 27.5 Watt Coreless Brushed Motor 9860rpm 24V High Speed and Acceleration
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE2347 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 89000PCS per Month |
|
Detail Information |
|||
| Product Type: | Coreless Motors- Brush Micro Motor | Rated Torque:: | 9mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 9V To 24V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment And Devices, Healthcare Products, Automotive, Robotics, And Industrial Automation |
| Warranty: | 2 Years | Motor Dimension: | 23mm (motor Diameter)*47mm (body Length) |
| Highlight: | High Speed Coreless Brushed Motor,High Acceleration Coreless Brushed Motor,High Speed Coreless Brush DC Motor |
||
Product Description
23mm Coreless Motor Brush Micromotor 27.5 Watt 9860rpm 9V to 24V Customizable
Product Tag: 23mm Electric Motor, 23mm Brush Motor, 23mm Micro Motor, 23mm Micromotor, 23mm Brushed Motor, 23mm DC Motor, 23mm Coreless Motor, 23mm Brush DC Motor, 23mm Coreless DC Motor, 23mm DC Coreless Motor, 23mm Brushed DC Motor
- Slotless or coreless windings play a crucial role in the precision coreless brush motor (micro motors) we offer.
- Our integrated design includes a symmetrical winding, commutator, and motor shaft, ensuring smooth and stable operation while minimizing vibration.
- These brush motors deliver several advantages, such as low inertia for quick acceleration, high efficiency, no cogging, and consistent linear output performance. They are also highly effective in speed regulation and servo applications.
- Our collection of coreless brushed motors ranges from 8 mm to 40 mm in diameter, and we can readily accommodate custom sizes and specifications.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø23mm DC Motor
- Motor Dimension: 23mm (motor diameter)*47mm (body length)
- Rated Voltage: 9V to 24V DC or Customized
- Rated Torque: 28.1mNm or Customized
- Rated Speed: 6160rpm to 9860rpm or Customized
- Rated Power: 27.5W or Customized
- Can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Coreless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
