Lightweight Brushed DC Motor 8mm 0.3mNm 8620rpm 12V Brushed DC Electric Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE0816 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | 8mm Micro Motor | Rated Torque:: | 0.3mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 2.4V To 12V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment, Industrial Automation Fields. |
| Warranty: | 2 Years | Motor Dimension: | 8mm (motor Diameter)*16mm (body Length) |
| Highlight: | Lightweight Brushed DC Motor,8620rpm Brushed DC Motor,Lightweight Brushed DC Electric Motor |
||
Product Description

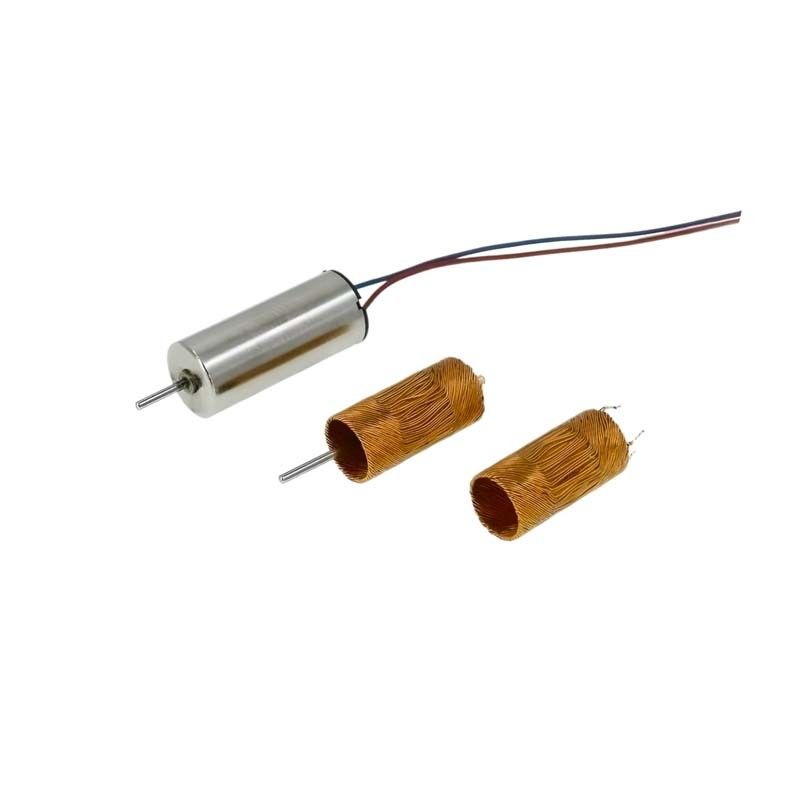

8mm Brushed DC Electric Motors 0.3mNm 8620rpm 2.4V to 12V DC Customizable Coreless Micromotor
Product Tag: 8mm Electric Motor, 8mm Brush Motor, 8mm Micro Motor, 8mm Micromotor, 8mm Brushed Motor, 8mm DC Motor, 8mm Coreless Motor, 8mm Brush DC Motor, 8mm Coreless DC Motor, 8mm DC Coreless Motor, 8mm Brushed DC Motor
- It combines a symmetrical winding, commutator, and motor shaft, which means they run super smoothly with barely any vibration.
- These Brush Motors are fantastic because they accelerate quickly, are really efficient, and don’t have that annoying cogging.
- Plus, they’re great at speed regulation and servo performance! Our range of Coreless Motors comes in sizes from 8mm to 40mm, and if you need something different, we can totally customize it for you
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø8mm Brushed Coreless DC Motor
- Motor Dimension: 8mm (motor diameter)*16mm (body length)
- Rated Voltage: 2.4V to 12V DC or Customized
- Rated Torque: 0.3mNm or Customized
- Rated Speed: 8620rpm to 10500rpm or Customized
- Rated Power: 0.33W or Customized
- Brushed DC Motor can be assembled with gearboxes.
To see the product catalogue on our Brush Coreless Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
