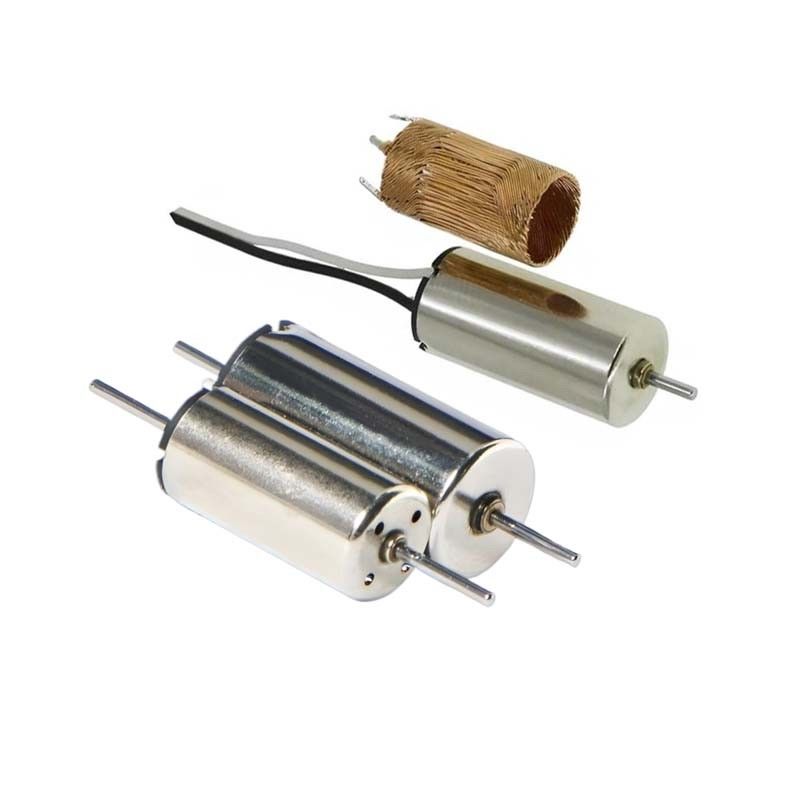

Customized 8mm Micro Electric Motor 0.3mNm 8620rpm 12V DC Carbon Brush DC Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE0816 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | 8mm Coreless DC Motor | Rated Torque:: | 0.3mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 2.4V To 12V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment, Industrial Automation Fields. |
| Warranty: | 2 Years | Motor Dimension: | 8mm (motor Diameter)*16mm (body Length) |
| Highlight: | Customized Micro Electric Motor,8mm Micro Electric Motor,Customized Carbon Brush DC Motor |
||
Product Description
8mm Micro Electric Motor 0.3mNm 8620rpm 2.4V to 12V DC Customizable Carbon Brush DC Motor
Product Tag: 8mm Electric Motor, 8mm Brush Motor, 8mm Micro Motor, 8mm Micromotor, 8mm Brushed Motor, 8mm DC Motor, 8mm Coreless Motor, 8mm Brush DC Motor, 8mm Coreless DC Motor, 8mm DC Coreless Motor, 8mm Brushed DC Motor
- The implementation of coreless windings is a critical characteristic of our precision DC coreless motors, categorized as micro electric motors.
- This integrated design encompasses a symmetrical winding, commutator, and motor shaft, which collectively facilitate smooth and stable operation while effectively reducing vibration.
- The Brush Motors exhibit numerous advantages, including low inertia conducive to rapid acceleration, high efficiency, absence of cogging phenomena, and linear output performance.
- Moreover, these motors demonstrate exceptional capabilities in speed regulation and servo performance.
- Our portfolio of Coreless Motors extends from diameters of 8mm to 40mm, with provisions for customization to accommodate alternative dimensions and specifications.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø8mm Brushed Coreless DC Motor
- Motor Dimension: 8mm (motor diameter)*16mm (body length)
- Rated Voltage: 2.4V to 12V DC or Customized
- Rated Torque: 0.3mNm or Customized
- Rated Speed: 8620rpm to 10500rpm or Customized
- Rated Power: 0.33W or Customized
- Brushed DC Motor can be assembled with gearboxes.
To see the product catalogue on our Brush Coreless Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
