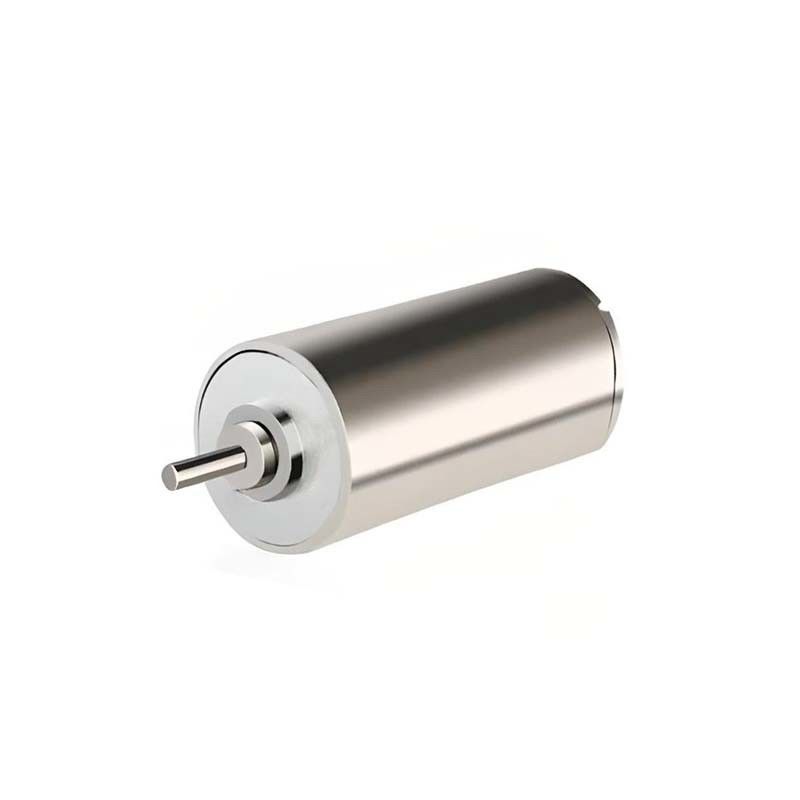

Corrosion Proof 13mm Brushed DC Motor 1.32mNm 8400rpm 3V Permanent Magnet DC Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE1322 Brushed Motor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 22 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | 13mm Coreless DC Motor | Rated Torque:: | 1.32mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 3V To 15V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment, Industrial Automation Fields. |
| Warranty: | 2 Years | Motor Dimension: | 13mm (motor Diameter)*22mm (body Length) |
| Highlight: | Corrosion Proof Brushed DC Motor,Brushed DC Motor 8400rpm,13mm Permanent Magnet DC Motor |
||
Product Description
13mm Brushed DC Motor Coreless Micromotor 1.32mNm 8400rpm 3V to 15V Customizable
Product Tag: 13mm Electric Motor, 13mm Brush Motor, 13mm Micro Motor, 13mm Micromotor, 13mm Brushed Motor, 13mm DC Motor, 13mm Coreless Motor, 13mm Brush DC Motor, 13mm Coreless DC Motor, 13mm DC Coreless Motor, 13mm Brushed DC Motor
-
Coreless windings are a fundamental aspect of our precision Coreless brushed DC motors (Micro motors).
- Their integrated design features a symmetrical winding, commutator, and motor shaft, which contribute to smooth, stable operation and reduced vibration.
- These motors provide numerous benefits, including low inertia for rapid acceleration, high efficiency, absence of cogging, and linear output performance. They also excel in speed regulation and servo capabilities.
- Our range of slotless brushed motors varies in diameter from 8 mm to 40 mm, and we can easily accommodate custom dimensions and specifications.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this 13mm Electric Motor / Brush Coreless Motor
- Motor Dimension: 13mm (motor diameter)*22mm (body length)
- Rated Voltage: 3V to 15V DC or Customized
- Rated Torque: 1.32mNm or Customized
- Rated Speed: 7050rpm to 8400rpm or Customized
- Rated Power: 1.16W or Customized
- Can be assembled with gearboxes, brakes and encoders
To see the product catalogue on our Coreless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
