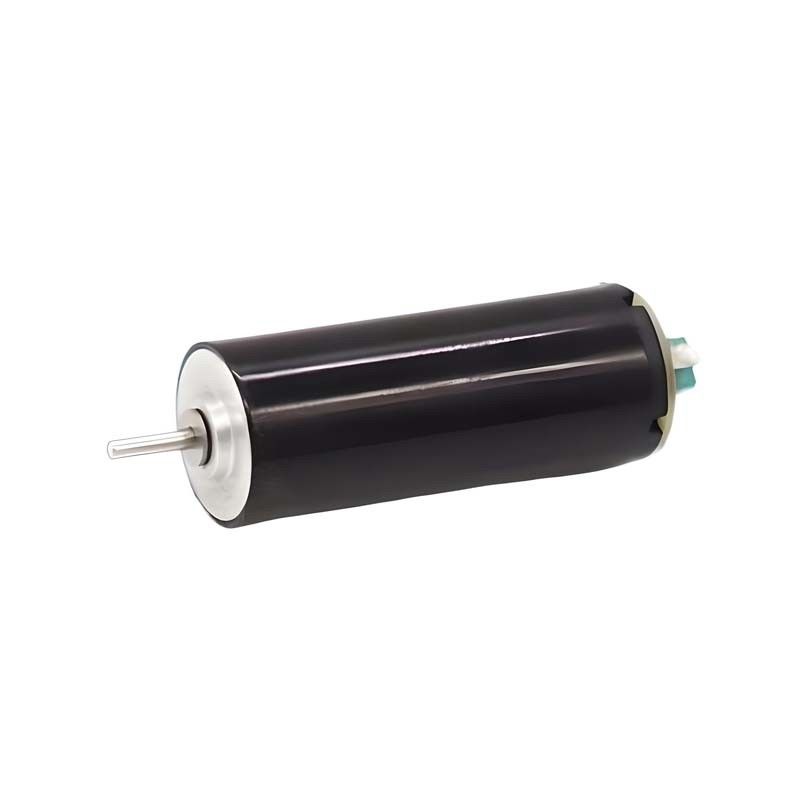

Fatigue Resistant 13mm Micro Brushed DC Motor 1.32mNm 8400rpm 3V
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE1322 Brushed Motor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 22 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | Brush Type Coreless DC Motors | Rated Torque:: | 1.32mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 3V To 15V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment, Industrial Automation Fields. |
| Warranty: | 2 Years | Motor Dimension: | 13mm (motor Diameter)*22mm (body Length) |
| Highlight: | Fatigue Resistant Micro Brushed DC Motor,3V Micro Brushed DC Motor,Fatigue Resistant |
||
Product Description
13mm Micromotor Brushed DC Motor 1.32mNm 8400rpm 3V to 15V Customizable
Product Tag: 13mm Electric Motor, 13mm Brush Motor, 13mm Micro Motor, 13mm Micromotor, 13mm Brushed Motor, 13mm DC Motor, 13mm Coreless Motor, 13mm Brush DC Motor, 13mm Coreless DC Motor, 13mm DC Coreless Motor, 13mm Brushed DC Motor
-
Coreless windings are a big deal when it comes to our precision DC Coreless Motors (Micro Brush DC Motor).
- They’ve got this clever design that includes a symmetrical winding, commutator, and motor shaft, which really helps with smooth and stable operation while cutting down on vibrations.
- These Coreless DC Motors offer a ton of benefits, like super low inertia for quick acceleration, great efficiency, and no pesky cogging. Plus, they perform really well in terms of speed control and servos.
- We have a range of sizes from 8 mm to 40 mm, and we’re totally up for custom sizes and specs if you need them!
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this 13mm Electric Motor / Brush Coreless Motor
- Motor Dimension: 13mm (motor diameter)*22mm (body length)
- Rated Voltage: 3V to 15V DC or Customized
- Rated Torque: 1.32mNm or Customized
- Rated Speed: 7050rpm to 8400rpm or Customized
- Rated Power: 1.16W or Customized
- Can be assembled with gearboxes, brakes and encoders
To see the product catalogue on our Coreless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
