Micro Permanent Magnet DC Motor 16mm 1.57 Watt 9980rpm 6V Customizable
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE1625 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 21 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 80000PCS per Month |
|
Detail Information |
|||
| Product Type: | 16mm Coreless Motor | Rated Torque:: | 1.5mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 6V To 24V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment And Devices, Healthcare Products, Automotive, Robotics, And Industrial Automation |
| Warranty: | 2 Years | Motor Dimension: | 16mm (motor Diameter)*25mm (body Length) |
| Highlight: | Micro Permanent Magnet DC Motor,Customizable Permanent Magnet DC Motor,Customizable PMDC Brushed Motor |
||
Product Description

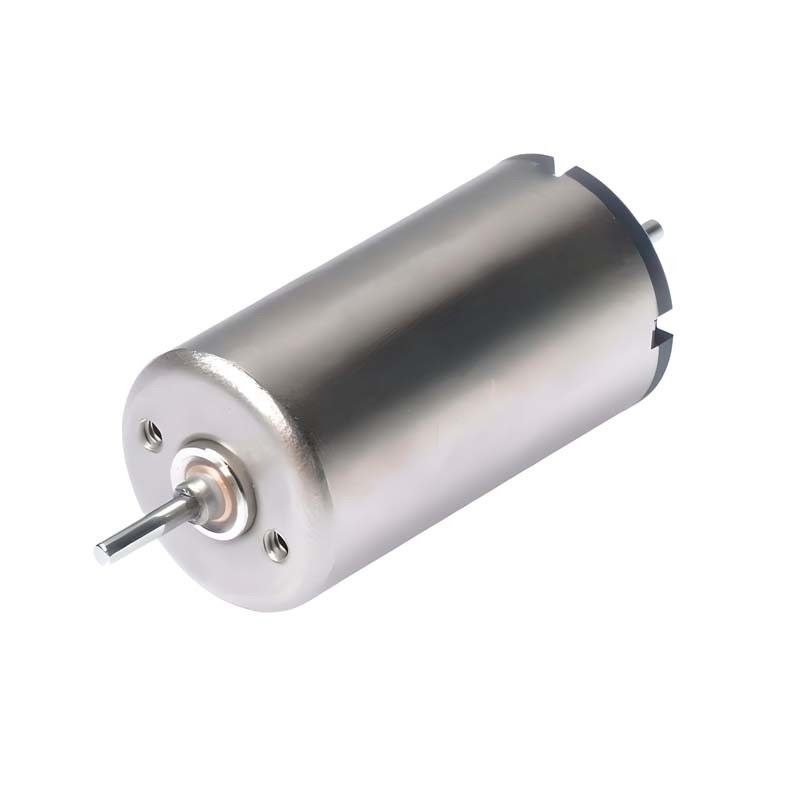

16mm Micro Motor permanent magnet Brushed DC Motor1.57 Watt 9980rpm 6V to 24V Customizable
Product Tag: 16mm Electric Motor, 16mm Brush Motor, 16mm Micro Motor, 16mm Micromotor, 16mm Brushed Motor, 16mm DC Motor, 16mm Coreless Motor, 16mm Brush DC Motor, 16mm Coreless DC Motor, 16mm DC Coreless Motor, 16mm Brushed DC Motor
- Coreless windings are essential components in our precision brushed DC coreless motors (Brush Motors).
- The integrated design features a symmetrical winding, commutator, and motor shaft, which together facilitate smooth and stable operation while reducing vibration.
- These Micro Motors offer numerous benefits, including low inertia for rapid acceleration, high efficiency, the absence of cogging, and reliable linear output performance. They also excel in speed regulation and servo applications.
- Our range of Brush DC Motors varies from 8 mm to 40 mm in diameter, with the capability to customize sizes and specifications.
If you're currently using Coreless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø16mm DC Coreless Motor
- Motor Dimension: 16mm (motor diameter)*25mm (body length)
- Rated Voltage: 6V to 24V DC or Customized
- Rated Torque: 1.5mNm or Customized
- Rated Speed: 5860rpm to 9980rpm or Customized
- Rated Power: 1.57W or Customized
- Coreless DC Motors can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Brush dc motor coreless type Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
