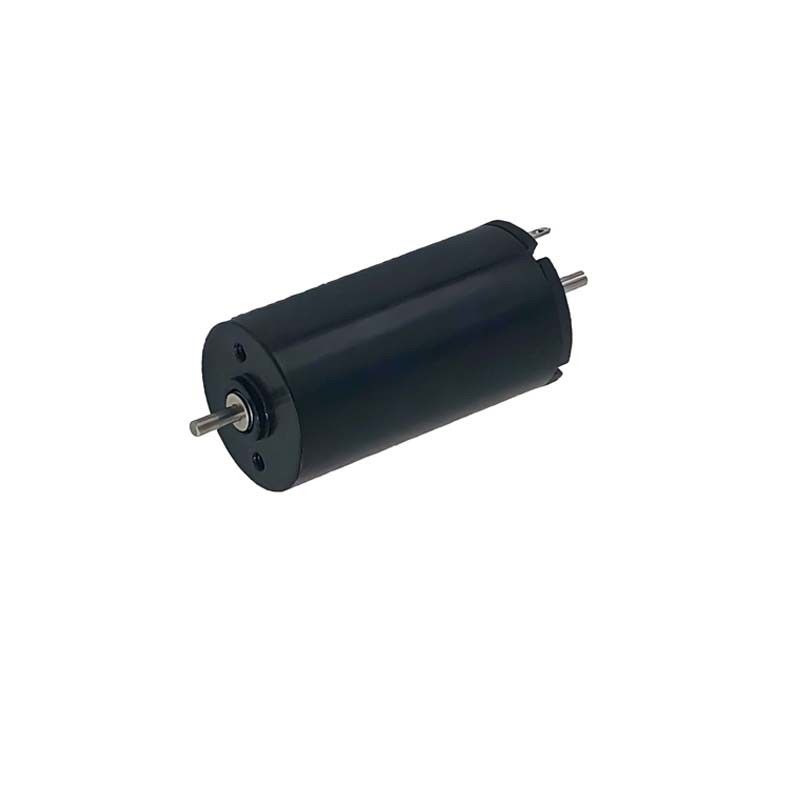

16mm DC Motor Carbon Brush 1.57 Watt 9980rpm 24V High Efficiency Anti Wear
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE1625 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 21 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 80000PCS per Month |
|
Detail Information |
|||
| Product Type: | 16mm Brushed DC Motor | Rated Torque:: | 1.5mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 6V To 24V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment And Devices, Healthcare Products, Automotive, Robotics, And Industrial Automation |
| Warranty: | 2 Years | Motor Dimension: | 16mm (motor Diameter)*25mm (body Length) |
| Highlight: | 16mm DC Motor Carbon Brush,24V DC Motor Carbon Brush,High Efficiency Brushed Coreless Motor |
||
Product Description
16mm DC Motor carbon Brush 1.57 Watt 9980rpm 6V to 24V Customizable Coreless DC Motor
Product Tag: 16mm Electric Motor, 16mm Brush Motor, 16mm Micro Motor, 16mm Micromotor, 16mm Brushed Motor, 16mm DC Motor, 16mm Coreless Motor, 16mm Brush DC Motor, 16mm Coreless DC Motor, 16mm DC Coreless Motor, 16mm Brushed DC Motor
- In the world of precision brushed DC coreless motors (Brush Motors), coreless windings are the unsung heroes.
- Our cleverly integrated design combines a symmetrical winding, commutator, and motor shaft, resulting in a motor that operates smoothly and reduces vibrations to a minimum.
- These Micro Motors bring a host of advantages: they accelerate quickly thanks to their low inertia, they operate with high efficiency, and they eliminate cogging, providing a consistent linear output. Whether for speed regulation or servo applications, they excel in performance.
- Plus, our Brush DC Motors come in a variety of sizes from 8 mm to 40 mm, with the ability to customize them to meet your specific needs!
If you're currently using Coreless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø16mm DC Coreless Motor
- Motor Dimension: 16mm (motor diameter)*25mm (body length)
- Rated Voltage: 6V to 24V DC or Customized
- Rated Torque: 1.5mNm or Customized
- Rated Speed: 5860rpm to 9980rpm or Customized
- Rated Power: 1.57W or Customized
- Coreless DC Motors can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Brush dc motor coreless type Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
