Ease Control Carbon Brush Motor Micro 22mm 3.61 Watt 6900rpm 36V Customizable
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE2225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 80000PCS per Month |
|
Detail Information |
|||
| Product Type: | 2mm Brushed DC Motor | Rated Torque:: | 5mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 6V To 36V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment And Devices, Healthcare Products, Automotive, Robotics, And Industrial Automation |
| Warranty: | 2 Years | Motor Dimension: | 22mm (motor Diameter)*25mm (body Length) |
| Highlight: | Ease Control Carbon Brush Motor,Customizable Carbon Brush Motor,Customizable Coreless Micro Motor |
||
Product Description

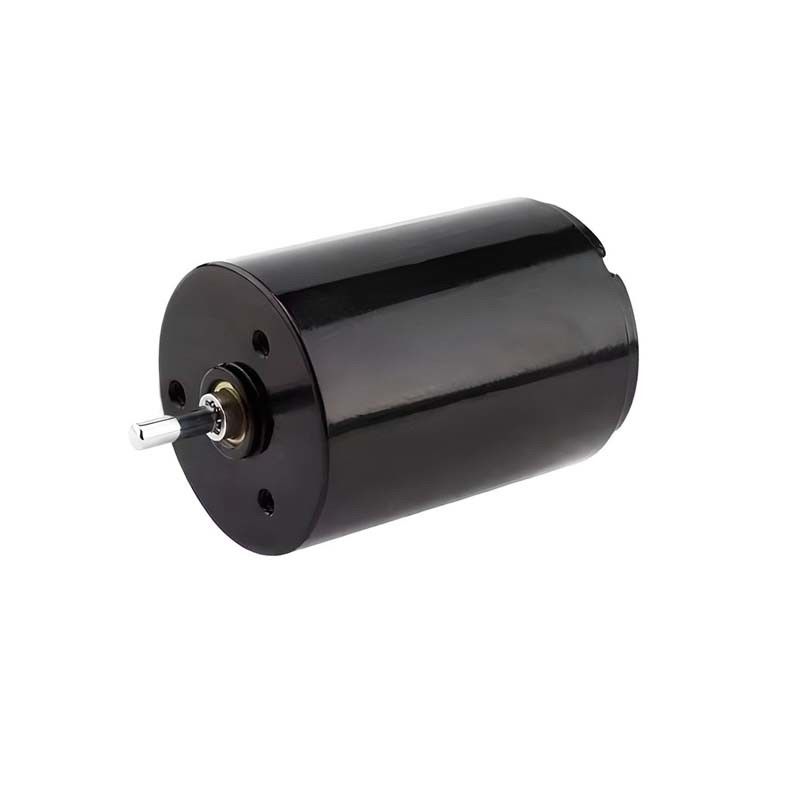

22mm Electric Motor carbon Brush Micromotor 3.61 Watt 6900rpm 6V to 36V Customizable
Product Tag: 22mm Electric Motor, 22mm Brush Motor, 22mm Micro Motor, 22mm Micromotor, 22mm Brushed Motor, 22mm DC Motor, 22mm Coreless Motor, 22mm Brush DC Motor, 22mm Coreless DC Motor, 22mm DC Coreless Motor, 22mm Brushed DC Motor
- Coreless windings are essential in the precision coreless motors (micro motors) that we provide.
- Our integrated design features a symmetrical winding, commutator, and motor shaft, which ensure smooth and stable operation while effectively reducing vibration.
- These coreless motors offer numerous benefits, including low inertia for rapid acceleration, high efficiency, the elimination of cogging, and reliable linear output performance. They also perform exceptionally well in speed regulation and servo applications.
- Our range of brush-type coreless motors spans diameters from 8 mm to 40 mm, and we can easily accommodate custom dimensions and specifications.
If you're currently using coreless dc motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø22mm brush DC Coreless Motor
- Motor Dimension: 22mm (motor diameter)*25mm (body length)
- Rated Voltage: 6V to 36V DC or Customized
- Rated Torque: 5mNm or Customized
- Rated Speed: 6320rpm to 6900rpm or Customized
- Rated Power: 3.61W or Customized
- Can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Coreless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
