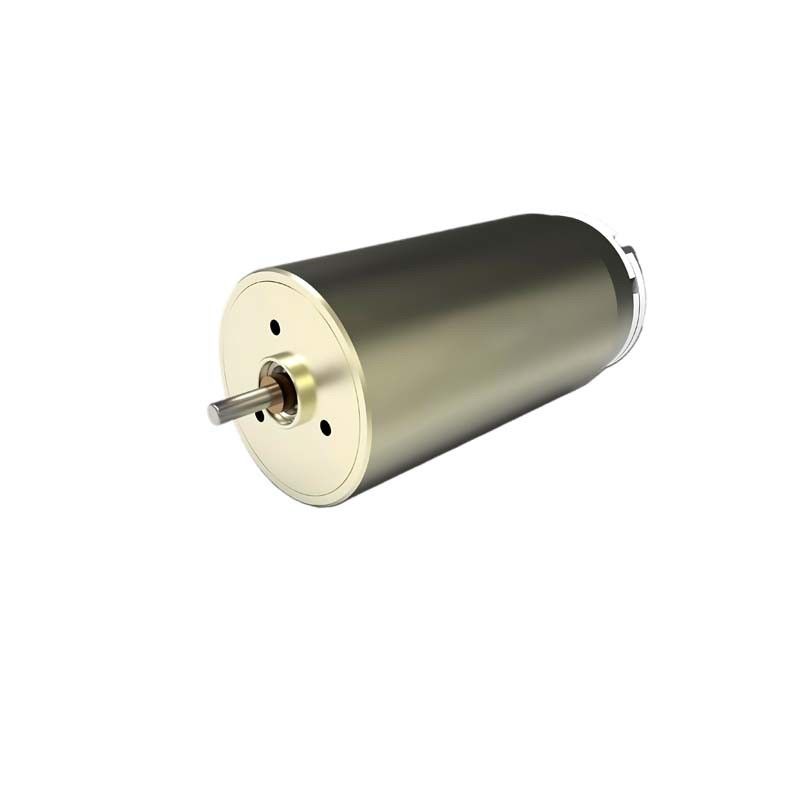

Corrosion Resistance 23mm Brushed DC Motor 27.5 Watt 9860rpm 9V Electric Brush Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE2347 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 89000PCS per Month |
|
Detail Information |
|||
| Product Type: | 23mm DC Coreless Motor | Rated Torque:: | 9mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 9V To 24V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment And Devices, Healthcare Products, Automotive, Robotics, And Industrial Automation |
| Warranty: | 2 Years | Motor Dimension: | 23mm (motor Diameter)*47mm (body Length) |
| Highlight: | Corrosion Resistance Brushed DC Motor,9V Brushed DC Motor,Corrosion Resistance Electric Brush Motor |
||
Product Description
23mm Electric Brush Motor 27.5 Watt 9860rpm 9V to 24V Customizable Coreless Carbon Brushed DC Motors
Product Tag: 23mm Electric Motor, 23mm Brush Motor, 23mm Micro Motor, 23mm Micromotor, 23mm Brushed Motor, 23mm DC Motor, 23mm Coreless Motor, 23mm Brush DC Motor, 23mm Coreless DC Motor, 23mm DC Coreless Motor, 23mm Brushed DC Motor
- Slotless or coreless windings are integral to the precision coreless brush motors (micro motors) in our portfolio.
- Our cohesive design incorporates a symmetrical winding, a commutator, and a motor shaft, facilitating smooth and stable operation while effectively reducing vibration.
- These brush motors offer significant benefits, including low inertia for rapid acceleration, high efficiency, absence of cogging, and reliable linear output performance. They excel in speed regulation and servo applications.
- Our range of coreless brushed motors spans from 8 mm to 40 mm in diameter, with the capability to accommodate custom sizes and specifications.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø23mm DC Motor
- Motor Dimension: 23mm (motor diameter)*47mm (body length)
- Rated Voltage: 9V to 24V DC or Customized
- Rated Torque: 28.1mNm or Customized
- Rated Speed: 6160rpm to 9860rpm or Customized
- Rated Power: 27.5W or Customized
- Can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Coreless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
