High Torque Brushed DC Motor 73 Watt 7760rpm 12V 30mm with Speed Control
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE3068 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 92000PCS per Month |
|
Detail Information |
|||
| Product Type: | 30mm Brush Motor | Rated Torque:: | 89.7mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 12V To 48V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment And Devices, Healthcare Products, Automotive, Robotics, And Industrial Automation |
| Warranty: | 2 Years | Motor Dimension: | 30mm (motor Diameter)*68mm (body Length) |
| Highlight: | High Torque Brushed DC Motor,Speed Control Brushed DC Motor,High Torque Brushed Servo Motor |
||
Product Description

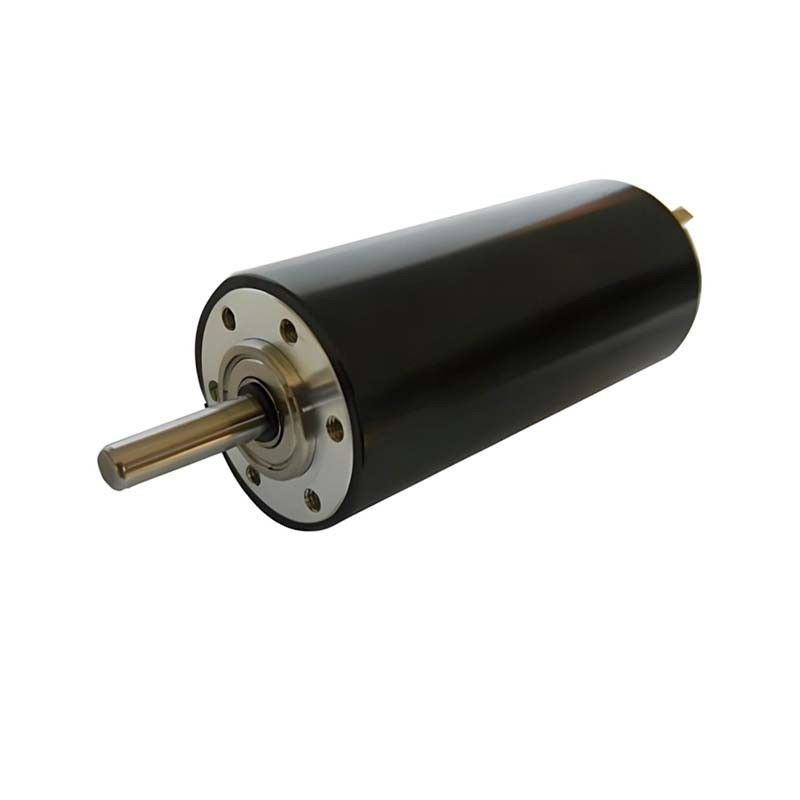

30mm Brushed DC Motor 73 Watt 7760rpm 12V to 48V Customizable Coreless Micromotor
Product Tag: 30mm Electric Motor, 30mm Brush Motor, 30mm Micro Motor, 30mm Micromotor, 30mm Brushed Motor, 30mm DC Motor, 30mm Coreless Motor, 30mm Brush DC Motor, 30mm Coreless DC Motor, 30mm DC Coreless Motor, 30mm Brushed DC Motor
- Slotless or coreless windings are fundamental to the operation of the precision coreless brush motors (micro motors) we provide.
- Our design features a symmetrical winding, commutator, and motor shaft, which together ensure smooth and stable operation while significantly reducing vibration.
- These micromotors offer numerous benefits, including low inertia for rapid acceleration, high efficiency, the elimination of cogging, and reliable linear output performance. They are particularly effective in speed regulation and servo applications.
- Our range of coreless brushed motors is available in diameters from 8 mm to 40 mm, with the capability to accommodate custom sizes and specifications.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø30mm Coreless motor
- Motor Dimension: 30mm (motor diameter)*68mm (body length)
- Rated Voltage: 9V to 24V DC or Customized
- Rated Torque: 89.7mNm or Customized
- Rated Speed: 7760rpm or Customized
- Rated Power: 73W or Customized
- Can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Slotless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
