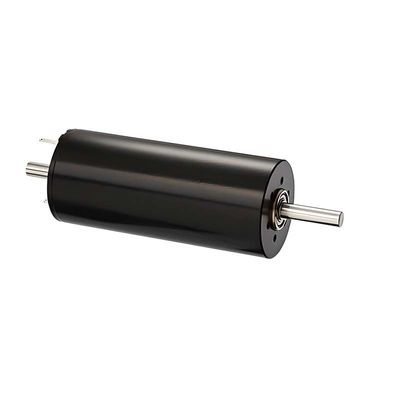

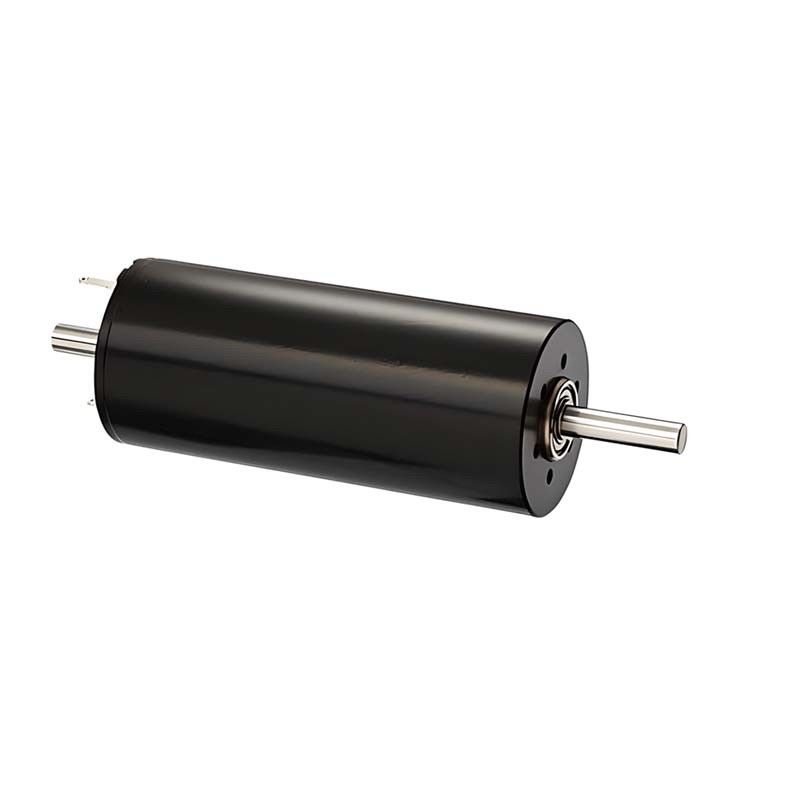

30mm 73 Watt 7760rpm 30mm Brushed Motor Customizable DC Coreless Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE3068 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 92000PCS per Month |
|
Detail Information |
|||
| Product Type: | 30mm Micro Motor | Rated Torque:: | 89.7mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 12V To 48V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment And Devices, Healthcare Products, Automotive, Robotics, And Industrial Automation |
| Warranty: | 2 Years | Motor Dimension: | 30mm (motor Diameter)*68mm (body Length) |
| Highlight: | 30mm 12v Brushed DC Motor,Customizable 12v Brushed DC Motor,Customizable DC Coreless Motor |
||
Product Description
30mm Brushed Motor 73 Watt 7760rpm 12V to 48V Customizable DC Coreless Motor
Product Tag: 30mm Electric Motor, 30mm Brush Motor, 30mm Micro Motor, 30mm Micromotor, 30mm Brushed Motor, 30mm DC Motor, 30mm Coreless Motor, 30mm Brush DC Motor, 30mm Coreless DC Motor, 30mm DC Coreless Motor, 30mm Brushed DC Motor
- Slotless or coreless windings play a crucial role in the precision coreless brush motor (micro motors) we offer.
- Our integrated design includes a symmetrical winding, commutator, and motor shaft, ensuring smooth and stable operation while minimizing vibration.
- These Micromotors deliver several advantages, such as low inertia for quick acceleration, high efficiency, no cogging, and consistent linear output performance. They are also highly effective in speed regulation and servo applications.
- Our collection of Coreless brushed motors ranges from 8 mm to 40 mm in diameter, and we can readily accommodate custom sizes and specifications.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø30mm Coreless motor
- Motor Dimension: 30mm (motor diameter)*68mm (body length)
- Rated Voltage: 9V to 24V DC or Customized
- Rated Torque: 89.7mNm or Customized
- Rated Speed: 7760rpm or Customized
- Rated Power: 73W or Customized
- Can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Slotless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
