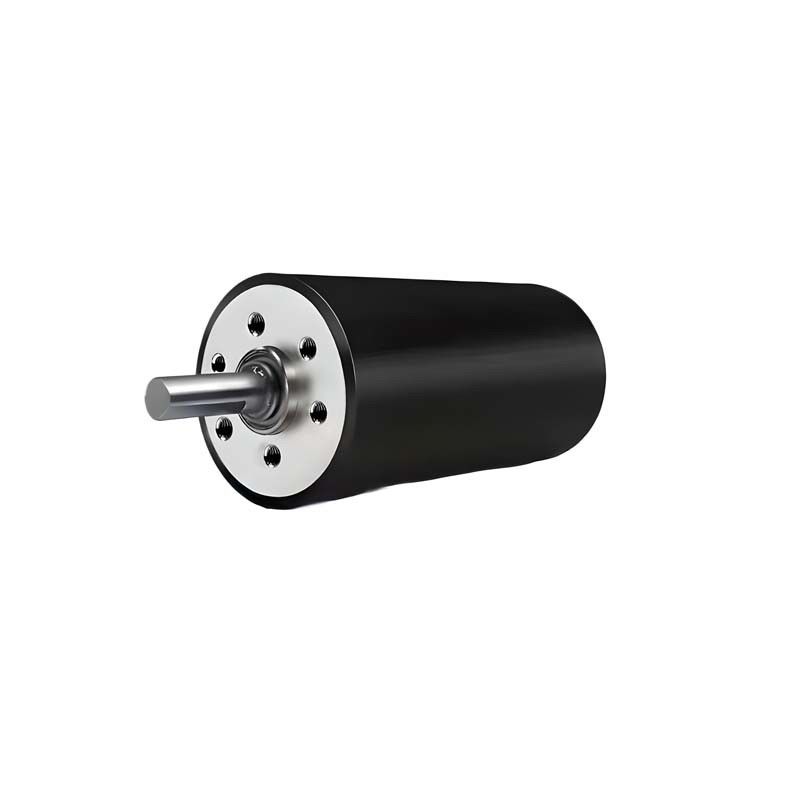

Automotive Coreless Brush DC Motor 92 Watt 35mm 4640rpm 12V High Starting Torque
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE3571 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | 35mm Brush Motor | Rated Torque:: | 190mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 12V To 48V DC Or Customized | Applicaiton Field: | Motorized Golf Caddy, Electric Shawarma Knife, Turkish Kebab Knife, Doner Kebab Meat Slicer, Electric Strapping Machine |
| Warranty: | 2 Years | Motor Dimension: | 35mm (motor Diameter)*71mm (body Length) |
| Highlight: | Automotive Coreless Brush DC Motor,High Torque Coreless Brush DC Motor,High Starting Torque 12v Brushed Motor |
||
Product Description
35mm Coreless DC Motor 92 Watt 4640rpm 12V to 48V DC Micromotor Customizable
Product Tag: 35mm Electric Motor, 35mm Brush Motor, 35mm Micro Motor, 35mm Micromotor, 35mm Brushed Motor, 35mm DC Motor, 35mm Coreless Motor, 35mm Brush DC Motor, 35mm Coreless DC Motor, 35mm DC Coreless Motor, 35mm Brushed DC Motor
- Slotless or coreless windings are integral to the functionality of our precision coreless brush motors (micro motors).
- Our design incorporates a symmetrical winding, commutator, and motor shaft, ensuring smooth and stable operation while effectively minimizing vibrations.
- These brush motors provide various advantages, including low inertia for rapid acceleration, high efficiency, the absence of cogging, and reliable linear output performance. They are also highly efficient in speed regulation and servo applications.
- Our selection of slotless brushed motors ranges from 8 mm to 40 mm in diameter, with the ability to accommodate custom sizes and specifications.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø35mm Coreless motor
- Motor Dimension: 35mm (motor diameter)*71mm (body length)
- Rated Voltage: 12V to 48V DC or Customized
- Rated Torque: 190mNm or Customized
- Rated Speed: 4640rpm to 6800rpm or Customized
- Rated Power: 92W or Customized
- Can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Slotless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
