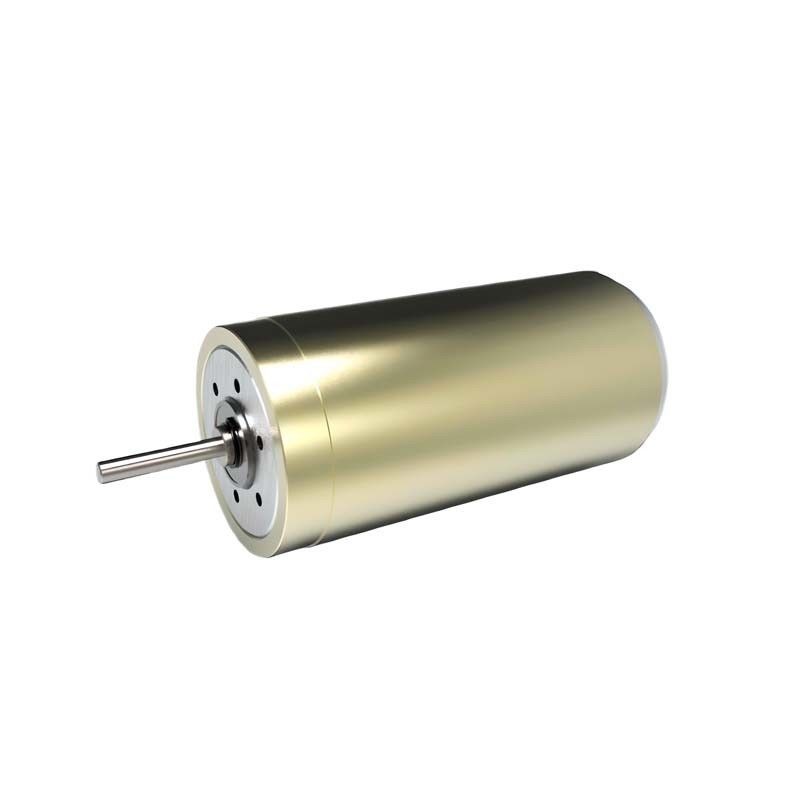

High Speed 35mm Brushed DC Motor MAXON RE35 92 Watt 4640rpm 48V
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE3571 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | 35mm Brushed Motor | Rated Torque:: | 190mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 12V To 48V DC Or Customized | Applicaiton Field: | Motorized Golf Caddy, Electric Shawarma Knife, Turkish Kebab Knife, Doner Kebab Meat Slicer, Electric Strapping Machine |
| Warranty: | 2 Years | Motor Dimension: | 35mm (motor Diameter)*71mm (body Length) |
| Highlight: | 35mm Brushed DC Motor,High Speed Brushed DC Motor,High Speed Brushed DC Gear Motor |
||
Product Description
35mm Brush DC Motor Alternative to MAXON RE35 Coreless Motor 92 Watt 4640rpm 12V to 48V Customizable
Product Tag: 35mm Electric Motor, 35mm Brush Motor, 35mm Micro Motor, 35mm Micromotor, 35mm Brushed Motor, 35mm DC Motor, 35mm Coreless Motor, 35mm Brush DC Motor, 35mm Coreless DC Motor, 35mm DC Coreless Motor, 35mm Brushed DC Motor
- Slotless or coreless windings are super important for our precision coreless brush motors (micro motors).
- We’ve designed them with a symmetrical winding, commutator, and motor shaft, which means they run really smoothly and keep vibrations low.
- These brush motors have a bunch of great features, like low inertia for quick starts, high efficiency, and no cogging, plus they provide steady output. They’re awesome for speed regulation and servo tasks too!
- Our selection of slotless brushed motors ranges from 8 mm to 40 mm in diameter, and we can totally customize sizes if you need something special!
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø35mm Coreless motor
- Motor Dimension: 35mm (motor diameter)*71mm (body length)
- Rated Voltage: 12V to 48V DC or Customized
- Rated Torque: 190mNm or Customized
- Rated Speed: 4640rpm to 6800rpm or Customized
- Rated Power: 92W or Customized
- Can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Slotless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
