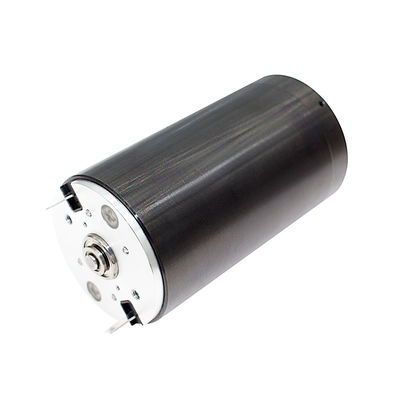

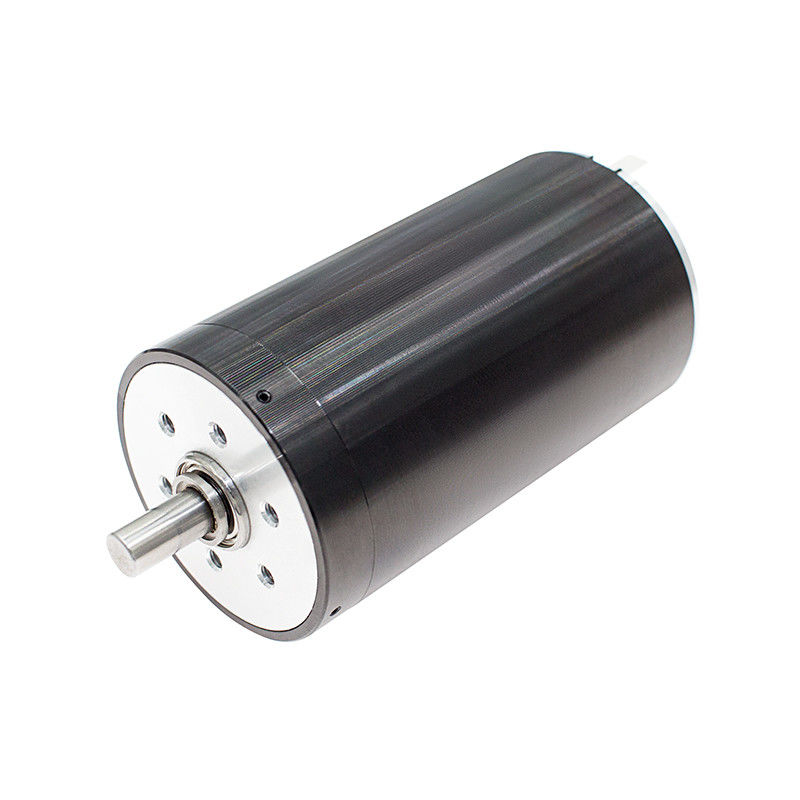

Energy Saving 35mm Coreless Brush Motor 92 Watt 4640rpm 12V Electric DC Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE3571 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | 35mm Coreless DC Motor | Rated Torque:: | 190mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 12V To 48V DC Or Customized | Applicaiton Field: | Motorized Golf Caddy, Electric Shawarma Knife, Turkish Kebab Knife, Doner Kebab Meat Slicer, Electric Strapping Machine |
| Warranty: | 2 Years | Motor Dimension: | 35mm (motor Diameter)*71mm (body Length) |
| Highlight: | 35mm Coreless Brush Motor,4640rpm Coreless Brush Motor,12V Electric DC Motor |
||
Product Description
35mm Coreless Brush Motor Alternative to MAXON RE35 Electric DC Motor 92 Watt 4640rpm 12V to 48V Customizable
Product Tag: 35mm Electric Motor, 35mm Brush Motor, 35mm Micro Motor, 35mm Micromotor, 35mm Brushed Motor, 35mm DC Motor, 35mm Coreless Motor, 35mm Brush DC Motor, 35mm Coreless DC Motor, 35mm DC Coreless Motor, 35mm Brushed DC Motor
- Slotless or coreless windings play a crucial role in the precision coreless brush motor (micro motors) we offer.
- Our integrated design includes a symmetrical winding, commutator, and motor shaft, ensuring smooth and stable operation while minimizing vibration.
- These brush motors deliver several advantages, such as low inertia for quick acceleration, high efficiency, no cogging, and consistent linear output performance. They are also highly effective in speed regulation and servo applications.
- Our collection of slotless brushed motors ranges from 8 mm to 40 mm in diameter, and we can readily accommodate custom sizes and specifications.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø35mm Coreless motor
- Motor Dimension: 35mm (motor diameter)*71mm (body length)
- Rated Voltage: 12V to 48V DC or Customized
- Rated Torque: 190mNm or Customized
- Rated Speed: 4640rpm to 6800rpm or Customized
- Rated Power: 92W or Customized
- Can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Slotless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
