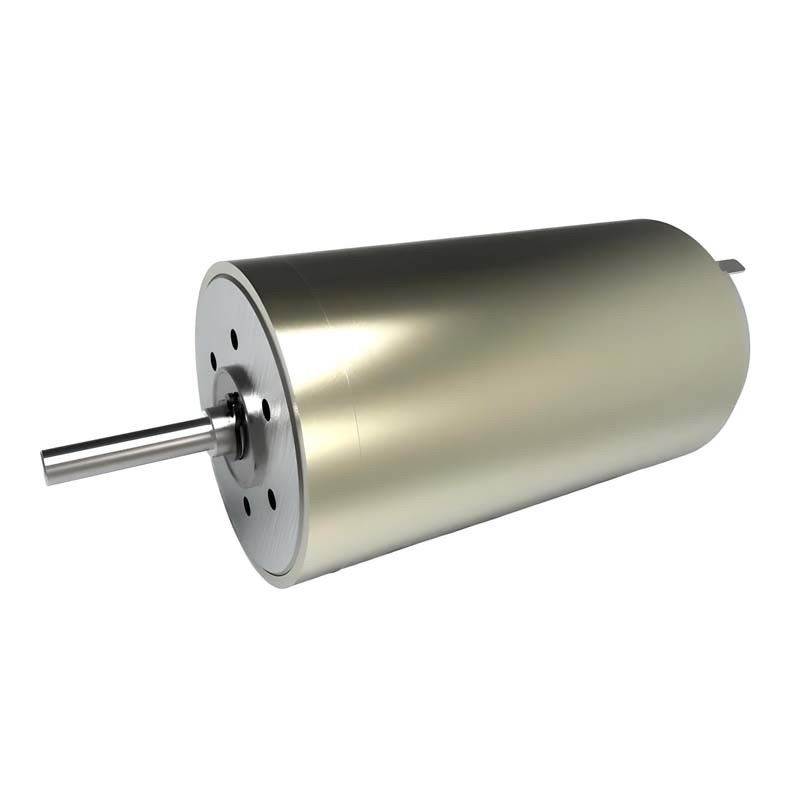

40mm Coreless DC Motor 137 Watt 7000rpm 9V Compact Energy Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE4071 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | 40mm Brushed DC Motor | Rated Torque:: | 220mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 12V To 48V DC Or Customized | Applicaiton Field: | Motorized Golf Caddy, Electric Shawarma Knife, Turkish Kebab Knife, Doner Kebab Meat Slicer, Electric Strapping Machine |
| Warranty: | 2 Years | Motor Dimension: | 40mm (motor Diameter)*71mm (body Length) |
| Highlight: | 40mm Coreless DC Motor,Compact Coreless DC Motor,Energy Efficiency Brush DC Motors |
||
Product Description
40mm Coreless DC Motor 137 Watt 7000rpm 9V to 48V Customizable Brush Motor
Product Tag: 40mm Electric Motor, 40mm Brush Motor, 40mm Micro Motor, 40mm Micromotor, 40mm Brushed Motor, 40mm DC Motor, 40mm Coreless Motor, 40mm Brush DC Motor, 40mm Coreless DC Motor, 40mm DC Coreless Motor, 40mm Brushed DC Motor
- Did you know that slotless or coreless windings are super important in our precision coreless brush motors (micro motors)? We’ve designed them with a symmetrical winding, commutator, and motor shaft, which helps them run smoothly and keeps vibrations low.
- These brush motors offer some amazing benefits, like low inertia for quick starts, high efficiency, and no cogging, plus they provide consistent output. They’re also fantastic for speed regulation and servos!
- Our collection of slotless brushed motors ranges from 8 mm to 40 mm in diameter, and we can definitely create custom sizes if you need something specific!
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø40mm Coreless motor
- Motor Dimension: 40mm (motor diameter)*71mm (body length)
- Rated Voltage: 9V to 48V DC or Customized
- Rated Torque: 220mNm or Customized
- Rated Speed: 5050rpm to 7000rpm or Customized
- Rated Power: 137W or Customized
- Can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Slotless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
