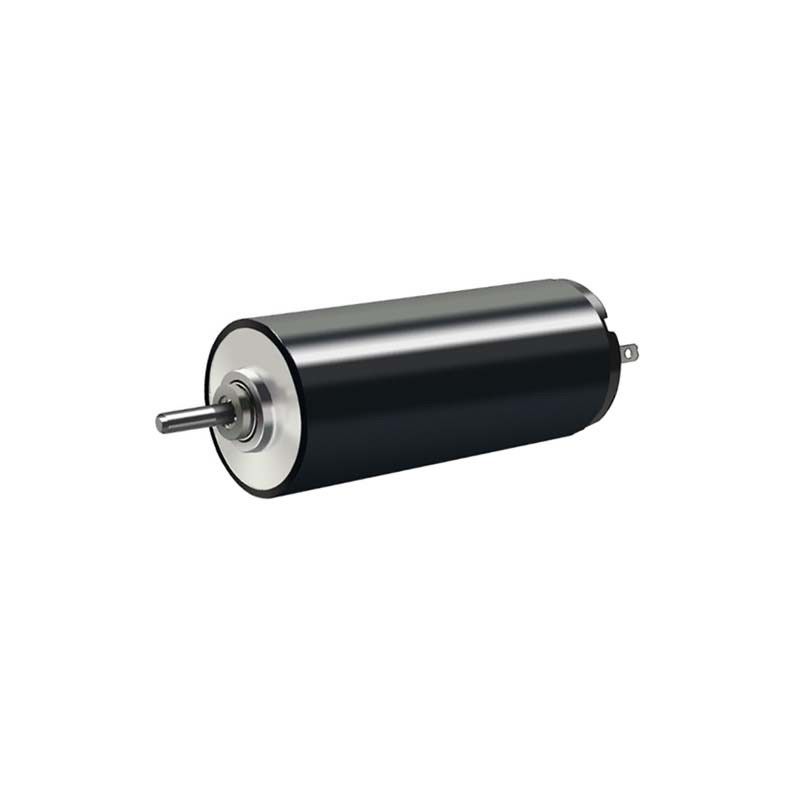

Low Noise 13mm DC High RPM Brushed Motor 2.5mNm 10800rpm 3V Space Saving
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE1335 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 22 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | Coreless Motor | Rated Torque:: | 2.5mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 3V To 24V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment And Devices, Healthcare Products, Automotive, Robotics, And Industrial Automation |
| Warranty: | 2 Years | Motor Dimension: | 13mm (motor Diameter)*35mm (body Length) |
| Highlight: | DC High RPM Brushed Motor,Low noise High RPM Brushed Motor,Space Saving Small Brushed Motor |
||
Product Description
13mm DC Motor Coreless Brush Type 2.5mNm 10800rpm 3V to 24V Customizable
Product Tag: 13mm Electric Motor, 13mm Brush Motor, 13mm Micro Motor, 13mm Micromotor, 13mm Brushed Motor, 13mm DC Motor, 13mm Coreless Motor, 13mm Brush DC Motor, 13mm Coreless DC Motor, 13mm DC Coreless Motor, 13mm Brushed DC Motor
-
Discover the innovation of Coreless windings that power our precision DC Coreless Motors (Micro Brush DC Motor)!
- With a cutting-edge integrated design featuring a symmetrical winding, commutator, and motor shaft, our motors deliver unmatched smoothness and stability with minimal vibrations.
- Experience the advantages of Coreless DC Motors: rapid acceleration thanks to low inertia, exceptional efficiency, zero cogging, and linear output performance. Plus, they shine in speed regulation and servo applications!
- Choose from our diverse range of DC Coreless Motors, available in diameters from 8 mm to 40 mm, and enjoy the flexibility of custom dimensions tailored to your needs!
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø13mm Coreless DC motor
- Motor Dimension: 13mm (motor diameter)*35mm (body length)
- Rated Voltage: 3V to 24V DC or Customized
- Rated Torque: 2.5mNm or Customized
- Rated Speed: 10000rpm to 10800rpm or Customized
- Rated Power: 2.8 W or Customized
- Brushed DC Motor can be assembled with gearboxes, brakes and encoders.
To see the product catalogue on our Coreless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
