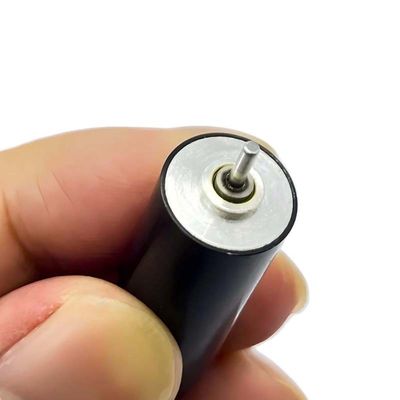

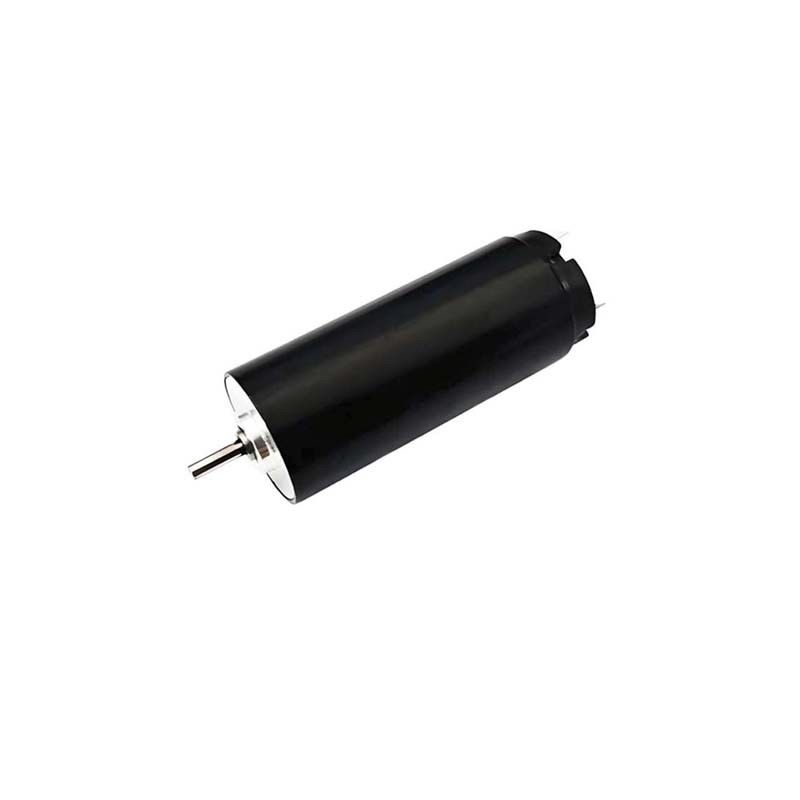

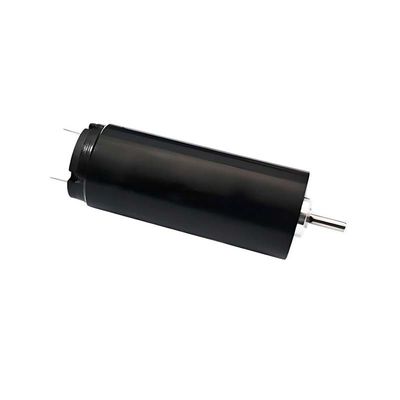

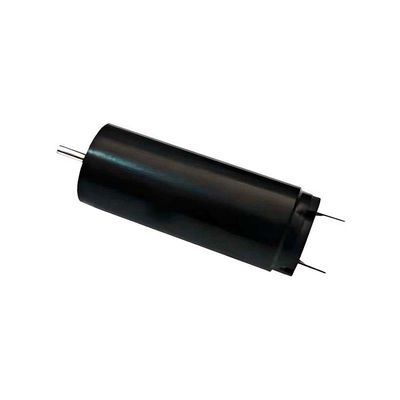

Customizable Brushed DC Motor With Coreless Winding 13mm 1.32mNm 8400rpm 15V
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE1322 Brushed Motor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 22 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | Coreless DC Motors | Rated Torque:: | 1.32mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 3V To 15V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment, Industrial Automation Fields. |
| Warranty: | 2 Years | Motor Dimension: | 13mm (motor Diameter)*22mm (body Length) |
| Highlight: | Customizable Brushed DC Motor,Coreless Winding Brushed DC Motor,Coreless Winding Micro Brushed Motor |
||
Product Description
13mm Brush Motor with Coreless Winding 1.32mNm 8400rpm 3V to 15V Customizable
Product Tag: 13mm Electric Motor, 13mm Brush Motor, 13mm Micro Motor, 13mm Micromotor, 13mm Brushed Motor, 13mm DC Motor, 13mm Coreless Motor, 13mm Brush DC Motor, 13mm Coreless DC Motor, 13mm DC Coreless Motor, 13mm Brushed DC Motor
-
Coreless windings are integral to our precision DC Coreless Motors (Micro Brush DC Motor).
- The motors boast an integrated architecture featuring a symmetrical winding, commutator, and motor shaft, which collectively ensure smooth operation and reduced vibration levels.
- Benefits of Coreless DC Motors include low inertia facilitating rapid acceleration, high operational efficiency, elimination of cogging, and linear output characteristics. Furthermore, they demonstrate outstanding performance in speed regulation and servomechanism applications.
- Our portfolio of DC Coreless Motors spans diameters from 8 mm to 40 mm, and we can readily adapt to custom specifications.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this 13mm Electric Motor / Brush Coreless Motor
- Motor Dimension: 13mm (motor diameter)*22mm (body length)
- Rated Voltage: 3V to 15V DC or Customized
- Rated Torque: 1.32mNm or Customized
- Rated Speed: 7050rpm to 8400rpm or Customized
- Rated Power: 1.16W or Customized
- Can be assembled with gearboxes, brakes and encoders
To see the product catalogue on our Coreless Brush Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
